Custom speaker location 126

I have an 86 126 with the old 4 speaker system. I am looking to put an awesome stereo in it, but it seems that a 4 in the dash is not the greatest location or size, hindering the "awesomeness" of the system. Is there a good place I could put a 6.5 component system? I thought about custom kick panels, but the the e-brake pedal is in the way on the driver's side. The only other thing I can think of is cutting out a place on the doors. I see that the 91 560SELs (at least) had the 10 speaker system and a speaker grille on the rear part of the front door. I guess I could try to find some door panels of a 126 with this setup, or like stated before, just cut holes...either there or farther up on the door. Any thoughts on this would be appreciated. Thanks.
__________________
'86 420SE Euro
904 Midnight Blue, Gray Velour
Dad bought it new, now I own it.

"A Mercedes-Benz is like a fine wine, it only gets better with age."
Reply With Quote
  #2
Old 01-30-2003, 01:27 AM
zla39fj's Avatar
Teach me something

Join Date: Nov 2002
Location: Visalia, Ca.
Posts: 140
Put the saw down and step away from the car. Are you in a great hurry to upgrade you system or are you willing to spend a few weekends learning to fabricate with fiberglass? There are several websites that will teach you to work with fiberglass, believe me it is not hard but it does take a little practice. I had the same problem with the e-brake pedal on a 1978 MB 280 a few years ago. I had a friend cut it and weld in an extension that moved it over 3 inches and angle it up. That was rather extreme but it worked great. Then I put Infinity 5.25 seperates in custom made kick panels. I put Oz 8" subs in the front doors in custom made door panels but I had to cut the door panels to do it. The only thing I regret was cutting the doors for the subs. If you are interested in 'glassing I would be glad to point out the better sites for you to check out.
__________________
1986 420SEL. 200,000 miles plus.
1991 Cutlass Supreme
1980 VW Vanagon (Old Smokey)
Reply With Quote
  #3
Old 01-30-2003, 10:01 AM
Registered User

Join Date: Feb 2002
Location: Orlando, FL
Posts: 788
I'm not cutting anything anytime soon if I do it at all!! That is why I am doing my homework. With the kickpanels, if I went that route, I think I would let a pro do it. I'm not sure I want to twist my e-brake pedal every which direction, though. What did you think about the idea of getting some door panels from the 10 speaker system? The only reservation I have about that is that the speakers are at the back of the door....is that the best location? Looks like it would be playing music into my a$$...not exactly the optimal place!! Or...I could just keep it simple and put 4s in the dash...do you think I could get a more-than-just-adequate stereo with that setup? Nak, MB Quarts, PG amp? Thanks for your help.
__________________
'86 420SE Euro
904 Midnight Blue, Gray Velour
Dad bought it new, now I own it.

"A Mercedes-Benz is like a fine wine, it only gets better with age."
Reply With Quote
  #4
Old 01-30-2003, 12:20 PM
300SDL
Guest

Posts: n/a
I am also interested in this, I am planning on Putting my component speakers into the Door panels, do you guys have any suggestions to go about doing this? thanks
Reply With Quote
  #5
Old 01-30-2003, 05:20 PM
zla39fj's Avatar
Teach me something

Join Date: Nov 2002
Location: Visalia, Ca.
Posts: 140
The closer to the listener a speaker is, the more dominate it will sound all other factors being equal. Proper alignment of speakers in the factory locations will improve stereo image and staging. If you use 4" seperates in custom made kicks you can avoid the e-brake extreme I described earlier. You can do it yourself with a little practice and patience. Door pods are even easier and would be a great place for 6.5" midbass drivers. If you let the pros do it you will pay around $350 for a set of kicks if QForms does not make a model for your vehicle. I made kicks for several friends for the cost of supplies and a case of Corona (proof of a Divine presence) because it is easy and fun.
__________________
1986 420SEL. 200,000 miles plus.
1991 Cutlass Supreme
1980 VW Vanagon (Old Smokey)
Reply With Quote
  #6
Old 02-04-2003, 11:47 PM
300SDL
Guest

Posts: n/a
do you have any pics of the work that you have done?
Reply With Quote
  #7
Old 02-05-2003, 02:17 PM
zla39fj's Avatar
Teach me something

Join Date: Nov 2002
Location: Visalia, Ca.
Posts: 140
I will post pics of my next install starting in April. I have not installed anything in any car since I moved to California from Hawaii in September.
__________________
1986 420SEL. 200,000 miles plus.
1991 Cutlass Supreme
1980 VW Vanagon (Old Smokey)
Reply With Quote
  #8
Old 02-23-2003, 10:29 PM
ned2683's Avatar
Registered User

Join Date: Oct 2001
Posts: 693
just an idea. well in my other car i bought these out door lawn light holders. i got them from home depot, and they look like simple door pods, they were around 15 bucks a pair. and u can mount the speaker mount onto it. so it can fit a 6.5 component one (i had a 5.25 component in there). i screwed it to the door panel. but if u don't want to make holes in your doors, then u can velcro the back to the door. just a suggestion. the material cost 15 bucks and it sounded nice. just my idea of poor-man's door pods
Reply With Quote
  #9
Old 05-27-2003, 04:30 PM
300SDL
Guest

Posts: n/a
ZLA, just wondering, have you done any work to date?
Reply With Quote
  #10
Old 05-27-2003, 06:51 PM
zla39fj's Avatar
Teach me something

Join Date: Nov 2002
Location: Visalia, Ca.
Posts: 140
300SDL
Been really busy doing minor installs for my new relatives. Nothing major but they appreciate free labor just as much as the next person. One good thing has come out of it though, they got me a 1980 VW Vanagon in great shape and absolutely no stereo in it. This will be my first install in a rolling house. If you can teach me to put pictures on the web I would love to show you my install step by step.
__________________
1986 420SEL. 200,000 miles plus.
1991 Cutlass Supreme
1980 VW Vanagon (Old Smokey)

Last edited by zla39fj; 05-27-2003 at 07:56 PM.
Reply With Quote
  #11
Old 05-27-2003, 09:05 PM
MTI's Avatar
MTI MTI is offline
Registered User

Join Date: Nov 2002
Location: Scottsdale, Arizona
Posts: 10,626
Don't blow off the 4" speakers in the dash quite yet . . . just replace them with Infinity or MB Quarts, filter out the bass to avoid distortion . . . put 6.5" co-axials in the rear deck, then put a sub enclosure in the trunk, ported through the rear deck.
Reply With Quote
  #12
Old 05-28-2003, 11:15 AM
300SDL
Guest

Posts: n/a
when you post a reply scroll down to where it says attach file you should be able to do it right through there, is this what you meant? thanks,
bob
Reply With Quote
  #13
Old 05-28-2003, 10:05 PM
zla39fj's Avatar
Teach me something

Join Date: Nov 2002
Location: Visalia, Ca.
Posts: 140
300SDL
O.K., I will pick up a digital camera tonight (Wednesday) and I can post the first set of pictures Sunday. Be advised that this install will be in a 1980 VW Vanagon but the principles will be the same for virtually any other car. Thank you for the interest. Now I have a wife proof excuse to work on one of my own cars
__________________
1986 420SEL. 200,000 miles plus.
1991 Cutlass Supreme
1980 VW Vanagon (Old Smokey)
Reply With Quote
  #14
Old 05-29-2003, 10:20 AM
Registered User

Join Date: Apr 2003
Posts: 26
I agree w/MTI

I just opened the dash to handle 5.25" cdt audio coaxials, which sound amazing. Their 4" coaxial model will be available any day now, which I'll put in my rear doors (87 300td). These are both less than $90/pr. I got the 5.25's off ebay for $35, new. CDT also makes a component 4" system for about $270/pr. where you could mount the tweeter on the dash or pillar. One pair of these up front and a good sub would probably be amazing. You will want to add a 4ch bridged to 3ch for the speakers or some like set-up. No cutting or fabricating, amazing sound.
Reply With Quote
  #15
Old 06-01-2003, 04:42 AM
zla39fj's Avatar
Teach me something

Join Date: Nov 2002
Location: Visalia, Ca.
Posts: 140

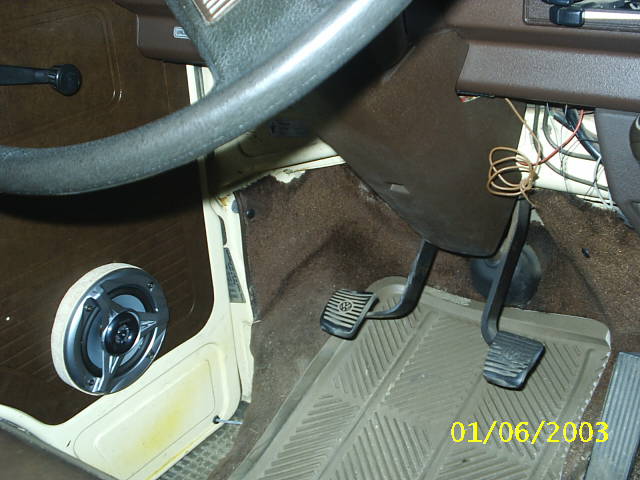

This is a shots of a targeted area of a new sound system in my VW Vanagon. I know this is not a Mercedes but what I am about to do can be applied to virtually any car with a few minor modifications. Notice that my front stage consists of a set of 5.25" coaxials one each in the front doors. The problem that I have noticed is that most of the midrange and higher frequencies are directed at my calves. By constructing kick panels and aiming the speakers at their intended audience I can get a better sound with less power applied. The holes in each door will be filled with a midbass driver and between the front seats I will put an amplifier rack that will also provide storage to compensate for the glove compartment that I plan to remove. Hopefully I will learn how to attatch more than one image to a post so that I can cover several steps in one post.
Attached Thumbnails
Custom speaker location 126-s2010018.jpg
__________________
1986 420SEL. 200,000 miles plus.
1991 Cutlass Supreme
1980 VW Vanagon (Old Smokey)

Last edited by zla39fj; 06-01-2003 at 04:54 PM.
