Fixing rear seat springs in 1985 300td

I created this post elsewhere in June of 2007 and I decided to post it here to make linking it easier.


-------------------------------------------------------



I read every thread I could find about fixing the sag in my rear seat springs. The threads only mention the front seats, so I thought they should be at least similar.

The difference is that the back seat bottoms are coil springs so the pool noodle fix was out, as was the metal tubing and bailing wire fix. After some research I found that upholstery shops stuff cloth into the coils to stiffen them up. I found this to be inadequate, so I tried cutting some poly foam into thick strips and weaving them in between the coils. I then put a piece of foam under the horse hair mat (A thorough spray down with Febreeze got rid of the funky smell in the mat).

The seat cover has ribs that are shaped by felt and foam strips inside. the ribs on my seat looked flat and stretched out because the muslin underneath was shredded. I had to stitch a new piece of muslin inside to reinforce the ribs. The seat now looks and feels amazing.

I am just waiting for a set of hog ring pliers and rings to arrive so I can put it back together properly.

I only did this to the rear right seat so far. I am doing the rear left next and expect to finish it in 1-2 hours now that I know how to approach it and what supplies to have at hand.

There may be better fixes for this problem, but in my case, I had all the supplies laying around (except hog ring clips and pliers for $18.99 from JC Whitney) so it was basically a free fix.

Very satisfying! I will post a few pics when complete.


covering the shredded muslin liner.

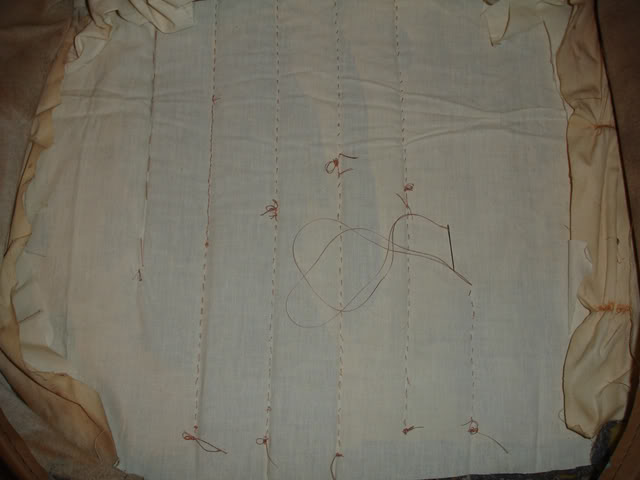

new muslin sewn in.

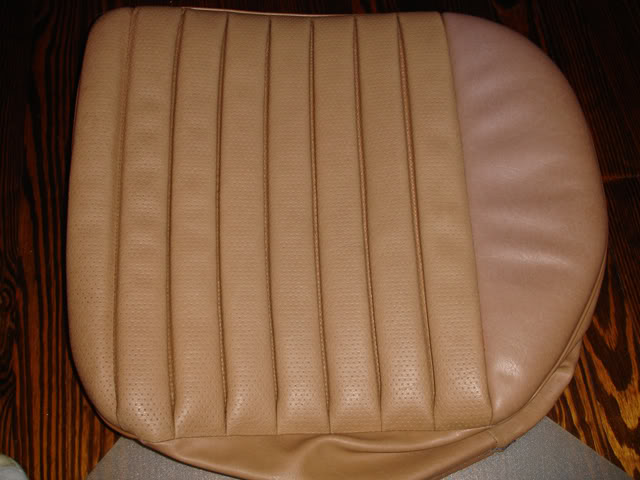

fixed seat cover.


seat springs stuffed with high density foam.


ready to relace the skins.


hog ring pliers to hold seat skins to seat frame.


clips in place.


finished seat.

This project was simple and made a big difference. I can now use a baby seat since the car seat is firm enough to support it.

If you do this method of repair, I would suggest that you test fit the seat in the car before putting the clips and skin on. If you overstuff the springs, you will lose headroom for your passengers. Luckily, I thought to test fit and had to remove some stuffing. Everything is great now. I hope this helps someone out there.

I also welcome any comments of other ways to do this. I know there is a way to use supplemental coil springs, but I chose this way since it cost me very little.

Thanks,
Chad
Attached Thumbnails
Fixing rear seat springs in 1985 300td-shreddedmuslin.jpg   Fixing rear seat springs in 1985 300td-newmuslin.jpg   Fixing rear seat springs in 1985 300td-fixseatcover.jpg   Fixing rear seat springs in 1985 300td-stuffedseat.jpg   Fixing rear seat springs in 1985 300td-readyforskins.jpg

__________________
Chad
1985 300CD - "Gladys" - 255,XXX miles - (702) Smoke Silver Metallic - (154) Java MB-Tex
(Off the road for full restoration)
2005 Dodge Magnum SXT AWD | 1998 Acura 3.0 CL | 1993 Acura Vigor GS
OBK#44
"Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.)

SOLD
1985 300TD - Red Dragon
1986 300SDL - Coda
1991 - 300TE
1995 - E320

Last edited by whunter; 12-26-2009 at 01:12 PM. Reason: attached pictures
Reply With Quote
  #2
Old 02-25-2009, 07:26 AM
Registered User

Join Date: Jan 2006
Location: Tucson, AZ
Posts: 2,533
Nice job! Most Ace Hardware stores also carry the hog ring pliers.

Of course, to really do the job right you should have arranged the different colored foam into a Mercedes star!
Reply With Quote
  #3
Old 02-25-2009, 10:38 PM
rg2098's Avatar
Detailing Moderator

Join Date: Jun 2004
Location: Rochester Hills, MI
Posts: 2,408
Beautiful write-up!
__________________
Adam Lumsden

(83) 300D
(87) 190E 2.3-16
(67) Jaguar 420
(23) Willys Knight 64 Touring
(15) Model T
(11) Chevrolet Cruze Eco
(98) GMC C3500 Diesel

(80) 450SL - sold
(71) 250/8 - sold
(83) 380SEL - scrapped

Vice-President of the MBCA International Stars Section
Web Content Manager for MBCA National Business Office.
Reply With Quote
  #4
Old 02-26-2009, 09:04 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,156
So, Chad, was the foam not there originally? I wonder how long that will last? Where do you get memory foam? This is the stuff like the Tempurpedic mattresses have in them?
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
Reply With Quote
  #5
Old 02-26-2009, 09:05 AM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,156
Quote:
Originally Posted by Mike D View Post
Nice job! Most Ace Hardware stores also carry the hog ring pliers.

Of course, to really do the job right you should have arranged the different colored foam into a Mercedes star!
Everybody is a critic . . . .
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
Reply With Quote
  #6
Old 02-26-2009, 09:11 AM
Chad300tdt's Avatar
SE PA Benz Fest 8/23/14

Join Date: May 2007
Location: North Wales, PA
Posts: 3,960
Quote:
Originally Posted by Dee8go View Post
So, Chad, was the foam not there originally? I wonder how long that will last? Where do you get memory foam? This is the stuff like the Tempurpedic mattresses have in them?
No, there wasn't any foam in the seats, just the coil springs which were so tired you would sink almost to the floor when you sat in them.

I got the foam at the local fabric store (Joann fabrics). They have an upholstery section where you can buy high density foam (like I used) and memory foam. The memory foam is much more expensive.

As far as how long it will last, I did this almost two years ago and there is no sign of wear to date. The seats still feel like they did the day I stuffed them.
__________________
Chad
1985 300CD - "Gladys" - 255,XXX miles - (702) Smoke Silver Metallic - (154) Java MB-Tex
(Off the road for full restoration)
2005 Dodge Magnum SXT AWD | 1998 Acura 3.0 CL | 1993 Acura Vigor GS
OBK#44
"Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.)

SOLD
1985 300TD - Red Dragon
1986 300SDL - Coda
1991 - 300TE
1995 - E320
Reply With Quote
  #7
Old 02-26-2009, 11:48 AM
KAdams4458's Avatar
Mmm! Diesel!

Join Date: Apr 2007
Location: Snohomish, WA
Posts: 1,418
My goodness, that is a lot of foam. That had to take a while!

I find the W123 seat springs to be an interesting topic, so I'm happy to see some wagon info discussed, even though I'm not a wagon owner.

So, the wagons used a metric butt-load of coils for the rear bottoms? The Sedans, from what I have seen, all use the kinky flat springs in the rear which would, as you suggested, benefit from the pool noodle and brake line approaches.
__________________
- K.C.Adams

'77 300D Euro Delivery
OM617 turbo / 4-speed swap
404 Milanbraun Metallic / 134 Dattel MB-Tex

Current status:
* Undergoing body work


My '77 300D progress thread

Reply With Quote
  #8
Old 02-26-2009, 03:25 PM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,156
Maybe I'll try that on my driver's seat. It's sitting pretty low now. Thanks, Chad.
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
Reply With Quote
  #9
Old 02-26-2009, 03:30 PM
Bill Wood's Avatar
Retired Webmaster

Join Date: Mar 1999
Location: Johns Creek, GA, USA
Posts: 5,013
Thumbs up It's in the Wiki

This DIY is now in the Wiki HERE.

Thanks!
__________________
Bill Wood - Retired Webmaster
My Personal Website
1998 Mercedes E430
2010 Toyota Sequoia
My Photo Albums
Reply With Quote
  #10
Old 02-26-2009, 04:00 PM
Chad300tdt's Avatar
SE PA Benz Fest 8/23/14

Join Date: May 2007
Location: North Wales, PA
Posts: 3,960
Cool, thanks Bill.
__________________
Chad
1985 300CD - "Gladys" - 255,XXX miles - (702) Smoke Silver Metallic - (154) Java MB-Tex
(Off the road for full restoration)
2005 Dodge Magnum SXT AWD | 1998 Acura 3.0 CL | 1993 Acura Vigor GS
OBK#44
"Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.)

SOLD
1985 300TD - Red Dragon
1986 300SDL - Coda
1991 - 300TE
1995 - E320
Reply With Quote
  #11
Old 02-26-2009, 04:08 PM
Dee8go's Avatar
Senor User

Join Date: Apr 2006
Location: Arlington, VA
Posts: 7,156
My god, Chad, now you've been imortalized in the pages of Wikipedia!

Is there anything else you wish to accomplish in this life?
__________________
" The market, like the Lord, helps those who help themselves. But, unlike the Lord, the market does not forgive those who know not what they do."- Warren Buffett

OBK #55

1998 Lincoln Continental - Sold
Max 1984 300TD 285,000 miles - Sold
The Dee8gonator 1987 560SEC 196,000 miles - Sold
Orgasmatron - 2006 CLS500 25,000 miles
Reply With Quote
  #12
Old 07-30-2013, 11:27 AM
Registered User

Join Date: Mar 2012
Location: Brooklyn, NY
Posts: 25
Chad:

What size hog rings did you use on your seats? I took mine out and pitched then without bothering to note their opening size (smart move!).

Thanks,

Jeffrey
Reply With Quote
  #13
Old 07-30-2013, 01:06 PM
Chad300tdt's Avatar
SE PA Benz Fest 8/23/14

Join Date: May 2007
Location: North Wales, PA
Posts: 3,960
Quote:
Originally Posted by jjtaras View Post
Chad:

What size hog rings did you use on your seats? I took mine out and pitched then without bothering to note their opening size (smart move!).

Thanks,

Jeffrey
I just got the only hog rings and pliers from JC Whitney. It's more expensive from them now, but it says the hog rings are 3/4" upholstery rings.

Newark Auto Products 401-pc. Pliers and Hog Rings Kit - JCWhitney

I also saw them for sale at Home Depot recently. They have 1/2" rings which will still work but cost less.

YARDGARD 12-1/2-Gauge Hog Rings (200-Pack)-328604B at The Home Depot

Prime-Line Hog-Ring Crimper-HR 14000 at The Home Depot
