massive fuel leak '86 300SDL

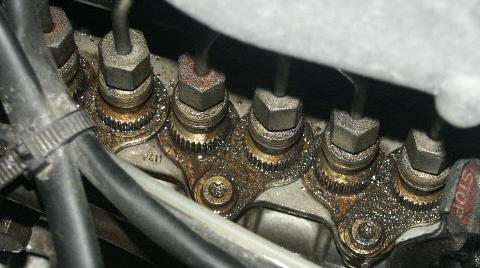

See attached picture, suddenly from the top of the fuel distributor, I'm losing at least a tablespoon a minute? Any ideas? Everything seems tight?












'86 300SDL 202,000
'91 560SEL 88,000
'94 SL500 22,800
Attached Thumbnails
massive fuel leak '86 300SDL-pict0458.jpg
__________________
jcciem
'94 SL5000 60,000
'91 350SDL 545,000
'91 350SD 197,000
'00 E55 AMG 77,000
Reply With Quote
  #2
Old 02-04-2005, 08:00 PM
engatwork's Avatar
busy

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 12,393
I'd have to see more than that. The pic is actually the top of the fuel injection pump. I would be surprised if it "suddenly" started coming from the tubing fittings that are shown. You need to look deeper in there and try to ascertain exactly where it is coming from.
__________________
Jim
Reply With Quote
  #3
Old 02-04-2005, 08:42 PM
H2O2's Avatar
Empty Vessel

Join Date: Jan 2005
Location: Ladeluftkühlerstadt
Posts: 1,429
How does it run...rough, normal or what? Are the fuel return lines (between the injectors) in good shape? Is there any fuel leakage evident near the injectors themselves? Need more info to help ya.
Reply With Quote
  #4
Old 02-04-2005, 09:18 PM
Registered User

Join Date: Nov 2000
Location: Vernon, CT
Posts: 1,848
Spray some brake cleaner or something alike, to clean that pump up. Then start the engine and see where exactly it is leaking from. Diesel is really a thin oil, and like oil, spreads. So you could have small leak that spread.
__________________
1999 MB SL500 (110,000 mi)
2004 Volvo V70 2.5T (220,000 mi)
2014 Tesla Model S 85 (136,000 mi)
MBCA member
Reply With Quote
  #5
Old 02-04-2005, 09:28 PM
Registered User

Join Date: Mar 2001
Location: Schenectady, new york
Posts: 229
There was some minor leakage from the fuel return lines, so I replaced all of them. The wet areas surrounding the fuel injectors are now dry. Vehicle runs and operates normally. I will clean up the area tommorrow and see if I can see where the flood of fuel is coming from, it really is a huge leak, the side of the engine is saturated with fuel.
__________________
jcciem
'94 SL5000 60,000
'91 350SDL 545,000
'91 350SD 197,000
'00 E55 AMG 77,000
Reply With Quote
  #6
Old 02-05-2005, 09:12 AM
Registered User

Join Date: Nov 2000
Location: Vernon, CT
Posts: 1,848
If anything, look at it as a rust preventing measure for your engine block. All kidding aside, that mess looks worse than it probably is. Here is the upshot to a diesel leak, no chance of an explosion/fire like it would be with gas.
__________________
1999 MB SL500 (110,000 mi)
2004 Volvo V70 2.5T (220,000 mi)
2014 Tesla Model S 85 (136,000 mi)
MBCA member
Reply With Quote
  #7
Old 02-05-2005, 09:41 AM
Registered User

Join Date: Apr 2003
Posts: 345
in all probablity the injector lines have cracked at the junction. Common on the 602/603 engines which have (relative to the 617 motors) flimsy fuel lines.
This is probably a result of bad motor mounts
__________________
1982 300SD (214 k, excellent shape) kidmobile running mostly biodiesel, gets 31 mpg hwy with 2.82 rear from a euro 500SEL



1976 115 body 240D 4-speed (traded for Jeep parts) - Engine lives on in my CJ7
Reply With Quote
  #8
Old 02-05-2005, 01:28 PM
Registered User

Join Date: Mar 2001
Location: Schenectady, new york
Posts: 229
I cleaned the entire area, and dried it. Inspected the fuel lines they appear to be fine no leakage at all. I start the car and within a second going from left to right 1, 3 and 5, are saturated (see attached new picture), and pouring huge amounts of fuel. I checked exiting fuel lines and they are dry, just the wet areas in the photo are soaked. The only thing keeping this from being a major fire hazard is the fact that fuel delivery is on the drivers side and the exhaust is on the passenger side.
Attached Thumbnails
massive fuel leak '86 300SDL-pict0466.jpg
__________________
jcciem
'94 SL5000 60,000
'91 350SDL 545,000
'91 350SD 197,000
'00 E55 AMG 77,000
Reply With Quote
  #9
Old 02-05-2005, 01:41 PM
Marcb's Avatar
Registered User

Join Date: Jan 2003
Location: Centralia, Washington
Posts: 351
Could possibly be one or more bad delivery valve seals too.....
__________________
--------------------------------------------
1960 MB 190Db w/ full sunroof
1985 Toyota Pickup
2006 Honda Odyssey EXL R&N
2001 VW Jetta GLS TDI
Reply With Quote
  #10
Old 02-07-2005, 07:34 PM
Registered User

Join Date: Mar 2001
Location: Schenectady, new york
Posts: 229
It doesn't matter any more what was leaking. Apparently at highway speeds the fuel leak was adequate to travel to the exhaust where it resulted in a massive fire, there's nothing left to the car, even the tires were reduced to ash in minutes. It's just a cooked piece of metal. Thanks anyway.
__________________
jcciem
'94 SL5000 60,000
'91 350SDL 545,000
'91 350SD 197,000
'00 E55 AMG 77,000
Reply With Quote
  #11
Old 02-07-2005, 08:06 PM
Banned

Join Date: May 2002
Location: Blue Point, NY
Posts: 25,396
This is one of those posts that you read and are simply too shocked to respond.

I realize that nothing can make you feel any better about the situation but, I trust that nobody was injured, which is the most important thing.

I never would have believed that a leak that you described could be severe enough to reach the exhaust.

My heartfelt condolonces on the loss of the vehicle.
Reply With Quote
  #12
Old 02-07-2005, 08:14 PM
dieseldiehard's Avatar
Dieseldiehard

Join Date: Oct 2002
Location: Bay Area No Calif.
Posts: 4,281
good God! I feel badly, this is cause for a wake.
I would never have guessed the words massive were indeed massive, but that must have been a realistic choice of words, in which case you should have - - - Oh forget it it a lesson for the rest of us.
__________________
'00 E320 (wifes car), '95 E320 Wagon my favorite road car. '99 E300D wolf in sheeps body, '87 300D Sportline suspension, '79 300TD w/ 617.952 engine at 367,750 and counting!
Reply With Quote
  #13
Old 02-07-2005, 09:29 PM
Registered User

Join Date: Nov 2003
Location: California
Posts: 37
Smile Injector leak

I have replaced the o-rings (seals) on the above. Not a hard thing to do. It solved the proble. Here in CA we have a low sufler fuel and it does not work with older seals. Change them and I bet your problem is solved.
R. Ragno
Reply With Quote
  #14
Old 02-07-2005, 11:02 PM
dieseldiehard's Avatar
Dieseldiehard

Join Date: Oct 2002
Location: Bay Area No Calif.
Posts: 4,281
But Ron, read the thread, man! His car is history!!!!!
I sure hope insurance covers it!
__________________
'00 E320 (wifes car), '95 E320 Wagon my favorite road car. '99 E300D wolf in sheeps body, '87 300D Sportline suspension, '79 300TD w/ 617.952 engine at 367,750 and counting!
Reply With Quote
  #15
Old 02-08-2005, 09:43 AM
WANT '71 280SEL's Avatar
I'll Go Upside Your Head!

Join Date: Jan 2003
Location: Dallas, TX
Posts: 3,378
Man, I really feel bad. I know you don't want to ehar this but the o-rings and seals that need replaced on your acr are under $9.

David
