How big a problem is a prechamber leak?

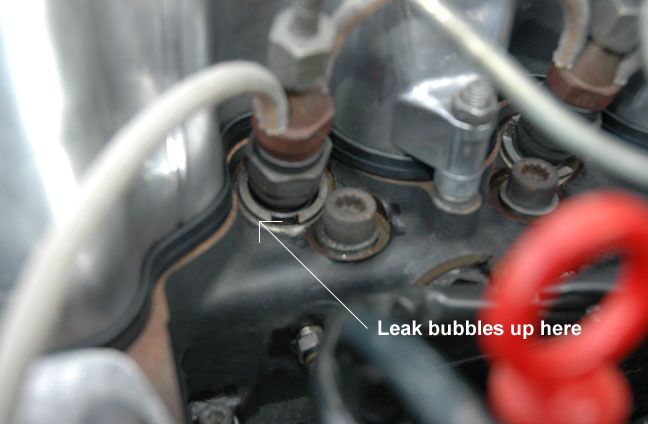

I noticed yesterday that there are small, bubbling leaks around the base of two of my injectors. The bubbles were popping up at the outside threads of what looks like an insert that the injector threads into. (Is that the collar?) The injectors themselves appear dry, so I do not think it is a leak in the return lines. I harvested a photo from an existing thread and put in an arrow to show the origin of the leak.

A search for "prechamber leak" shows lots of threads on this problem, removal of the collar and the prechamber, etc. But I got little indication on how severe a problem this is. Since my engine currently runs fine, can I just ignore this for now or is it a problem that is going to worsen or become harder to eventually fix?
Attached Thumbnails
How big a problem is a prechamber leak?-dsc_0003a.jpg
__________________
1985 300SD, 203,000 miles, dark blue

Lil Sarah says: "Poor old Grandma Blue Car...She's sad."
Reply With Quote
  #2
Old 02-22-2005, 07:30 PM
Johnhef's Avatar
Senior Member

Join Date: Feb 2005
Location: Frederick, Md
Posts: 4,540
My 240 does the same. May make it knock a little more than usual. Just pull the injectors and replace the "seats"

JH
__________________


1980 500SE/AMG Euro
1981 500SEL Euro
1982 380SEL
1983 300TD
1983 500SEC/AMG Euro
1984 500SEC
1984 300TD Euro
1986 190E 2.3-16
1986 190E 2.3
1987 300D
1997 C36 AMG
2003 C320T 4matic

past: 1969 280SE 4.5 | 1978 240D | 1978 300D | 1981 300SD | 1981 300SD | 1982 300CD | 1983 300CD | 1983 300SD | 1983 380SEC | 1984 300D | 1984 300D | 1984 300TD | 1984 500SEL | 1984 300SD | 1985 300D | 1986 300E | 1986 560SEL | 1986 560SEL/Carat | 1987 560SEC | 1991 300D 2.5 | 2006 R350
Reply With Quote
  #3
Old 02-22-2005, 07:30 PM
Johnhef's Avatar
Senior Member

Join Date: Feb 2005
Location: Frederick, Md
Posts: 4,540
oops, sorry. scratch that, i just looked at your picture...
__________________


1980 500SE/AMG Euro
1981 500SEL Euro
1982 380SEL
1983 300TD
1983 500SEC/AMG Euro
1984 500SEC
1984 300TD Euro
1986 190E 2.3-16
1986 190E 2.3
1987 300D
1997 C36 AMG
2003 C320T 4matic

past: 1969 280SE 4.5 | 1978 240D | 1978 300D | 1981 300SD | 1981 300SD | 1982 300CD | 1983 300CD | 1983 300SD | 1983 380SEC | 1984 300D | 1984 300D | 1984 300TD | 1984 500SEL | 1984 300SD | 1985 300D | 1986 300E | 1986 560SEL | 1986 560SEL/Carat | 1987 560SEC | 1991 300D 2.5 | 2006 R350
Reply With Quote
  #4
Old 02-23-2005, 09:30 AM
dannym's Avatar
I'm not here

Join Date: Oct 2004
Location: Deltona, Florida
Posts: 2,360
Hey,
I had the same exact problem. I took the injector out. Took it apart and cleaned it real good and put it back in.
Also remember to replace the brass heat shield too.
Find out how much torque the injectors take, it's not that much but I can't remember right now.
After putting it back in the leak stopped. Also if they are the original injectors don't buy a replacement. You'll wind up with an inferior "Made in India" injector.

Edit: Sorry I just remembered my injector was leaking from the middle where it screws together. You may want to double check that. Remove the rubber boot if you have one and take a good look.

Danny
__________________
1984 300SD Turbo Diesel 150,000 miles

OBK member #23

(\__/)
(='.'=) This is Bunny. Copy and paste bunny into your
(")_(") signature to help him gain world domination
Reply With Quote
  #5
Old 12-31-2005, 05:57 AM
bgkast's Avatar
Rollin' on 16s

Join Date: Dec 2005
Location: Vancouver WA
Posts: 6,528
I'm interested to know the answer to this question too. Any body know if it is harmful?
__________________
1979 240D- 316K miles - VGT Turbo, Intercooler, Stick Shift, Many Other Mods - Daily Driver

1982 300SD - 232K miles - Wife's Daily Driver

1986 560SL - Wife's red speed machine
Reply With Quote
  #6
Old 12-31-2005, 12:11 PM
79-240d-project's Avatar
Registered User

Join Date: Oct 2003
Location: Pacific Northwest, Washington State
Posts: 252
I had one doing that. I used a punch on the slotted nut that holds the pre-chamber in, 2 good whacks to snug it down and no more leak.

I know, I should have pulled the pre-chamber, cleaned, inspected and re-seated to proper factory specs. That will have to wait until all the other issues with it have been worked out.
__________________
02 Golden Retriever/Black German Shepard "Boomer"
79 240D (no name yet) 203K Miles Maple Yellow
98 2500 4x4 HD Dodge 24 Valve Cummins TD
83 Chevy Van (Dead-Trans. shot)
Reply With Quote
