EGR Bypassed! E300D 1996

I'm pleased to report success on the bypass of my EGR today. I bought a new EGR tube from MB. I then cut off the lower 1.5 inches of it. I turned a stainless steel plug exactly the Internal diameter of the tube and pressed it in. I then made multiple little cuts in the tube's end and bent them over and sealed the exhaust side with High temp silicone sealant.
For the EGR valve side. I made a plug on the lathe and bored it 3/4 part way and 7/8" on the other side. It too was pressed into the tube and the little air filter was pushed into the stainless adapter.
I retained the old tube for inspection purposes.
It drives much better and NO CODES are generated!

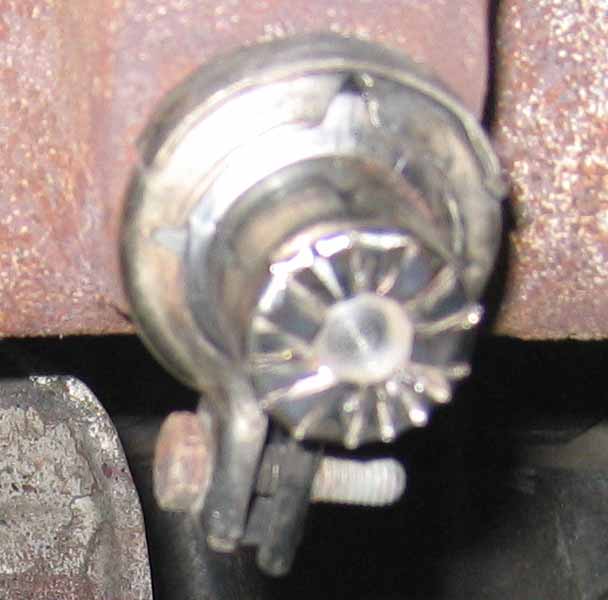

I've attached photos of the plugged exhaust manifold, Filter and filter stainless adapter. All turned on my Monarch lathe!
Attached Thumbnails
EGR Bypassed!-bypass1.jpg   EGR Bypassed!-bypass6.jpg   EGR Bypassed!-bypass7.jpg

Last edited by Bodgit2; 05-01-2005 at 09:56 PM.
Reply With Quote
  #2
Old 05-01-2005, 09:52 PM
Banned

Join Date: May 2002
Location: Blue Point, NY
Posts: 25,396
Nice job.

Be even more helpful if you referenced the vehicle for other members to consider.
Reply With Quote
  #3
Old 05-01-2005, 09:55 PM
Registered User

Join Date: Apr 2005
Location: Pittsford, NY
Posts: 222
Sorry E300D 1996 OM606
Reply With Quote
  #4
Old 05-02-2005, 02:35 AM
aklim's Avatar
Registered User

Join Date: Apr 2000
Location: Location: Greenfield WI, USA
Posts: 8,514
Any chance you will make it for other 606 people like myself? Also how much would you want for it if you did? I have a 99 E300 606 motor which is pretty similar to yours.
__________________
01 Ford Excursion Powerstroke
99 E300 Turbodiesel
91 Vette with 383 motor
05 Polaris Sportsman 800 EFI
06 Polaris Sportsman 500 EFI
03 SeaDoo GTX SC Red
03 SeaDoo GTX SC Yellow
04 Tailgator 21 ft Toy Hauler
11 Harley Davidson 883 SuperLow
Reply With Quote
  #5
Old 05-02-2005, 05:54 AM
Registered User

Join Date: Apr 2005
Location: Pittsford, NY
Posts: 222
Quote:
Originally Posted by aklim
Any chance you will make it for other 606 people like myself? Also how much would you want for it if you did? I have a 99 E300 606 motor which is pretty similar to yours.
I could probably be convinced to make a few. The new tube from MB was nice to work with but I don't know if they are all the exact same ID. Mine was 24.47mm ID so that is the diameter of the plug and adapter to make it a press in fit. The monarch lathe will hold these tolerances.
Reply With Quote
  #6
Old 05-02-2005, 06:28 AM
Registered User

Join Date: Sep 2004
Location: Belfast N. Ireland
Posts: 95
Quote:
Originally Posted by aklim
Any chance you will make it for other 606 people like myself? Also how much would you want for it if you did? I have a 99 E300 606 motor which is pretty similar to yours.

I do not think it is possible on the turbo, i have tried and the MAF senses that air flow is not reduced when the EGR is supposed to open and then cuts turbo boost.
I would imagine the non turbo 606 does not have an MAF is this correct?

If someone finds a way to do away with the EGR on a 606 turbo i would be very interested.


McCool300TD
__________________
1988 190E Sold
1996 C230K Sport Sold
His: 98 E300TD Estate, 7 seater, Avantgarde, Silver, Black cloth, parameter steering, dipping rvm, folding mirrors, rain sensing wipers, pentagon tints, 17" Elegance wheels. 298K
Hers: 93 300TD, 7 seater, Grey MB Tex pearl blue metallic, 15" 8 hole alloys, OTG, Cruise, not much else 220K
Reply With Quote
  #7
Old 05-02-2005, 10:25 AM
aklim's Avatar
Registered User

Join Date: Apr 2000
Location: Location: Greenfield WI, USA
Posts: 8,514
Quote:
Originally Posted by McCool300TD
I do not think it is possible on the turbo, i have tried and the MAF senses that air flow is not reduced when the EGR is supposed to open and then cuts turbo boost.
I would imagine the non turbo 606 does not have an MAF is this correct?

If someone finds a way to do away with the EGR on a 606 turbo i would be very interested.

McCool300TD
I would think that they have an MAF otherwise what would indicate the amount of air going into the system?

Maybe speedtuning USA can figure a way to bypass it electronically.
__________________
01 Ford Excursion Powerstroke
99 E300 Turbodiesel
91 Vette with 383 motor
05 Polaris Sportsman 800 EFI
06 Polaris Sportsman 500 EFI
03 SeaDoo GTX SC Red
03 SeaDoo GTX SC Yellow
04 Tailgator 21 ft Toy Hauler
11 Harley Davidson 883 SuperLow
