Old 06-08-2006, 01:22 AM
Posts: n/a
pics 7 & 10

Attached Thumbnails
1981 300SD Timing Chain Disaster-hpim0807a.jpg   1981 300SD Timing Chain Disaster-hpim0810a.jpg
Reply With Quote
Old 06-08-2006, 01:50 AM
Registered User
Join Date: May 2006
Location: Mesa, AZ
Posts: 7
Photos from prior post

Here are the other photos from the prior post. Thanks for your patience.

1981 300SD
1979 300SD
1982 Chevy P/U 6.2L diesel
Attached Thumbnails
1981 300SD Timing Chain Disaster-813.jpg   1981 300SD Timing Chain Disaster-802.jpg   1981 300SD Timing Chain Disaster-811.jpg   1981 300SD Timing Chain Disaster-814.jpg   1981 300SD Timing Chain Disaster-809.jpg

Reply With Quote
Old 06-08-2006, 03:04 AM
JimmyL's Avatar
Rogue T Intolerant!!!
Join Date: May 2004
Location: Sunnyvale, Texas (DFW)
Posts: 9,675
Originally Posted by Topspin

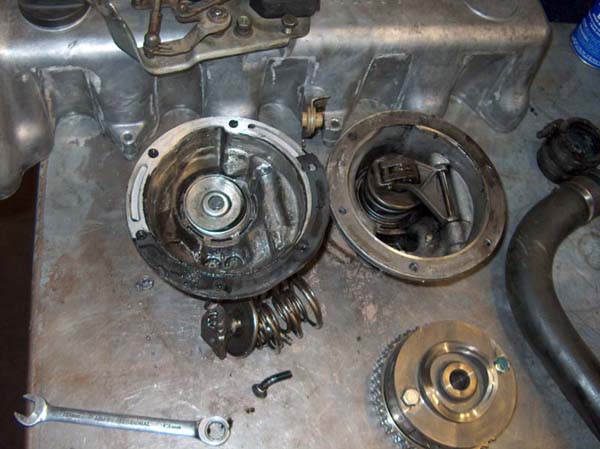

# 814 Vacuum pump removed from engine. Note missing bolt top left of plate
on timing gear.
So, do you think that bolt backed out, destroyed vac pump innards, which rained into engine, causing the collateral damage?

Great pics! You really tore right into that one.......
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John
Reply With Quote
Old 06-08-2006, 07:23 AM
Posts: n/a
Looks a lot like what happened to mine. Can you tell it there is any damage to the valves? Mine only jumped one tooth and the valves were all OK.
Reply With Quote
Old 06-08-2006, 11:43 AM
Registered User
Join Date: May 2006
Location: Mesa, AZ
Posts: 7

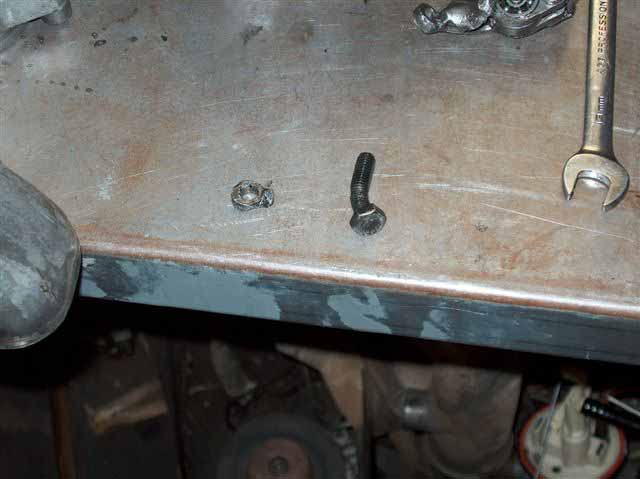

Yes, the current theory is that the bolt backed out resulting in destruction of the vacuum pump and the chain jump. The valves appear to be fine. It seems the bolt backed out and was bent when it ripped the guts out of the vacuum pump.

Interestingly, the bent bolt had no locktite on the threads. Maybe MB does not use locktite during assembly. I do not think the plate that attaches to the timing gear had ever been replaced, although the vacuum pump had been replaced about 2 years ago.

1981 300SD
1979 300SD
Reply With Quote
Old 06-08-2006, 01:04 PM
Motorhead's Avatar
Registered User
Join Date: Dec 2002
Location: Ca.
Posts: 971
Larry, I thought in one of your first posts that you found excess valve clearance on the engine.
How is the oil pump drive sprockets and chain for the oil pump? I would disassemble the pump and ck for damage/scoring due to small fragments that got past the screen on the pickup.
My Truck.. 2007 DODGE, 5.9 Cummins, 6spd stick, 4X4. My car..1977 240D, OTHER WHEELS...1955 VW Oval window bug, European Delivery (Holland) with a 1700cc, 2 barrel, Porsche drum brakes. 1939 WILLYS Pick-up. 1967 Triumph 200cc Tiger Cub. 1976 Honda 550F 4cyl Motor Cycle.
Reply With Quote
Old 06-10-2006, 01:56 PM
Registered User
Join Date: May 2006
Location: Mesa, AZ
Posts: 7
Why Did This Happen?

Has anyone seen this happen before? I wonder why a bolt in the timing gear would back out into the vacuum pump. This SEEMS to be the reason for all the damage (see photos). I have researched all maintenance records since new. The vacuum pump was replaced, but there is no indication that the plate attached to the timing gear was replaced.

Thanks in advance for your help!

Larry Campbell
1981 300SD (240K)
1979 300SD (325K)
1982 Chevy 1/2 ton P/U 6.2L diesel (202K)
Reply With Quote
Old 06-10-2006, 10:02 PM
Posts: n/a
No idea. My pump failure did not involve that bolt. It's hard to believe it would come loose for no reason after all that time.
Reply With Quote
Old 06-11-2006, 03:39 AM
mikemover's Avatar
All-seeing, all-knowing.
Join Date: Aug 2001
Location: Atlanta, GA
Posts: 5,514
I think this GVB guy is nuts, and I don't understand what his motivation is for trying to convince you the engine is "toast"....

I've seen worse damage done, and the engine was still repairable.

I do agree with checking out the oil pump. In fact, since you're going to be into some serious work anyway, I'd go ahead and replace the oil pump, just to be sure.

1979 300 SD
350,000 miles
1982 300D-gone---sold to a buddy
1985 300TD
270,000 miles
1994 E320
not my favorite, but the wife wanted it
Reply With Quote
Old 06-11-2006, 10:52 AM
Hatterasguy's Avatar
Join Date: Nov 2002
Location: Milford, CT
Posts: 19,307
I have no idea why the bolt backed out. Usually you rebuild vac pumps on 617's so unless you have paper showing it was replaced with a new one. That pump was probably rebuilt at some point. Ouch though thats some pretty major damage.

I wonder if we are seeing a trend of 617 vac pump failures? If I had a 617 I planned on keeping I would either do a major overhual of the pump, or replace it with a new one.
