Found a secret door!!! (Shhhhh....)

While working under the dash on the passenger side, pulling a new wire for an auxiliary power outlet (aka lighter socket) -- but that's another story -- I discovered a Secret Door in the passenger's kick panel. For all the times I've lain on the floor, wiring speakers and such, I never noticed this thing before.

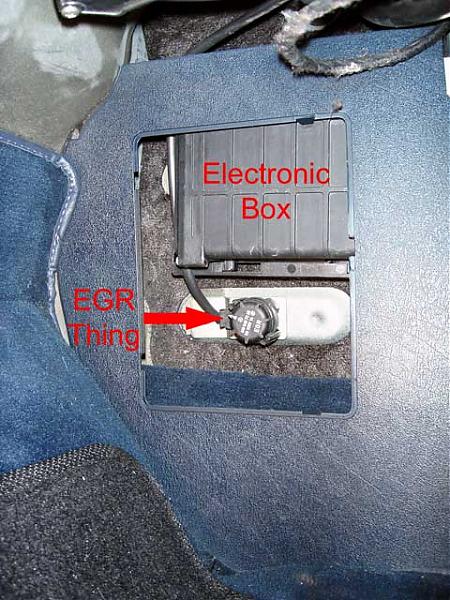

As the picture shows, behind 'Door Number One' is a black box, some kind of electronic thing, I suppose, and a round thing that says "EGR" on it. Well, we all know what EGR means but what are these two things? Are they unique to the 1985 model W123 diesels?

Jeremy

Attached Thumbnails
Found a secret door!!! (Shhhhh....)-egr_4768.jpg
__________________

"Buster" in the '95

Our all-Diesel family
1996 E300D (W210) . .338,000 miles Wife's car
2005 E320 CDI . . 113,000 miles My car
Santa Rosa population 176,762 (2022)
Total. . . . . . . . . . . . 627,762
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #2
Old 10-11-2006, 12:01 AM
Hatterasguy's Avatar
Zero

Join Date: Nov 2002
Location: Milford, CT
Posts: 19,307
Looks like the idle adjuster on the later cars. Can't be though, afaik the 617 never had electronic idle control.
__________________
2020 GMC Sierra Denali
2007 Tiara 3200
Reply With Quote
  #3
Old 10-11-2006, 12:09 AM
Registered User

Join Date: Nov 2004
Location: Nova Scotia, Canada.
Posts: 6,510
In the 123 series that location and item is 85 only. Remember to remember you have it as I believe the tach feeds through it as well. Might not hurt to examine the archives for the other functions or if you get a chance to look at 1985 service information.
Reply With Quote
  #4
Old 10-11-2006, 12:22 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,430
Yep, no such secret panel on the W126...not on mine anyways.
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 109k - mine - (OC-112,500)
'17 Metris(VITO!) - 29k - wifes (OC-34k)
'09 Sprinter 3500 Winnebago View - 61k (OC - 63k)
'13 ML350 Bluetec - 82k - dad's (OC-86k)
'01 SL500 - 98k(km) - dad's (OC-94,000km)
'16 E400 4matic Sedan - 132k - Brothers (OC-139k)
Reply With Quote
  #5
Old 10-11-2006, 12:23 AM
JimmyL's Avatar
Rogue T Intolerant!!!

Join Date: May 2004
Location: Sunnyvale, Texas (DFW)
Posts: 9,675
That is the egr computer, but it also operates the tach. The pins on mine were green and badly corroded. Something else behind it, I don't remember what though.....
__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John
Reply With Quote
  #6
Old 10-11-2006, 12:24 AM
Member since 2000

Join Date: Jul 2003
Location: Flemington, NJ
Posts: 1,143
He's got a CA model 85 300D. Crazy emissions stuff on that car.
Reply With Quote
  #7
Old 10-11-2006, 12:43 AM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,159
Quote:
Originally Posted by barry123400 View Post
In the 123 series that location and item is 85 only. Remember to remember you have it as I believe the tach feeds through it as well. Might not hurt to examine the archives for the other functions or if you get a chance to look at 1985 service information.
One correction... It also appeared on the 1984 California 300d. The '84 Federals were the same as the '82-'83.



Quote:
Originally Posted by turbodiesel View Post
He's got a CA model 85 300D. Crazy emissions stuff on that car.
The '85 Federal also had the computer control stuff..... It's same setup as the '84 California.
Reply With Quote
  #8
Old 10-11-2006, 06:11 AM
Registered User

Join Date: Jun 2006
Location: MA, VA
Posts: 363
Mine doesn't have it (83 Federal)
What does the egr do?
__________________
Andrew

1989 Volvo 745- 202K
Reply With Quote
  #9
Old 10-11-2006, 07:55 AM
Zerohour3k's Avatar
Diesel Enthusiast

Join Date: Sep 2005
Location: Ocean County, NJ
Posts: 367
Quote:
Originally Posted by cavaliers16 View Post
Mine doesn't have it (83 Federal)
What does the egr do?
What it actually does:

*Decreases engine power / speed
*Obliterates MPG
*More not-so-great stuff

What it's supposed to do:

*Decrease emissions

What everybody does:

*Stick a BB in the EGR line to stop it from being used.
Reply With Quote
  #10
Old 10-11-2006, 08:36 AM
riethoven's Avatar
Conservative Radical

Join Date: Apr 2005
Location: Eastern Long Island
Posts: 940
Besides the tachometer being dependant on the EGR electrics, isn't the speed sensor for the AC compressor also dependant on the EGR and that if there is a problem, the ACC will not function?
__________________
Doug

1987 300TD x 3
2005 E320CDI
Reply With Quote
  #11
Old 10-11-2006, 08:36 AM
Rudolphrocks's Avatar
Dazed and Confused

Join Date: Jul 2006
Location: Rockford, MI
Posts: 148
gasp! I thought that those bbs were in your exhaust all the time and they tend to clog up your lines BTW i work at napa and if someone comes in asking for a "test pipe" or "some pipe to replace my cat with" or "a drain plug to plug my egr" I can't sell it to them. If you don't tell me what it is for, i can sell it. BS gov :fork_off:
__________________
I like cars.

Reply With Quote
  #12
Old 10-11-2006, 09:43 AM
TheDon's Avatar
Ghost of Diesels Past

Join Date: Oct 2005
Posts: 13,282
i need that door, mine was missing.
Reply With Quote
  #13
Old 10-11-2006, 10:53 AM
Registered User

Join Date: Aug 2006
Location: Everett, WA
Posts: 124
I have the exact same car as you, even to the interior color.

I don't seem to have that EGR device. I'll have to doublecheck. A P.O. used it for installing a satellite radio tuner.
__________________
1978 Ford F-150 351M
2002 Kia Spectra 1.8l 5-sp
1985 Volkswagen Scirocco 8V 1.8l 5sp
1985 MB 300D Turbo California

"Die Natur verabscheut Vakuum"
Reply With Quote
  #14
Old 10-11-2006, 08:11 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,401
Quote:
Originally Posted by cavaliers16 View Post
Mine doesn't have it (83 Federal)
What does the egr do?
The EGR valve recirculates part of the exhaust gases (hence the name) back into the intake. The intent is to give unburned fuel in the exhaust a second chance to be burned, in an effort to reduce pollution. While is does do that, after a fashion, it is an "add-on" rather than a "designed-in" and does not work that well while having significant negative effects, as Zerohour3k has said.

__________________

"Buster" in the '95

Our all-Diesel family
1996 E300D (W210) . .338,000 miles Wife's car
2005 E320 CDI . . 113,000 miles My car
Santa Rosa population 176,762 (2022)
Total. . . . . . . . . . . . 627,762
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
