Parts Catalog Accessories Catalog How To Articles Tech Forums
Call Pelican Parts at 888-280-7799
Shopping Cart Cart | Project List | Order Status | Help



Go Back   PeachParts Mercedes-Benz Forum > Mercedes-Benz Tech Information and Support > Diesel Discussion

Reply

LinkBack Thread Tools Display Modes
  #1
Old 11-19-2006, 06:47 PM
Tabor
Guest

Posts: n/a
blower motor repair

So, my wife's blower motor went out in her W116.

After verrifying that the blower motor (and not some other part of the HVAC) was indeed broken, I checked fastlane. $904 with the cage, $345 without. Since I there was no harm in doing so, I dissasembled it to find worn out brushes.

Tommorow when I go to the hardware store, it will be fixed for $10.

Behr and Bosch can do some stuff that isn't appropriate for this forum.

Reply With Quote
  #2
Old 11-19-2006, 07:06 PM
Stevo's Avatar
Registered User

Join Date: Apr 2002
Location: NW WA
Posts: 6,296
I have fixed W123 blower motors with appliance brushes, they wont last as long but so what, just put in another pair
__________________


1985 Euro 240D 5 spd 140K
1979 240D 5 spd, 40K on engine rebuild
1994 Dodge/Cummins, 5 spd, 121K
1964 Allice Chalmers D15 tractor
2014 Kubota L3800 tractor
1964 VW bug

"Lifes too short to drive a boring car"
Reply With Quote
  #3
Old 11-19-2006, 09:33 PM
cdplayer's Avatar
Just my Jeep and my S500

Join Date: Aug 2006
Location: Sacramento, Calif.
Posts: 581
cdplayer

Quote:
Originally Posted by Tabor View Post
So, my wife's blower motor went out in her W116.

After verrifying that the blower motor (and not some other part of the HVAC) was indeed broken, I checked fastlane. $904 with the cage, $345 without. Since I there was no harm in doing so, I dissasembled it to find worn out brushes.

Tommorow when I go to the hardware store, it will be fixed for $10.

Behr and Bosch can do some stuff that isn't appropriate for this forum.
I have a 1984 W126. Not long after I acquired this vehicle I need to repair the blower moter and the resistor group. My problem was caused by years of dust build up in the blower housing. This in turn caused the blower motor to drag and the resistor group to over heat.
After I removed the blower housing I found the cage to be dirty but otherwise in perfect condition. Just near impossible to take off.
The motor was a mess. New had to be better.
I ordered online a new motor (no core) from DriveWire. Cost $114.70 and free shipping to my door.
Supporting the cage between two stacks of books, allowing the motor to dangle in the space between the books, a couple of sharp strikes with a punch and hammer on the motor shaft freed the cage from the motor.
__________________


Selling used Mercedes parts on Ebay...always changing...
cdplayer51 take a look!
____________
Reply With Quote
  #4
Old 11-19-2006, 09:44 PM
Tabor
Guest

Posts: n/a
Quote:
Originally Posted by cdplayer View Post
I have a 1984 W126. Not long after I acquired this vehicle I need to repair the blower moter and the resistor group. My problem was caused by years of dust build up in the blower housing. This in turn caused the blower motor to drag and the resistor group to over heat.
Mine was FULL of dust. I mean full. You couldn't have crammed anymore in.

Quote:
After I removed the blower housing I found the cage to be dirty but otherwise in perfect condition. Just near impossible to take off.
Drivewire wants $285 for mine sans cage.

To get the cage off, what I found worked good was to:

1. Clamp motor in vise.
2. Remove metal clip that looks like it hold the cage on the motor shaft but probably isn't doing anything in actuallity.
3. Have an assistant pull up on the cage while you tap the top of the shaft with a punch and hammer.
Reply With Quote
  #5
Old 12-02-2006, 10:57 AM
Tabor
Guest

Posts: n/a
Got the brushes yesterday. I couldn't find the right size local, so I had to order them. Helwig Carbon makes them and the part number is 82-313111, they come in packs of four. They are 0.312" x 0.312" x 1", but you will need to shorten them to reassemble the motor. I got them from graphitestore.com and with Thanksgiving it ended up taking exactly one week for them to ship, but I don't blame them. The motor works!

EDIT- But graphitestore.com will only sell them to you eight at a time.
Reply With Quote
  #6
Old 12-02-2006, 11:24 AM
JimmyL's Avatar
Rogue T Intolerant!!!

Join Date: May 2004
Location: Sunnyvale, Texas (DFW)
Posts: 9,673

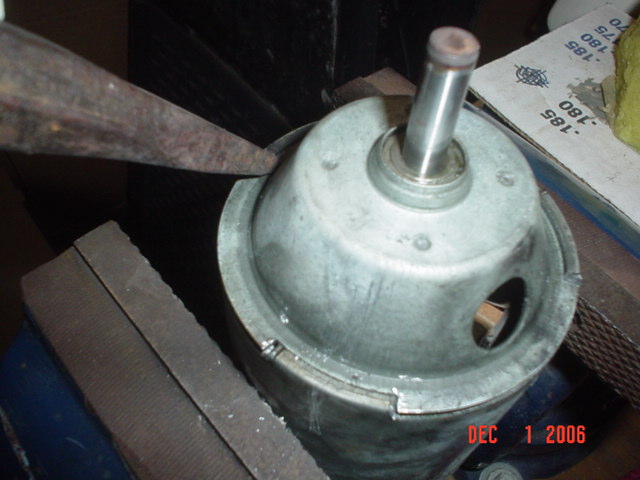

I took my extra apart last night, trying to get one to go into the 240. On mine, I pulled the plastic "body" of the fan assembly off, leaving the motor can and squirrel cage. I then set it on vice, motor down, with cage resting on a block on both sides. Tapped motor shaft with punch, basically driving motor and shaft from squirrel cage.
I don't know about yours, but my motor can was not held in place with screws, but the can "lids" had tabs, 3 of them, and the corners were folded with a punch to overlap the can. Hard to visualize, pics maybe to follow.
I didn't have but about 6mm left on the brushes, but am letting it ride at this time. My problem was the tightness of the shaft in the bushings on both ends. Went into "fan repair mode" and got those freed up, cleaned and lubed.
When reinstalling the motor end, some of the punched and folded corners grabbed, some broke off. We'll see if it holds......
Are all the motor cans/cases like this?
Spins very freely now......
Attached Thumbnails
blower motor repair-dsc01910.jpg   blower motor repair-dsc01907.jpg   blower motor repair-dsc01908.jpg   blower motor repair-dsc01909.jpg
__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John

Last edited by JimmyL; 12-02-2006 at 11:30 AM.
Reply With Quote
  #7
Old 12-02-2006, 11:54 AM
Motorhead's Avatar
Registered User

Join Date: Dec 2002
Location: Ca.
Posts: 971
I believe that Fastlane has the replacement brushes.
__________________
My Truck.. 2007 DODGE, 5.9 Cummins, 6spd stick, 4X4. My car..1977 240D, OTHER WHEELS...1955 VW Oval window bug, European Delivery (Holland) with a 1700cc, 2 barrel, Porsche drum brakes. 1939 WILLYS Pick-up. 1967 Triumph 200cc Tiger Cub. 1976 Honda 550F 4cyl Motor Cycle.
Reply With Quote
  #8
Old 02-09-2007, 02:53 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,389
I have a 126 300SD 1982, and the blower finally works well with the newly polished fuse holder and fuse. HOWEVER, it squeaks! Help. how hard is it to remove and lubricate the motor? can it be done? are the squeaks permanent? I plan to practice on my 83SD parts car. post a link to a DIY or Pictorial hopefully if there is one.
HELP! I am going insane with the squeaking...
John
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #9
Old 02-09-2007, 05:03 PM
rrgrassi's Avatar
mmmmmm Diesel...

Join Date: Jun 2006
Location: Royse City Tx
Posts: 4,875
I have not had to do anything on mine, yet. But, that squeak sounds like dry bearings.
__________________
RRGrassi


70's SPM #5608 Fairmont A-4 MOW car

06 VW Jetta TDI 280K miles

03 VW Golf TDI 5 speed 400K Miles Engine died

RIP--Lost in fire...82 300D 322K was My Daily Driver-On the search for a w126 now...

90 Dodge D250 5.9 Cummins/5 speed. 400K
Reply With Quote
  #10
Old 02-10-2007, 08:16 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,389
um, anybody know how to wet them?
John
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #11
Old 02-10-2007, 01:22 PM
JimmyL's Avatar
Rogue T Intolerant!!!

Join Date: May 2004
Location: Sunnyvale, Texas (DFW)
Posts: 9,673
Quote:
Originally Posted by vstech View Post
um, anybody know how to wet them?
John

Ummm, see post #6 above.......
I also find it handy to use gun cleaning kits with the tubular brushes just slightly larger than the fan bushing you are cleaning. Then I buff with scotchbrite and lube with Zoom Spout oil (available from most hardware stores)

http://www.happcontrols.com/cleaning_maintenance/29103300.htm
http://www.zoomspoutoiler.com/

Trust a fan guy on this one.....

The absolute best stuff to use is Royal Purple, iso 68 I believe (equivalent to about 15wt). No debate will be allowed on this point!

**edit**
You must disassemble fan/can to clean and lube the bushings and armature shaft. Proper metal or fiber washers is very important also. Armature should have a little play up and down, but not a big gap, and certainly not snug.
__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John
Reply With Quote
  #12
Old 02-10-2007, 01:37 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,389
thanks fan guy...
where would the "proper washers" and such be aquired? and what do I do about excessive play?
also, I, being an a/c tech, have the zoom oil in my tool box, but with a/c motors there is a tube and resivoir to hold oil, I did not see any such in the pictures above. is cleaning and oiling going to be sufficient? I would think that cleaning and lubing with a pasty grease would be more long life... buy you being the fan guy should be the final word.
John
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #13
Old 02-10-2007, 10:08 PM
JimmyL's Avatar
Rogue T Intolerant!!!

Join Date: May 2004
Location: Sunnyvale, Texas (DFW)
Posts: 9,673
Quote:
Originally Posted by vstech View Post
thanks fan guy...
where would the "proper washers" and such be aquired? and what do I do about excessive play?
I bought a kit several years ago of fiber washers. I have seen smaller kits at Harbor Freight. I also imagine Lowes or Home Depot might have similar. The number of washers takes up any excess play of the armature.



Quote:
Originally Posted by vstech View Post
is cleaning and oiling going to be sufficient? I would think that cleaning and lubing with a pasty grease would be more long life...
I can't remember, but I think there is some wicking around the bushings, which will soak up the oil and provide lubrication through the bushing. I put quite a lot of oil in the are around the bushings.


Quote:
Originally Posted by vstech View Post
by you being the fan guy should be the final word.
John
Well, it's not like I can tell you how to rebuild the transmission.....

__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 07:18 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2020, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
