CV joint

On my 1980 300SD one of the boots started leaking, so I stopped driving the car. I now have the axle off, removed the leaky boot, now my question is, should the cv joint be very stiff, I thought it should move very easley. did I damage the cv joint when I removed the axle?

Reply With Quote
  #2
Old 01-22-2008, 03:53 PM
Biodiesel300TD's Avatar
|3iodiesel300T|)

Join Date: Dec 2004
Location: Albany, OR
Posts: 4,845
In short no they shouldn't be stiff. If they are stiff, and the boot was torn you might get luck and be able to put new CV grease in and they'll loosen up. But if you ran them very long with a torn boot the CV is probably toast.
__________________
Andrew
'04 Jetta TDI Wagon
'82 300TD ~ Winnie ~ Sold
'77 300D ~ Sold
Reply With Quote
  #3
Old 01-22-2008, 04:06 PM
Registered User

Join Date: Nov 2007
Location: Palm Bay Fl
Posts: 426
there was pleanty of oil left in the boot when I cut it off. on my 1970 VW the cv joins were loose as a goose, even new. I did have some trouble geting the axle out. I will find out shortley if it is still good.
Reply With Quote
  #4
Old 01-22-2008, 05:07 PM
Registered User

Join Date: Jan 2007
Location: Richmond Virginia
Posts: 309
my boots are starting to crack pretty good, its too cold to tackle the job until maybe march. i sprayed em' with some armor all to try and soften them up a bit, im now wondering if i should maybe try to smear some silicon or something on to hold them together for a couple more months, any recommendations on a suitable goop. ive seen the youtube video of the guy sliding the boots on over a greased up funnel, what kind of boots are those ? where do you get them ?
Reply With Quote
  #5
Old 01-22-2008, 05:25 PM
Stevo's Avatar
Registered User

Join Date: Apr 2002
Location: NW WA
Posts: 6,299
The boots on these cars will look bad a long time before they actually crack all the way through, I wouldn't worry about it till they fail.
__________________


1985 Euro 240D 5 spd 140K
1979 240D 5 spd, 40K on engine rebuild
1994 Dodge/Cummins, 5 spd, 121K
1964 Allice Chalmers D15 tractor
2014 Kubota L3800 tractor
1964 VW bug

"Lifes too short to drive a boring car"
Reply With Quote
  #6
Old 01-22-2008, 07:41 PM
Registered User

Join Date: Nov 2007
Location: Palm Bay Fl
Posts: 426
I am going to try the youtube video of the guy sliding the boots on over a greased up funnel. I am geting the boots from Pierre in Orlando.
Reply With Quote
  #7
Old 01-22-2008, 07:50 PM
ForcedInduction
Guest

Posts: n/a

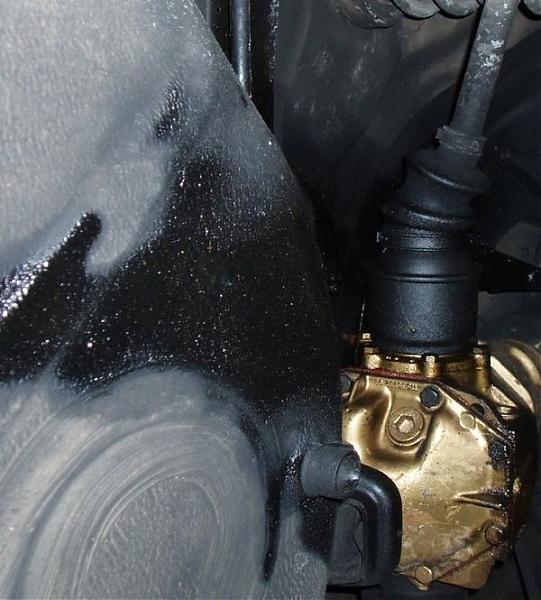

When they start doing this its time to replace it.
Attached Thumbnails
CV joint-lmnleaking-axle.jpg
Reply With Quote
  #8
Old 01-22-2008, 08:31 PM
Professional smart ass

Join Date: Jan 2005
Location: Sunny San Diego
Posts: 723
My boots have looked terrible for about 2 1/2 years and still no leaks. They will go quite a while with cracks.
__________________
"spreading a trail of obnoxious where ever we go"
1981 300sd w/ 341,500 miles

http://www.wecrash.com/pics/ddda_banner.gif
Reply With Quote
  #9
Old 01-22-2008, 08:35 PM
lutzTD's Avatar
Registered User

Join Date: Oct 2006
Location: Lutz, Florida (N of Tampa)
Posts: 2,461
Quote:
Originally Posted by ForcedInduction View Post
When they start doing this its time to replace it.

is this grease from the cv or from the differential? My boots are all but gone and i have been driving on them for 6 months
__________________

1982 300CD Turbo (Otis, "ups & downs") parts for sale
2003 TJ with Hemi (to go anywhere, quickly) sold
2001 Excursion Powerstroke (to go dependably)
1970 Mustang 428SCJ (to go fast)
1962 Corvette LS1 (to go in style)
2001 Schwinn Grape Krate 10spd (if all else fails)
Reply With Quote
  #10
Old 01-22-2008, 08:39 PM
ForcedInduction
Guest

Posts: n/a
Quote:
Originally Posted by lutzTD View Post
is this grease from the cv or from the differential?
A straight sling like that comes from the CV boots in high speed driving.
Reply With Quote
  #11
Old 01-22-2008, 11:33 PM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,346
He might be referring to the bling bling
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1995 E420 Schwarz
1995 E300 Weiss
#1987 300D Sturmmachine
#1991 300D Nearly Perfect
#1994 E320 Cabriolet
#1995 E320 Touring
#1985 300D Sedan
OBK #42
Reply With Quote
  #12
Old 01-28-2008, 03:08 PM
Registered User

Join Date: Nov 2007
Location: Palm Bay Fl
Posts: 426
Quote:
Originally Posted by Kpmurphy View Post
I am going to try the youtube video of the guy sliding the boots on over a greased up funnel. I am geting the boots from Pierre in Orlando.
Well it did not work. Maybe we should have heated the boots in boiling water or something. We tried and tried in till the trans funnel gave way.
Pierre had a parts car with a couple axles with good boots, so now my 1980 300SD is back on the road, I am so happy now, she was down for 2 weeks. During the 2 weeks I drove the 1970 220D it is nice but nothing like the 300SD.
Reply With Quote
  #13
Old 01-28-2008, 04:29 PM
winmutt's Avatar
85 300D 4spd+tow+h4

Join Date: Apr 2006
Location: Atl Gawga
Posts: 9,346
Ya you need a Flexx gun to do boots.
__________________
http://superturbodiesel.com/images/sig.04.10.jpg
1995 E420 Schwarz
1995 E300 Weiss
#1987 300D Sturmmachine
#1991 300D Nearly Perfect
#1994 E320 Cabriolet
#1995 E320 Touring
#1985 300D Sedan
OBK #42
Reply With Quote
  #14
Old 01-28-2008, 05:47 PM
Registered User

Join Date: Nov 2007
Location: Palm Bay Fl
Posts: 426
Well, we saw the video, had a good axle, and you never know till ya try.
It was pretty funny, 2 people trying to pull a boot over a transmision funnel & axle.
I did bring my video camera incase it did work.
I still can not believe the rubber will stretch that much, even with a Flexx gun.
Reply With Quote
  #15
Old 01-28-2008, 06:06 PM
Registered User

Join Date: Jan 2003
Location: RI
Posts: 271
I don't know about cracking, but my boots have no smooth outside surface at all. They look more like sponges. I've been spraying them with rubberized undercoating in the late fall, just in case, for the 5 years I've had the car. No problem, yet.
I did a web search a couple of weeks ago looking for "rubber spray" in a can. They do make it but it's expensive. Something like 50.00 or 60.00 bucks for a 8 ounce can. I mean, here we are spending big bucks and labor to replace axles all for the want of a piece of rubber. I wonder how long an axle would last if we could keep the rubber intact. Who has gone the longest.
