  #1
Old 02-20-2008, 10:09 PM
Registered User

Join Date: Jan 2008
Posts: 96
glow plug light meaning?

if the glow plug light on dash comes on does that mean the glow plugs are ok or could they still be faulty...thanks..
Reply With Quote
  #2
Old 02-20-2008, 10:41 PM
Registered User

Join Date: Sep 2004
Posts: 8,314
What car/engine?
Reply With Quote
  #3
Old 02-20-2008, 10:41 PM
Registered User

Join Date: Nov 2004
Location: Nova Scotia, Canada.
Posts: 6,510
Still could be something wrong. Best quick check is to disconnect the relay plug and read each plugs resistance. Thats if your relay is mounted in the engine compartment.
Reply With Quote
  #4
Old 02-20-2008, 11:09 PM
Registered User

Join Date: Jan 2008
Posts: 96
1982 non turbo 300d euro....will check glow plugs...thought light wouldn't function if plugs were bad...car not firing up in cold weather...will check valve adjustment
Reply With Quote
  #5
Old 02-20-2008, 11:13 PM
Registered User

Join Date: Sep 2004
Posts: 8,314
Unless the Euro is different, the light could function normally with one inoperative glow plug. More than one inop plug should cause the pre-glow light to not illuminate. This, of course, assumes that the fault detection circuit is operating normally.
Reply With Quote
  #6
Old 02-20-2008, 11:13 PM
Registered User

Join Date: Dec 2005
Location: Carson City, NV
Posts: 3,754
The light will still come on with some plugs bad. I had one bad one (open) a couple months ago and the light still came on as normal. When I first bought the car it had two bad ones (open) and the light would come on but go off again quickly.

I've also seen a 7.3 IDI International do the same with four bad ones.
__________________
Anyone who thinks a 300D is fast drives too slow.

83 300D Turbo with manual conversion, early W126 vented front rotors, open exhaust, and H4 headlights 349,xxx miles
08 Triumph Street Triple 20,xxx miles, lowered 10mm in front, Pirelli Angel GT tires, otherwise stock.
Reply With Quote
  #7
Old 02-20-2008, 11:17 PM
Registered User

Join Date: Jan 2008
Posts: 96
the light comes on for about 10 seconds..it's easily below freezing out
Reply With Quote
  #8
Old 02-20-2008, 11:19 PM
Registered User

Join Date: Jan 2008
Posts: 96
i read that they could all be out and the light would come on
Reply With Quote
  #9
Old 02-20-2008, 11:23 PM
Registered User

Join Date: Sep 2004
Posts: 8,314
Quote:
Originally Posted by newpastlife View Post
i read that they could all be out and the light would come on
That is true. The fault detection balances the current between the number one plug and plugs 2-5. If they are all out, there is no imbalance.
Reply With Quote
  #10
Old 02-21-2008, 01:36 PM
Registered User

Join Date: Jul 2003
Location: Ocean Isle Beach, NC
Posts: 2,410
But if they are all out, I wouldn't think you could start it at all.
__________________


Len
'59 220S Cabriolet-FOR SALE
http://www.bruceadams190sl.com/1959-mercedes-benz-220s-cabriolet/
'83 240D 351,500 miles original owner-SOLD
'88 560SL 41,000 miles - being parted out
https://sites.google.com/site/mercedesstuff/home
'99 E300 turbo 207,000 miles
'03 SLK320 40,000 miles - gave to my daughter
'14 Smart electric coupe 12,000 miles
'14 Smart electric cabriolet 1000 miles
Reply With Quote
  #11
Old 02-21-2008, 02:02 PM
Registered User

Join Date: Jan 2000
Location: PA
Posts: 5,440
newpastlife,

U can put a voltmeter or 12v test light on a GP terminal see if it is getting voltage when U turn the key switch to the GP position.

P E H
Reply With Quote
  #12
Old 02-21-2008, 05:41 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820

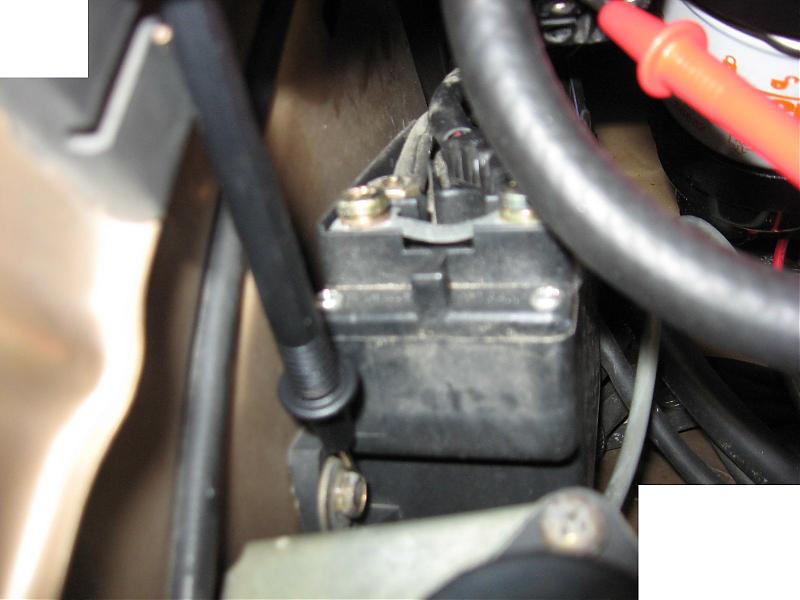

You can also check resistance with an OHM meter. Less than one is good. As you can see I need to replace these, I now have them. Started this morning tho, upper twenties.
Attached Thumbnails
glow plug light meaning?-ohm-cropped-three.jpg   glow plug light meaning?-ohm-cropped-two.jpg   glow plug light meaning?-ohm-red-cropped-three.jpg
__________________
83 SD

84 CD
Reply With Quote
  #13
Old 02-21-2008, 08:30 PM
Registered User

Join Date: Jan 2000
Location: PA
Posts: 5,440
Too Many,

U will get more accurate readings if U get a bananna plug test lead for your ohm meter to plug into the terminal holes of the GP cable and an alligator clip for the ground test lead.

A GP that reads 1.7 ohms is probabaly good. What did the other GPs read in ohms.

P E H
Reply With Quote
