#1
|
|||
|
|||
1992 300D lights
The only lights that work on the inside of the car are the insturment cluster, shouldnt there be other lights? Lights for the heat and ac controls, headlight switch, window controls, radio? None of those work, can you tell me where they (lights) are? and how to get to them. Thanks.
|
#2
|
||||
|
||||
Radio, lights, switches, ACC, all have their own lights in the 124. Not sure how it's wired, would have to look that up, but it sounds like you're missing a connection somewhere. Do the dash lights dim with the dimmer knob (next to the odometer knob)? If not, it is possible that the dimmer died (rare in the 124), and someone wired just the dash/cluster lights to run direct.
__________________
Gone to the dark side - Jeff |
#3
|
||||
|
||||
Schematic
Diagram attached.
Individual links to locations are in the DIY pages
__________________
'84 300SD sold 124.128 Last edited by compress ignite; 03-23-2008 at 01:47 PM. |
#4
|
|||
|
|||
DIY pages? What is that? Do it yourself, got it. There is nothing about the lights there.
Last edited by 04 Diesel; 03-19-2008 at 11:42 PM. |
#5
|
|||
|
|||
Quote:
|
#6
|
||||
|
||||
Lights
another diagram
The little suckers are everywhere...I cannot find them yet on the FSM. (I know the ones in the vents you have to be really careful getting at) 'Check the fuses shown...it's weird all of them are out simultaneously.
__________________
'84 300SD sold 124.128 Last edited by compress ignite; 03-23-2008 at 01:47 PM. |
#7
|
||||
|
||||
Aftermarket radio? Start there, someone might have clipped a wire.
__________________
Gone to the dark side - Jeff |
#8
|
|||
|
|||
No, factory stereo
|
#9
|
|||
|
|||
Where are you getting these diagrams at? What you are sending me is too small, I cant read them. Thanks.
|
#10
|
|||
|
|||
New fuses
Just put all new fuses in and still no lights.
|
#11
|
||||
|
||||
Interior Lights
1.Upper Console

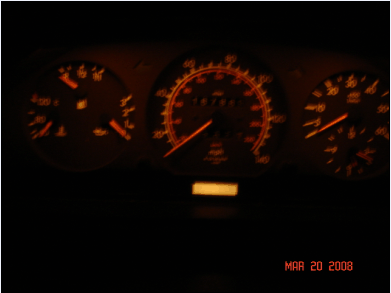

2.Lower Console 3.Exterior light switch (Headlamps) 4.Lighted Vent Control Passenger Side 5.Instrument Cluster 'Didn't get:Sunroof switch,Rear Window Switches (In Rear Doors) 'Sorry about the Quality of the images.
__________________
'84 300SD sold 124.128 |
#12
|
||||
|
||||
Interior Light
6.Radio(on) lights
__________________
'84 300SD sold 124.128 |
#13
|
||||
|
||||
Grounds

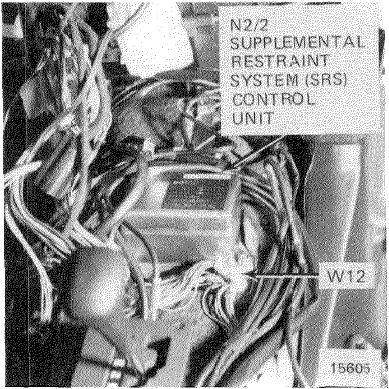

W12 is underneath the console cover (front of Window switches)
[Let's hope you don't have to go there]. W1 is in back of the Instrument Cluster(You have to pull it/push out from underneath). W7 is Passenger side of Trunk underneath the Starboard side rear light. W6 is Portside of the Trunk (on the left rear Wheelhouse) Look for any loose or improperly terminated wires(Brown).
__________________
'84 300SD sold 124.128 |
#14
|
|||
|
|||
Quote:
|
#15
|
||||
|
||||
Power points
I see two points for power on the Schematics:
X6 terminal block 58d (2 pole) First picture X6/1 terminal block 58D (2 pole) Second picture To get to these you're going to have to disassemble the top of the center console. If you lift up the front of the carpet section of the console(Tray) there will be one Phillips screw to remove.Then you can gently pivot the wooden cover that fits over the window switches,mirror control switch(it pivots on two plastic hooks that go under the vertical portion of the console.(you will have to gently pry up the Black plastic surround that is inset at the gear selector lever,First) Aw heck,you'll have to get the console side covers off also.Which is another magnitude of difficulty. When you get the horizontal wood cover off the window switches,gently wiggle one upwards(it just presses into the socket) and by then I may know which pins on the bottom co-respond to the light bulb and you can check it out for continuity. EDIT: I think the bulb is pins# 1+ 2 . I just do not want to believe the problem is wiring. Do you ever have any trouble with the electrical portion of the ignition switch?
__________________
'84 300SD sold 124.128 Last edited by compress ignite; 03-22-2008 at 01:18 AM. |
