W123 A How to, replacing rear axles.

W123 replacing rear axles


My son’s 1985 300D’s rear axle was making noise. The outer boots, inner clamp, was loose and I’m sure some or all of the oil was gone. He started to get a clicking noise upon de-acceleration so I knew it was time for a new axle. I called and got New axles from Advanced Auto. SKU # 20870644. They shipped them directly to the house for $92.97 each. I also purchased new differential to axle seals just in case the installed ones were worn. The seals were fine once I disassembled the differential so I chose not to replace them.
The axles are made in China so we shall see how they perform.

One word of caution. The wheel hub to axle bolt spacer that was provided was longer than the one on the car. Measure these carefully and IF the axles are original to the car or have been there a long time, reuse the spacer tube that you remove, otherwise the axle will not completely seat into the hub. I also had the bolt provided break while installing it. So I would reuse what Mercedes provided.


Picture #1
Place chocks under the rear of the FRONT tires since you will be jacking up the rear tires.

Picture #2

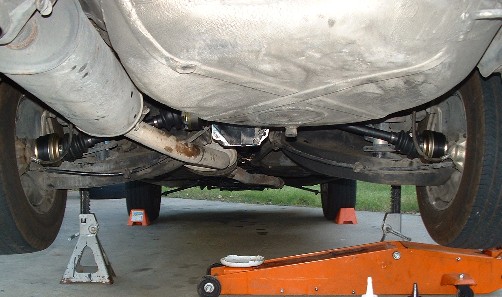

Jack the car up using the differential. I have a long body jack and it is easy to raise the car from the rear bumper area.

Picture #3
As you can see I have placed the jack stands under the sub frame bushing area. I find this to be a safe and secure place for the stands. After you have settled the car onto the stands, give the car a good shake and make sure the stands have not changed position under the car. If they have in anyway moved, reposition the jacks stands.

Picture #4
Since you will be opening the rear of the differential, either pressure wash it or use a degreaser and a brush as shown. I completely pressure washed the car back in October when we got it. So the car was pretty clean and only required a brushing.

Picture #5
Remove the fill plug in the differential (14MM Allen socket). Always a good idea to remove the fill plug first, instead of the drain plug. You would hate to find out the fill plug is stuck after draining the oil. I am going to reuse the installed synthetic oil since we installed it last November. We filtered it and reused it.


Dave

Attached Thumbnails
W123 A How to, replacing rear axles.-1-chock-wheels.jpg   W123 A How to, replacing rear axles.-2-place-car-up-sturdy-jack-stands.jpg   W123 A How to, replacing rear axles.-3-postition-jack-stands.jpg   W123 A How to, replacing rear axles.-4-clean-differential-opening.jpg   W123 A How to, replacing rear axles.-5-always-remove-fill-plug-first.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 04-20-2008 at 04:07 PM.
Reply With Quote
  #2
Old 04-20-2008, 03:49 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #6
Remove the drain plug and collect the oil. ( 14MM Allen socket)

Picture #7
Remove the wheel hub to axle bolts as shown. ( 13MM socket ). Save the tube spacer.

Picture #8
Using a brass drift, pound out the axle from the hub. CAUTION, do not let the axle fall. Attach the axle to a wire hanging from the anti sway bar.

Picture #9

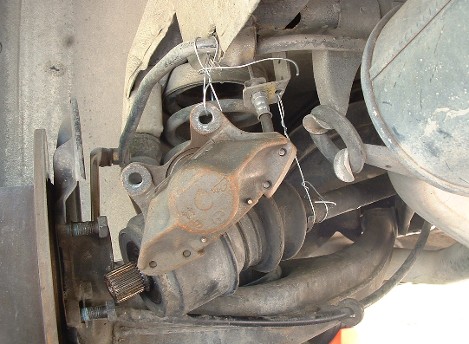

Remove the caliper from the wheel hub ( 19MM socket) and hang it with wire to the anti sway bar. Do not let it hang by the hose, you will ruin the hose.

Picture #10
Support the differential with a jack. An adjustable jack, not a jack stand. You will have to raise and lower the differential a few inches during this job. Make sure you do not block the rear cover of the differential, it must come off.

Dave
Attached Thumbnails
W123 A How to, replacing rear axles.-6-remove-drain-plug-allow-oil-drain.jpg   W123 A How to, replacing rear axles.-7-remove-wheel-hub-axle-bolt-hang-axle-caliper.jpg   W123 A How to, replacing rear axles.-8-drive-out-axel-brass-drift.jpg   W123 A How to, replacing rear axles.-9-caliper-axle-hanging-wires-not-hoses.jpg   W123 A How to, replacing rear axles.-10-support-differential-but-allow-rear-plate-come-off.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 04-20-2008 at 04:07 PM.
Reply With Quote
  #3
Old 04-20-2008, 03:50 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #11
Remove the bolts holding the rear differential cover to the bushing as shown. (22MM socket).

Picture #12
To get to the upper bolt, push the sway bar up and out of the way of the socket. The sway bar is flexible and will move easily.

Picture #13
Using an extension remove the bushing to floor bolts and remove the bushing. (13 MM socket )

Picture #14
Remove the differential rear cover bolts. (15MM socket)except the one next to the breather tube it was 17MM. You may have to lower the differential to get to the top bolts.

Picture #15
To break the seal on the differential rear cover caused by the RTV sealant, I used a punch as shown in the hole provided near the drain hole. A few taps with a hammer will break the seal and the cover can be pealed off the differential.
Attached Thumbnails
W123 A How to, replacing rear axles.-11-unbolt-differential-busshing-differntial-bolts.jpg   W123 A How to, replacing rear axles.-12-unbolt-top-bolt-push-up-antisway-bar-allow-access.jpg   W123 A How to, replacing rear axles.-13-unbolt-differential-bushing-floor-bolts.jpg   W123 A How to, replacing rear axles.-14-remove-all-differentia%3B-plate-bolts-you-may-have-lower-differential-.jpg   W123 A How to, replacing rear axles.-15-you-can-separate-cover-using-drift-shown.-hammer-until-seal-broken.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 04-20-2008 at 04:07 PM.
Reply With Quote
  #4
Old 04-20-2008, 03:50 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #16
To remove the C clips I used this hooked scratch all I got from Harbor Freight ( item 93958-2VGA). Pull on the clips hole in the tab and the C clip come out of the axle shaft. Watch out it will go flying if done this way. So be ready to catch it or it will be about 5 feet behind the car. I recommend doing one axle at a time so clips, washers, and spacers are not mixed up.
You may have to rotate the axles to find the C clip tab. The c clip can rotate on the axle.

Picture #17
Remove the axle by just pulling it towards the wheel hub, yes you will have to direct it around the wheel hub, but it will move easily.Once the axle is removed, carefully clean the axle to differential seal. Do not allow dirt and particles to enter the differential. As you can see mine are in very good shape. So even though I had a set I choose not to replace them. Replacing them is just like any seal. A seal puller is best to remove it. Apply gear oil to the seal and press it in. Refer to the manual on depth of the seals position.

Picture #18
Remove the spacing ring from the old axle and place it on the new one. You may have to file the inside of the spacer opening to remove any burs that interfere with its installation. Spacer rings are specific to the axle side, DO NOT SWAP THEM. You should reuse the old spacer. It was specifically installed based on the differential adjustment to place the axle in the correct position in its opening. As long as you don’t mess with the differential gear adjustment you should not have to change the spacing ring.

Lube the axle seal with gear oil and insert the axle into the differential opening. Press it in as hard as you can. Look at the axle in the differential where the C clip attaches you should see the slot for the c clip.
Concerned with losing the c clip I attached a wire to the tab hole and then installed the C clip. If it went flying I could easily retrieve it from inside the differential.

NOTE: the axle/C clip fitting should be snug, NOT LOOSE

Picture #19
I pressed in the C clip as far as I could with my fingers and then used a punch and hammer to drive it all the way in. I did this by tapping on either side of the tab.

Picture #20
Make sure the tab is completely inserted into the axle slot. You want to make sure the C clip did not spread and is on top of the axle. You want it in the slot provided. I rotated the axle to see the end of the C clip and make sure it is in the slot. Do this for both ends of the C clip.

Dave
Attached Thumbnails
W123 A How to, replacing rear axles.-16-remove-c-clips-i-used-hooked-scratch-all.jpg   W123 A How to, replacing rear axles.-17-carefull-clean-seals-i-chose-not-replace-them-they-look-good-.jpg   W123 A How to, replacing rear axles.-18-insert-axles-clips-iattached-wire-clip-incase-went-flying.jpg   W123 A How to, replacing rear axles.-19-you-can-drive-clip-punch-hammer.jpg   W123 A How to, replacing rear axles.-20-rotate-axle-look-end-c-clip-make-sure-inserted-correctly.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 04-20-2008 at 04:07 PM.
Reply With Quote
  #5
Old 04-20-2008, 03:51 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture #21
I’m showing the installed clip compared to the uninstalled to allow you to see the tabs on the end of the C clip. Those tabs must not be visible. They should be buried in the slot.

Picture #22

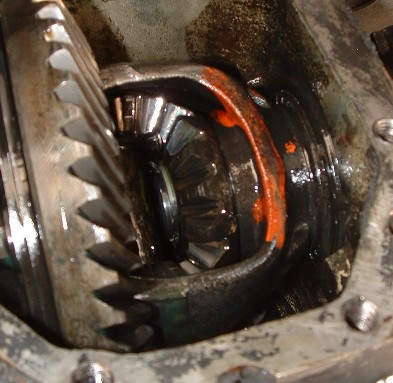

C clip for the passengers side axle. I replaced both axles.

Picture #23
Clean the differential to cover mating surface. I used degreaser and a putty knife. Protect the gears by not allowing any debris to get into the differential.

Picture #24
Start by RTVing the cover and allowing it to skin over. Usually about 10 minutes, but follow the package instructions. Install the cover and bolts. (45 NM torque )

Attach the rear differential bushing to the cover.( 120 NM torque )

Attach the rear bushing to the trunk floor ( 25NM torque )

Install the Calipers on the wheel hubs using Loctite. ( 90NM torque)

Install the axle shaft to wheel hub bolts. (30NM torque 8mm bolt, 95 Nm 12mm bolt)

Install wheels and torque to 110NM.

Picture #25
After your RTV has cured (12-24 hours ) you can install your differential oil ( 1 liter of oil ) and your fill plug ( 50 NM torque). Consider using anti seize paste on the threads for future oil changes.

Dave
Attached Thumbnails
W123 A How to, replacing rear axles.-21-notice-ends-o-fhte-clip-make-sure-they-under-shaft.jpg   W123 A How to, replacing rear axles.-22-insert-passenger-side-axlw-clip-check-.jpg   W123 A How to, replacing rear axles.-23-clean-matting-surface-differential.jpg   W123 A How to, replacing rear axles.-24-apply-rtv-cover-bolts-differential-bushing-floor.jpg   W123 A How to, replacing rear axles.-25-wait-rtv-dry-insert-drain-plug-fill-oil-.jpg

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 04-20-2008 at 05:04 PM.
Reply With Quote
  #6
Old 04-20-2008, 04:09 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Picture # 26
Tools used, part one

Complete socket set (up to 22mm)
˝” drive ratchet
3/8” drive ratchet
˝”Breaker bar
˝” and 3/8” extensions
Torque wrench
Flash light
Hooked screwdriver
Long needle nose pliers
Putty knife


Picture #27
Tools used, part two

Degreaser and towels
Allen socket set
Hammer
Punch
Diagonal cutters
3/8” socket set
Wire
Brass drift
Loctite
RTV
Needle nose locking pliers

Enjoy

Dave
Attached Thumbnails
W123 A How to, replacing rear axles.-26-tool-used-left-side.jpg   W123 A How to, replacing rear axles.-27-tools-used-right-side.jpg
__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car

Last edited by dmorrison; 04-20-2008 at 04:09 PM.
Reply With Quote
  #7
Old 04-20-2008, 07:36 AM
Flounder's Avatar
Specializing in hack jobs

Join Date: Oct 2007
Location: New Jersey
Posts: 207
Very very helpful!

Great write-up and pics Dave! I hope not to need it in the near future, but if I do it will save me a lot of staring and wondering how to do it.
__________________
'81 300CD - 180K, cannot be killed by any conventional means
'99 Ford Escort - good MPG
Reply With Quote
  #8
Old 04-20-2008, 07:40 AM
ForcedInduction
Guest

Posts: n/a
Those Annular axles will make changing them in the future far easier since you won't have to open the differential.
Reply With Quote
  #9
Old 04-20-2008, 07:43 AM
tobybul's Avatar
Registered User

Join Date: Sep 2005
Location: West Michigan
Posts: 2,076
Thanks

Thanks, Dave. You always do a great pictorial. This will be helpful. I might do it one of the D's this summer.
__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa
Reply With Quote
  #10
Old 04-20-2008, 07:57 AM
running-snail's Avatar
Registered User

Join Date: Nov 2004
Location: Michigan
Posts: 288
Wonderful

You must be feeling better Dave. Exceptional documentation as we've all come to expect from a dmorrison diy pictorial. Thank you.
__________________
83 300d - 390k
Reply With Quote
  #11
Old 04-20-2008, 09:31 AM
JimmyL's Avatar
Rogue T Intolerant!!!

Join Date: May 2004
Location: Sunnyvale, Texas (DFW)
Posts: 9,673
The effort you take to photo these jobs you have to do, then organize it into a most helpful DIY is so very much appreciated!!
I hope we all do a good job letting you know that.
The DIY I'm most looking forward to is when you find a "new" engine for the wagon......
__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John
Reply With Quote
  #12
Old 04-20-2008, 10:07 AM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,157
Other threads related to axles replacement

As usual Great Job, Dave.

Let me add a couple of links to this subject that may be helpful for people.
Another axle replacement link from M-Shop member Jeremy5848.

W123 axle R&R job--some questions?

Differential replacement pictorial from DeliveryValve (me) - scroll down to post #20.

Differential Swap
__________________
1983 123.133 California
- GreaseCar Veg System



Last edited by DeliveryValve; 04-20-2008 at 10:24 AM.
Reply With Quote
  #13
Old 04-20-2008, 10:15 AM
Chad300tdt's Avatar
Benzless Scoutmaster

Join Date: May 2007
Location: North Wales, PA
Posts: 4,001
Thanks for your effort on the write-up Dave. Excellent as usual.

In photo #26, there appears to be some tape on your sockets. Is this for quick identification or is there some trick you are doing (like using the tape to help keep the bolts in the sockets or something)?
__________________
Chad
2006 Nissan Pathfinder LE
1998 Acura 3.0 CL
OBK#44
"Pleasure in the job puts perfection in the work." - Aristotle (384-322 B.C.)

SOLD
1985 300TD - Red Dragon
1986 300SDL - Coda
1991 - 300TE
1995 - E320
1985 300CD - Gladys
Reply With Quote
  #14
Old 04-20-2008, 10:16 AM
mobetta's Avatar
(Oo{-I-}oO)

Join Date: Mar 2006
Location: minnesota,hey.
Posts: 1,841
Another great write-up, thanks Dave.
__________________
1984 123.193 372,xxx miles, room for Seven.

1999 Dodge Durango Cummins 4BTAA 47RE 5k lb 4x4 getting 25+mpgs, room for Seven.
Reply With Quote
  #15
Old 04-20-2008, 11:14 AM
dmorrison's Avatar
Registered User

Join Date: Dec 2002
Location: Colleyville, Texas
Posts: 2,695
Quote:
Originally Posted by Chad300tdt View Post
Thanks for your effort on the write-up Dave. Excellent as usual.

In photo #26, there appears to be some tape on your sockets. Is this for quick identification or is there some trick you are doing (like using the tape to help keep the bolts in the sockets or something)?
I used electrical tape to identify my metric vs. SAE tools. I have a complete set of both and it helps in the long run. But after a while the tape does peal off so I'm no longer following that procedure. I'm also not using the SAE as much so I find it's no longer necessary.

Dave

__________________
1970 220D, owned 1980-1990
1980 240D, owned 1990-1992
1982 300TD, owned 1992-1993
1986 300SDL, owned 1993-2004
1999 E300, owned 1999-2003
1982 300TD, 213,880mi, owned since Nov 18, 1991- Aug 4, 2010 SOLD
1988 560SL, 100,000mi, owned since 1995
1965 Mustang Fastback Mileage Unknown(My sons)
1983 240D, 176,000mi (My daughers) owned since 2004
2007 Honda Accord EX-L I4 auto, the new daily driver
1985 300D 264,000mi Son's new daily driver.(sold)
2008 Hyundai Tiberon. Daughters new car
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 01:07 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2021, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
