The wife hit a pothole...97 E300D

In a driving rainstorm, the wife hit a pothole. The car ahead of her lost a hubcap, the car behind her subsequently pulled over. It was a pretty deep pothole. Subcompacts or anything smaller probably would have showed up in Beijing.

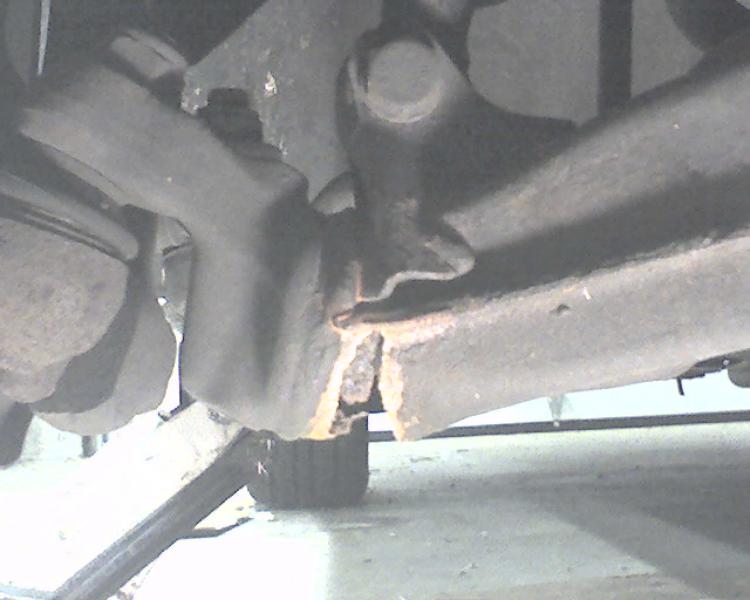

After she got home, I took a look. It looked to me like the car was sitting a little low in the right front. I pulled the wheel, expecting to find a bent sway bar, and found this:

I have a lower control arm on order, but my question is, do I need to compress the spring, or can I get it off the ball joint stud and lower it down to release the spring?

Attached Thumbnails
The wife hit a pothole...97 E300D-img425.jpg
__________________
Mark in MA
05 MB E320CDI 402k Granite Grey Metallic
05 MB E320CDI 267k Black
05 MB E320CDI 232k White
05 MB E320CDI 209k Tectite Grey
99 Dodge 2500 Cummins 5sp 148k
62 Jeep CJ-6 120k
Reply With Quote
  #2
Old 08-19-2008, 09:20 AM
86560SEL's Avatar
Registered User

Join Date: Jan 2003
Location: east Tennessee (southeast USA)
Posts: 3,015
First of all, I would be calling the "city" offices and report this. They are normally held responsible for damages to your car because of potholes. At least they are around here....
Reply With Quote
  #3
Old 08-19-2008, 09:53 AM
tankowner's Avatar
You talkin’ to me?

Join Date: Dec 2007
Location: Columbia, MO
Posts: 907
Quote:
Originally Posted by 86560SEL View Post
First of all, I would be calling the "city" offices and report this. They are normally held responsible for damages to your car because of potholes. At least they are around here....
Dang! I agree . . . and then call your insurance company . . . when they ask who the other party was, tell them it's your local municipality.
__________________
'95 E300D ("Tank") - 231,000 miles
'79 240D ("Biscuit") - 197,250 miles (Sold)
'83 240D ("Ding-Ding") - 217,000 miles (Death by deer)
______________________________________

"Back off, man. I’m a scientist” ~ Peter Venkman
Reply With Quote
  #4
Old 08-19-2008, 10:38 AM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,438
Yikes, it looks like that lower arm was very rusty in that spot where it failed....no wonder it did that. Either way, I'd try and get it paid for by the city. You should have seen some of the holes we had around here until they finally got to fixing them this spring.
__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)
Reply With Quote
  #5
Old 08-19-2008, 11:17 AM
michakaveli's Avatar
Registered User

Join Date: Nov 2002
Location: Columbia, SC
Posts: 1,719
You can try to pursue the municipality for the damages. I would just have an estimate from your indy drafted to present to the municipality. Other than that the replacement is rather straight forward. You WILL need a spring compressor to do this task SAFELY. Others may say different, but after replacing both lower control arms, balljoints, etc.. on my w210 this is what I would recommend. How many miles on the car, as those lower control arm bushings wear out after a while and instill a 55mph wobble in the steering whell, illustrating that they need replacement. If you're mechanically ept, I would recommend replacing both control arms and the balljoints.

Just some friendly advise.
Reply With Quote
  #6
Old 08-19-2008, 12:30 PM
Registered User

Join Date: Feb 2004
Location: Walnut Creek, CA & 1,150 miles S of Key West
Posts: 4,874
You def want the spring puller. I believe you also need to replace the LCA's in pairs too.

Take a long look at the perches too since you've already had rust and fatigue.
__________________
Terry Allison
N. Calif. & Boca Chica, Panama

09' E320 Bluetec 77k (USA)
09' Hyundai Santa Fe Diesel 48k (S.A.)
Reply With Quote
  #7
Old 08-19-2008, 01:04 PM
H-townbenzoboy's Avatar
Now Y2K Compliant

Join Date: Jul 2003
Location: Houston, TX
Posts: 4,338
Wow, and I thought Houston's streets were bad!
__________________
'81 MB 300SD, '82 MB 300D Turbo (sold/RIP), '04 Lincoln Town Car Ultimate

Sooner or later every car falls apart, ours does it later!
-German Narrator in a MB Promotion Film about the then brand new W123.
Reply With Quote
  #8
Old 08-19-2008, 01:12 PM
Registered User

Join Date: Jan 2003
Location: Reno/Sparks, NV
Posts: 3,063
Yup, watch out for those LCA's, they rust from the inside out. Have them replaced and inspect the spring perch area underneath the coating. I'd be surprised if there's no rust.
__________________
2004 VW Jetta TDI (manual)

Past MB's: '96 E300D, '83 240D, '82 300D, '87 300D, '87 420SEL
Reply With Quote
  #9
Old 08-19-2008, 01:59 PM
Hatterasguy's Avatar
Zero

Join Date: Nov 2002
Location: Milford, CT
Posts: 19,318
I'd go after the city, they usualy pay for stuff like this.
__________________
1999 SL500
1969 280SE
2023 Ram 1500
2007 Tiara 3200
Reply With Quote
  #10
Old 08-19-2008, 02:04 PM
Registered User

Join Date: Jan 2003
Location: Reno/Sparks, NV
Posts: 3,063
I think you can have the city pay for the one control arm that's broken, but that's probably it.
__________________
2004 VW Jetta TDI (manual)

Past MB's: '96 E300D, '83 240D, '82 300D, '87 300D, '87 420SEL
Reply With Quote
  #11
Old 08-19-2008, 03:02 PM
Registered User

Join Date: Sep 2006
Location: MA
Posts: 543
Not pursuing the town, for a variety of reasons:
1) It was not clear negligence on the town's part. I drove that stretch just that morning and it was fine. The bizarre weather and excessive rain have wreaked havoc in many areas.

2) No time to pursue litigation.

3) No time to take to a mechanic.

4) Don't even have an indy. I do all my own work.

5) $200 for a LCA is not too bad, I get the luxury of knowing exactly what is replaced, and get the chance to inspect my suspension in general.


You might think 3) and 4) conflict, but I can certainly get alot more done at home than I can waiting for vehicles at a shop, taking time off work, arranging transportation, etc
__________________
Mark in MA
05 MB E320CDI 402k Granite Grey Metallic
05 MB E320CDI 267k Black
05 MB E320CDI 232k White
05 MB E320CDI 209k Tectite Grey
99 Dodge 2500 Cummins 5sp 148k
62 Jeep CJ-6 120k
Reply With Quote
  #12
Old 08-19-2008, 04:10 PM
Tradesman with2MB diesels

Join Date: Feb 2007
Location: hickory hills il.
Posts: 174
Don't let the perches scare you

As posted previously, make sure to check those perches. You will have the springs off anyway. It is fairly cut and dry as to replacing them. Search spring perches and there is a lot of info. Watch those upper control arms. I tried to remove one to gain more room for the perch job and broke the bolt and had to replace the hole arm. The passenger side UCA is a real bear. I had to remove the whole computer to gain access to the nut. Good luck Jim
__________________
1997 E300D Wife's daily driver
1985 300SD my daily driver
1999 Expedition family road trip and material hauler
Reply With Quote
  #13
Old 08-19-2008, 04:16 PM
turbobenz's Avatar
Registered User

Join Date: Nov 2007
Location: Cameron Park CA
Posts: 1,874
I wouldnt go after the city either. Just deal with it yourself and it will be a lot less stressful.
__________________
1981 300SD 512k OM603


Reply With Quote
  #14
Old 08-19-2008, 04:21 PM
michakaveli's Avatar
Registered User

Join Date: Nov 2002
Location: Columbia, SC
Posts: 1,719
Quote:
Originally Posted by Big Jim View Post
As posted previously, make sure to check those perches. You will have the springs off anyway. It is fairly cut and dry as to replacing them. Search spring perches and there is a lot of info. Watch those upper control arms. I tried to remove one to gain more room for the perch job and broke the bolt and had to replace the hole arm. The passenger side UCA is a real bear. I had to remove the whole computer to gain access to the nut. Good luck Jim
Good Point with the UCA's... getting that rear nut into place and holding it there was a PITA!!!! nothing like masking tape on a woman's fingers to hold the nut in place while you screw it in..... that didn't sound right did it? But that's how I was able to complete the UCA on the passenger side.
Reply With Quote
  #15
Old 08-19-2008, 05:44 PM
pawoSD's Avatar
Dieselsüchtiger

Join Date: Oct 2004
Location: Grand Rapids, MI
Posts: 15,438
I agree on the being able to get a lot more done yourself than waiting for a shop, its so true. Thats why I have less than average sympathy for people who say "I am selling my older MB because I don't have time to work on it"....etc....overall the amount of time they require is not that much, unless you work reeeeally slow.

__________________
-diesel is not just a fuel, its a way of life-
'15 GLK250 Bluetec 118k - mine - (OC-123,800)
'17 Metris(VITO!) - 37k - wifes (OC-41k)
'09 Sprinter 3500 Winnebago View - 62k (OC - 67k)
'13 ML350 Bluetec - 95k - dad's (OC-98k)
'01 SL500 - 103k(km) - dad's (OC-110,000km)
'16 E400 4matic Sedan - 148k - Brothers (OC-155k)
