OM606 Engine Mount - The Inside Story...

This is for Chad...

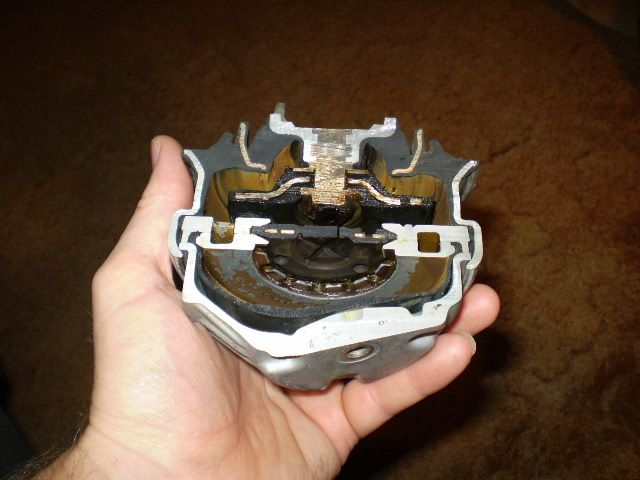

If you were ever curious about what lies inside an OM606 engine mount then here's your answer. I took an old, collapsed mount off my car, clamped it into the bandsaw and cut it in half. The inside contained about 1/2 cup of bad smelling brown fluid. Strangely enough, it was all water soluable and it rinsed out quite clean in the sink as you can see here:




Last edited by KarTek; 09-22-2008 at 07:01 AM.
Reply With Quote
  #2
Old 09-21-2008, 10:47 PM
C Sean Watts's Avatar
NOCH EIN PILS!!

Join Date: Mar 2006
Location: NC
Posts: 1,318
I didn't smell mine.

But then, I didn't cut them open either. I read the fluid is some type of silicone. Was it thick and slippery?
__________________
1987 300D (230,000 mi on a #14 head-watching the temp gauge and keeping the ghost in the machine)
Raleigh NC - Home of deep fried sushi!
Reply With Quote
  #3
Old 09-21-2008, 11:27 PM
Registered User

Join Date: Feb 2004
Location: Walnut Creek, CA (one day 6052'53.93"N, 15049'39.24"W)
Posts: 4,865
Evan - Was the liquid in the upper half only or upper and lower?
__________________
Terry Allison
N. Calif.

09' E320 Bluetec 77k
Reply With Quote
  #4
Old 09-21-2008, 11:44 PM
Registered User

Join Date: Oct 2005
Posts: 4,263
It looks like oil is contained in the rubber part on each half, and there would be pressurized gas between the rubber bladder and the metal case in the bottom of each photograph.
Reply With Quote
  #5
Old 09-22-2008, 07:13 AM
KarTek's Avatar
<- Ryuko of Kill La Kill

Join Date: Jun 2007
Location: Bahama/Eno Twp, NC
Posts: 3,248
In all fairness, it probably wasn't the liquid that smelled, rather the rubber burning slightly as it was cut by the band saw.

The liquid was slick but not thick - about the consistancy of water or light oil, it dripped readliy out of the cut line. The fluid was mostly in the bottom of the mount but there is also an "X" shaped perforation in the rubber diaphram between the sections which would allow the fluid to readily pass between them. It seemed like only a small amount leaked out when I opened it up. By my estimation, there should have been more in there based on the size of the interior cavity.

I detected no release of a gas of any kind during the cutting. There is actually a weep hole in the bottom of the mount so no gas or anything else could be contained between the bladder and the metal housing.

I believe the load is actually suspended by the concentric rings of rubber and metal at the top and dampened by the liquid in the bottom like a shock absorber. The vibration comes when the rubber weakens enough to allow the inner parts to come in contact with one another.
Reply With Quote
  #6
Old 09-22-2008, 10:51 AM
Chad300tdt's Avatar
SE pa BenzFest 8/19/2017

Join Date: May 2007
Location: North Wales, PA
Posts: 4,000
Thanks for the pic Evan. Beautiful job cutting it in half. It looks like a cutaway drawing it's so clean.
