It`s really not a good idea pouring fuel from, the dirty filter to the clean one. You will notice that there are a row of holes around the top of the filter and one large hole in the center.

Now Iam not out at the car to re orientate my self which way the fuel flows in and out of the filter. lets assume it flows in from the small holes and out the large one to the IP.

Now when you pour the fuel out of the old into the new filter. how do you separate dirty from clean fuel. how do you only pour from the large hole w/o it coming out of the small holes?

Also with that kind of thinking, it would be a good idea to pour oil out of the old oil filter to the new to pre fill it. after all it would be clean coming out of the center hole there also?


Now when changing the spin on filter, just fill it to the top and screw it on. you can use ATF, Diesel purge, Diesel. I usually don`t have problems restarting when I change them.
I fill the new filter and have it ready to install before I remove the old one.
pull off the old, screw one the new, and start.

Charlie

__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works

update: I cracked/loosened the injector lines on two of the injectors. Do I have to crank it until fuel comes out of the lines and then re-tighten them? Thanks for all the help
Charlie

I always crack them 1 at a time, and crank till I get fuel at
each one. Then glow and try to start.

__________________
81 Mercedes 300SD 289k.......SOLD
82 Mercedes 300CD 252k......slow ride

82 mercedes 300 SD...mi Unknown
83 Mercedes 300D ????ksniff..gone too
84 Mercedes 300D 148k........SOLD
85 Mercedes 300TD 386k and holding some one elses project

[quote=charmalu;2132753]It`s really not a good idea pouring fuel from, the dirty filter to the clean one. You will notice that there are a row of holes around the top of the filter and one large hole in the center.

Now when you pour the fuel out of the old into the new filter. how do you separate dirty from clean fuel. how do you only pour from the large hole w/o it coming out of the small holes?

Also with that kind of thinking, it would be a good idea to pour oil out of the old oil filter to the new to pre fill it. after all it would be clean coming out of the center hole there also?

Obviously one wouldn't wish to introduce used oil into a fresh oil change, however, the diesel is not going to be circulating in the engine for the next 3000 miles, it will be so much exhaust in a couple miles.
Quite possibly my fuel system is cleaner than what you have experienced.
First filter change I poured the fuel from the filter into a clear plastic container (quart sized) I allowed it it sit for about 15 minutes, then when I examined it, There was no sediment or cloudy/separation issues. I also cut the old filter apart, and the filter element was clean. Clean enough where I could not really tell which way the fuel traveled. Certainly there was so sediment or particles. I guess it just seemed like the cleanest diesel I had available, as it had at least gone through the primary, and getting diesel from my can could be far worse. Using diesel purge or ATF seems like it would just add cost to the filter change. Maybe I'll get that plastic cup out for the next one, now that I am imagining all the bad things that could happen.

x2 on cracking one injector at a time. I tried doing all four on my machine once, and it didn't work at all after MANY cranks, tried one at a time and was done in 10 minutes

If you remove your filter and spray wd 40 directly into the intake your car will run on it as long as you spray. This will get it started and you can keep spraying until the system is bled and you can stop spraying.

__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.

Ok, spray into the air filter? This is not like using ether is it? I can't believe that this is been this much of a headache.

Save the time and do all five at once..........

..........or, fill the secondary to overflowing just prior to bolting it up. Absolutely no bleeding of air required.

I had to get a new battery. Ok, crack all injector lines, crank until fuel comes out, re-tighten lines. And that should do it. I'm off to get a new battery. Unfortunately, this is my only car so I'm on foot. Thanks again for all the help.
Charlie

I got her running! Thanks for all the help!!

Charlie

Great..............



now, don't ever do that again

__________________
81 Mercedes 300SD 289k.......SOLD
82 Mercedes 300CD 252k......slow ride

82 mercedes 300 SD...mi Unknown
83 Mercedes 300D ????ksniff..gone too
84 Mercedes 300D 148k........SOLD
85 Mercedes 300TD 386k and holding some one elses project

how do you get the primer to pump? Is there a handle or something to pull out?

Its threaded in so turn it CCW untill it pulls out and start pumping. When done pumping, push it back down and tighten.

__________________
the sooner you start... the sooner you'll get done If it ain't broke, don't fix it.. Its always simpler to tell the truth...
2007 Honda Accord EX
2007 Honda Accord SE V6
96 C220
97 Explorer - Found Another Home
2000 Honda Accord V6 - Found Another Home
85 300D - Found Another Home
84 300D - Found Another Home
80 300TD - Found Another Home
Previous cars:
96 Caravan
87 Camry
84 Cressida
82 Vanagon
80 Fiesta
78 Nova
Ford Cortina
Opel Kadet
68 Kombi
Contessa

Some engines (OM602, for example) don't have a manual pump. No choice on these but to use the starter.

__________________
1987 W201 190D

87 300 TDT is M603 right?

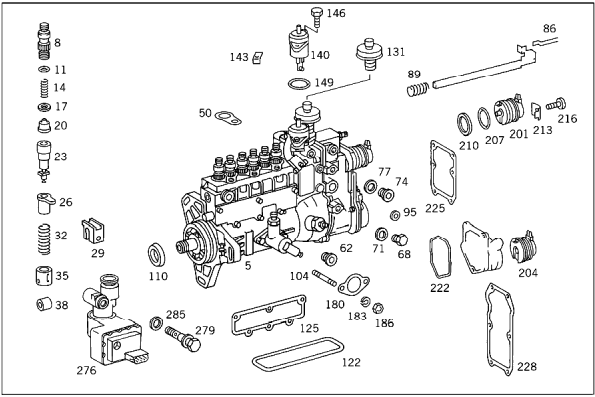

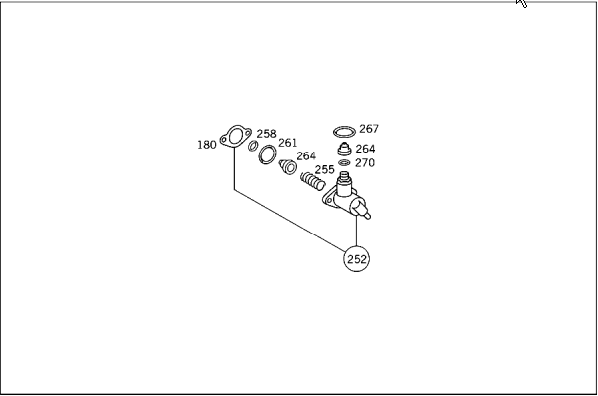

AND as you will note NO hand operated primer pump Either.

Attached Thumbnails
