Need a part number/diagram

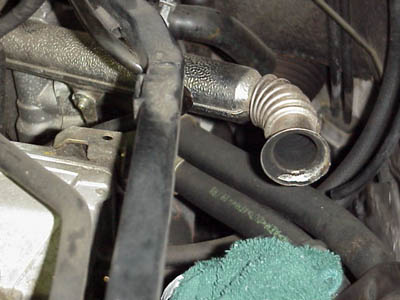

I have looked and looked, and can't seem to find the part # for this clamp, or a diagram so I can figure it out myself. It is the clamp that attached the 1" pipe to the intake manifold.

This is for a 1999 E300TD

Thanks for the photo's Lightman, I swiped them from you.

Thanks!
Attached Thumbnails
Need a part number/diagram-clamp.jpg   Need a part number/diagram-corrugated.jpg
Reply With Quote
  #2
Old 04-10-2009, 05:08 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 25,182
It may be in here.
Here is the main index:
http://www.detali.ru/cat/oem_mb0.asp?TP=1

More specific in these sections:
http://www.detali.ru/cat/oem_mb1.asp?TP=1&F=210025&M=606%2E962&GA=722%2E608&CT=M&Cat=19T&SID=14
__________________
84 300D, 82 Volvo 244Gl Diesel

Last edited by Diesel911; 04-10-2009 at 05:16 PM.
Reply With Quote
  #3
Old 04-10-2009, 05:59 PM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554

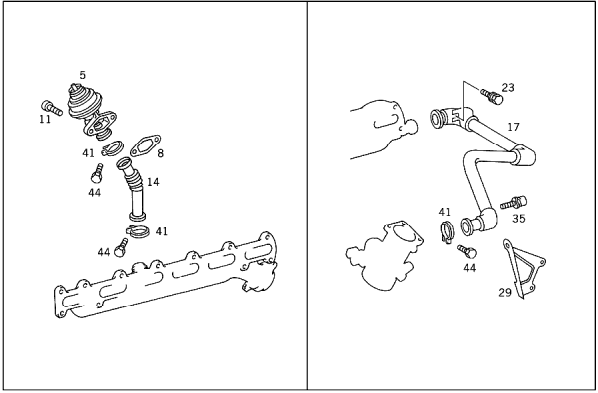

From an E300 (USA version)

See if this helps.

Under Exhaust Gas Recirculation:

Clamp(s) are #41
Attached Thumbnails
Need a part number/diagram-screenhunter_02-apr.-10-16.56.jpg   Need a part number/diagram-screenhunter_01-apr.-10-16.56.gif
__________________
'84 300SD sold
124.128
Reply With Quote
