Starter Wiring Harness question: Missing wire?
I picked up 1979 300D and trying to get it started. I installed new #3 gauge Hot wire Battery lead to starter and cleaned wiring harness attached to soleniod. I noticed that it had three yellow wires attached but the red wire had been cut off. I don't know where that is supposed to go. Waiting for Wiring diagram from MBUSA. Car has remote starter button to the left of the steering column. I don't know if that is standard install or add-on.

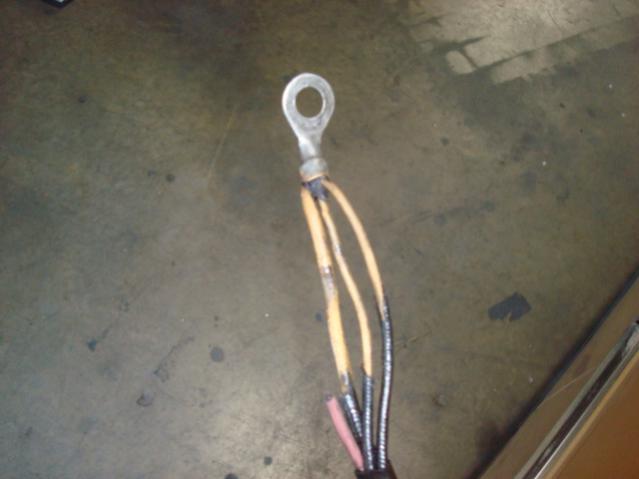

I had glow pulg lite before I changed terminal now I don't Any suggestions? See attached photo |
#2
|
|||
|
|||
Can't help on the wire but the remote start button is definitely an add-on.
__________________
1977 300d 70k--sold 08 1985 300TD 185k+ 1984 307d 126k--sold 8/03 1985 409d 65k--sold 06 1984 300SD 315k--daughter's car 1979 300SD 122k--sold 2/11 1999 Fuso FG Expedition Camper 1993 GMC Sierra 6.5 TD 4x4 1982 Bluebird Wanderlodge CAT 3208--Sold 2/13 |
#3
|
|||
|
|||
Haynes' (Mercedes Benz Diesel 123 Series) has a diagram for your year/model. It shows these connections to the starter:
Black- Battery + (2)Red - Alternator (1)Red - Ignition Key (1)Violet - Air Coditioner Relay & Glow Plug Relay It sound like there may have been problems with the ignition switch and a separate "rig" was set up for starting and glow plug. (I hate finding rigged crap like this on a car. It makes me wonder what other maintenence isn't up to par.) Hope it's easily sorted out.
__________________
Sam 84 300SD 350K+ miles ( Blue Belle ) |
