It's not the multi function switch

i just changed out the multi function [MF] switch to remedy the non- functioning intermittent wiper setting.
Intermittent still does not work with the tested working, used MF.
All other functions are working the same as the original
WTF?
Is there something else in that circuit that could cause this?
Thanks.
__________________
1981 240D 132k 4 spd manual http://www.fuelly.com/smallsig-us/40338.png
Finally got the clutch bled!
2004 VW Jetta TDI 5 speed 272k
Reply With Quote
  #2
Old 06-27-2009, 02:27 PM
79Mercy's Avatar
Registered User

Join Date: Mar 2008
Location: Florida
Posts: 4,128
replace the relay...
__________________
1985 300TD Turbo Euro-wagon
1979 280CE 225,200 miles
1985 300D Turbo 264,000 miles
1976 240D 190,000 miles
1979 300TD 220,000

GONE but not forgotten
1976 300D 195,300 miles
1983 300D Turbo 175,000 miles

http://i42.photobucket.com/albums/e3...e485-1-2-1.jpg
Reply With Quote
  #3
Old 06-27-2009, 02:28 PM
fruitcakesa's Avatar
Registered User

Join Date: Jun 2008
Location: Vermont
Posts: 1,128
Where is it located?
__________________
1981 240D 132k 4 spd manual http://www.fuelly.com/smallsig-us/40338.png
Finally got the clutch bled!
2004 VW Jetta TDI 5 speed 272k
Reply With Quote
  #4
Old 06-27-2009, 02:29 PM
79Mercy's Avatar
Registered User

Join Date: Mar 2008
Location: Florida
Posts: 4,128
remove the cluster and you'll see it bolted to the firewall. Let me find a pic.....
__________________
1985 300TD Turbo Euro-wagon
1979 280CE 225,200 miles
1985 300D Turbo 264,000 miles
1976 240D 190,000 miles
1979 300TD 220,000

GONE but not forgotten
1976 300D 195,300 miles
1983 300D Turbo 175,000 miles

http://i42.photobucket.com/albums/e3...e485-1-2-1.jpg
Reply With Quote
  #5
Old 06-27-2009, 02:32 PM
79Mercy's Avatar
Registered User

Join Date: Mar 2008
Location: Florida
Posts: 4,128
here is the relay

http://catalog.peachparts.com/ShopByVehicle.epc?q=&yearid=1982%40%401982&makeid=63%40%40MERCEDES+BENZ%40%40X&modelid=6142%3AMBC%7C1489%3AED%7C10000129%40%40240D&keyword=wiper&subcatid=P:242127@@Wiper+Relay&mode=PA
__________________
1985 300TD Turbo Euro-wagon
1979 280CE 225,200 miles
1985 300D Turbo 264,000 miles
1976 240D 190,000 miles
1979 300TD 220,000

GONE but not forgotten
1976 300D 195,300 miles
1983 300D Turbo 175,000 miles

http://i42.photobucket.com/albums/e3...e485-1-2-1.jpg
Reply With Quote
  #6
Old 06-27-2009, 02:36 PM
fruitcakesa's Avatar
Registered User

Join Date: Jun 2008
Location: Vermont
Posts: 1,128
no pic, does not seem to available .
I will go look for mine
Thanks
__________________
1981 240D 132k 4 spd manual http://www.fuelly.com/smallsig-us/40338.png
Finally got the clutch bled!
2004 VW Jetta TDI 5 speed 272k
Reply With Quote
  #7
Old 06-27-2009, 02:37 PM
79Mercy's Avatar
Registered User

Join Date: Mar 2008
Location: Florida
Posts: 4,128
sorry try this link

http://catalog.peachparts.com/ShopByVehicle.epc?q=&yearid=1982@@1982&makeid=63@@MERCEDES+BENZ@@X&modelid=6142%3AMBC%7C1489%3AED%7C10000129@@240D&keyword=wiper@@wiper&catid=All@@All&subcatid=P%3A242127@@Wiper+Relay&applicationid=W0133-1626987&mode=PA
__________________
1985 300TD Turbo Euro-wagon
1979 280CE 225,200 miles
1985 300D Turbo 264,000 miles
1976 240D 190,000 miles
1979 300TD 220,000

GONE but not forgotten
1976 300D 195,300 miles
1983 300D Turbo 175,000 miles

http://i42.photobucket.com/albums/e3...e485-1-2-1.jpg
Reply With Quote
  #8
Old 06-27-2009, 03:39 PM
fruitcakesa's Avatar
Registered User

Join Date: Jun 2008
Location: Vermont
Posts: 1,128
You right!

Well it took me two tries without a pic to get the correct relay out of my 81 but I got it , put it in the 82 and it works!
Boy, I tell you, if I had known about the relay first I would have saved myself an hour of wrenching and the price of the used MF.
Oh well it gives me a chance to look at the cars innards occasionally and I love learning new stuff.
Thats the beauty of the forum.
Thanks.
__________________
1981 240D 132k 4 spd manual http://www.fuelly.com/smallsig-us/40338.png
Finally got the clutch bled!
2004 VW Jetta TDI 5 speed 272k
Reply With Quote
  #9
Old 06-27-2009, 03:41 PM
79Mercy's Avatar
Registered User

Join Date: Mar 2008
Location: Florida
Posts: 4,128
no problem...
__________________
1985 300TD Turbo Euro-wagon
1979 280CE 225,200 miles
1985 300D Turbo 264,000 miles
1976 240D 190,000 miles
1979 300TD 220,000

GONE but not forgotten
1976 300D 195,300 miles
1983 300D Turbo 175,000 miles

http://i42.photobucket.com/albums/e3...e485-1-2-1.jpg
Reply With Quote
  #10
Old 06-27-2009, 05:32 PM
Registered User

Join Date: Apr 2005
Location: Austin, TX
Posts: 631
Quote:
Originally Posted by fruitcakesa View Post
Well it took me two tries without a pic to get the correct relay out of my 81 but I got it
Hey fruitcake, do you still have your old non-working relay? Can I buy it from you?

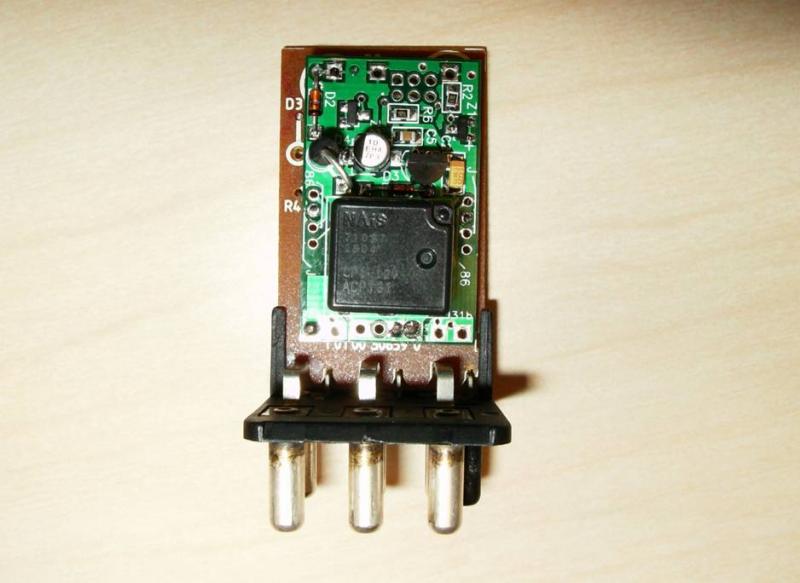

I made this little circuit board that I retrofit into the old relays. It brings them back to life and adds a user adjustable intermittent time delay. I need some more old relays to retrofit.

Let me know...
Attached Thumbnails
It's not the multi function switch-mounted.jpg
__________________
Bob
'82 300D Petrol B-G Metallic
