Did I install my alternator correctly?

This is for my 1982 240D

Alternator was not putting out full charge and the alternator fan was sometimes hitting the alternator, making clanging sounds. Decided I needed to replace it.

When I pulled the pulley off, from the order of alternator to the nut, I had alternator, fan, spacer, another spacer, pully side, other pully side, spacer, lock washer, then nut.

When at the parts store, two issues. The guy there said first off the spacer was in the wrong order, as well as the woodruff key would not fit the new alternator, but that is ok because it is not needed.

New alternator is installed and working fine, but just wanted to make sure I will not run into problems - wanted to confirm a couple of things:


1. The parts store guy had the alternator, then spacer, fan, another spacer, pulley side, other pully side, spacer, lock washer, then nut. Is this way correct or should it go the way the old alternator came off?

2. Is it true I can just leave off the woodruff key and not have any trouble?

3. The alternator does get hot - but have not touched a lot of alternators, so dont know if this is normal lol.

4. Not sure how tight the belt should be - right now I can push down about 1/2 inch flex between pulleys - does that sound about right?

Thanks all, I think i should be fine but just wanted to check with the experts.

Reply With Quote
  #2
Old 10-19-2009, 01:59 PM
280EZRider's Avatar
No Dumping

Join Date: Jul 2007
Location: Southern Oregon Valley
Posts: 1,562
The question of a spacer between the alt body and fan can be answered by clearence between the two, and belt alignment. The rest sounds good. My question is, "Unless the shaft is tapered, what keeps the fan from slipping on the shaft w/o the woodruff key?"
__________________

Don't Chrome them; polish them
Reply With Quote
  #3
Old 10-19-2009, 02:41 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820

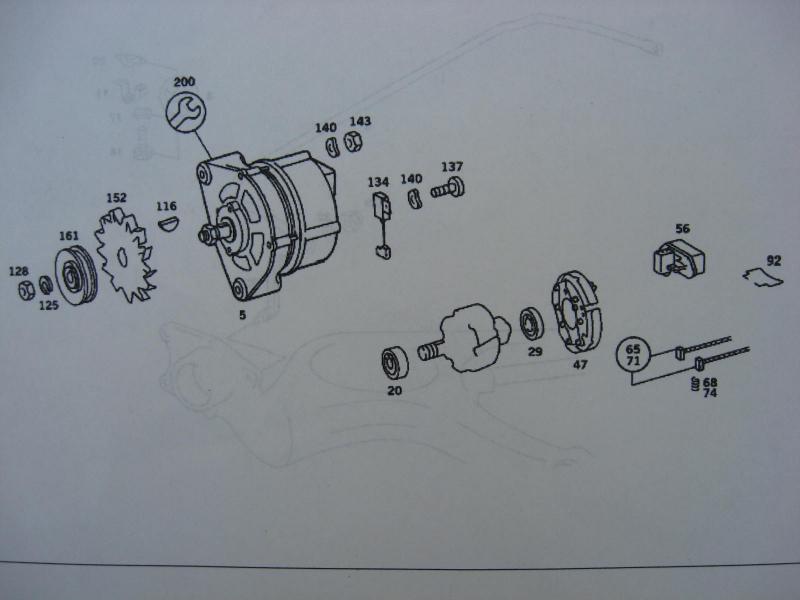

This is from the epc.
