Easy vac line question

Ok seems like the vac diagram sticky is all but broke,
I did a valve job on my 81 SD this weekend and the vac lines that go in the junction plug on the top of the valve cover made their way out and I have no idea how they go back in. I only found three. is that all there is, bucause under the black box every port has a hose. My car wouldnt shut down today on a few errands so hopefully it is because of these and not some other line I gotta trace down.

Reply With Quote
  #2
Old 12-07-2009, 09:35 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Yeah, only three lines, two are open.
Attached Thumbnails
Easy vac line question-img_2808.jpg
__________________
83 SD

84 CD
Reply With Quote
  #3
Old 12-07-2009, 09:38 PM
offalot's Avatar
Registered User

Join Date: May 2009
Location: Madison, OHIO
Posts: 120
Cool, thanks. That will help. So out of curiosity why is there openings with hoses behind them?
Reply With Quote
  #4
Old 12-08-2009, 12:39 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
I can only speculate they had a bunch of these around, there's no harm in the open orifices.

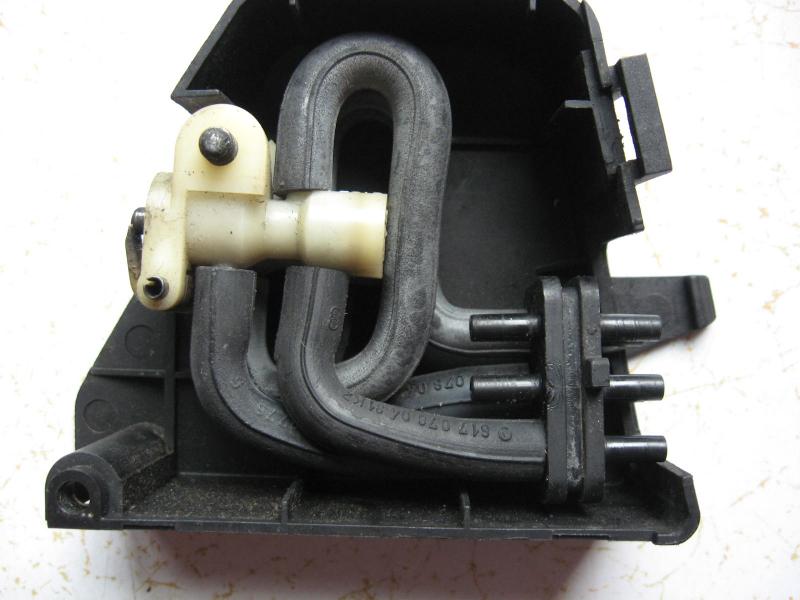

This is a pic of the bottom of the unit that came off my SD.
Attached Thumbnails
Easy vac line question-black-box.jpg
__________________
83 SD

84 CD
Reply With Quote
  #5
Old 12-08-2009, 02:37 PM
Phil's Avatar
Registered User

Join Date: Dec 2004
Location: Sonoma County, California
Posts: 1,064
This picture should help. This is the way those lines are on my car. Not all ports are used as you can see, I think they are to vent in certain situations.
Attached Thumbnails
Easy vac line question-vac-valv12-.jpg
__________________
1983 300SD
200000miles
Reply With Quote
  #6
Old 12-08-2009, 08:06 PM
offalot's Avatar
Registered User

Join Date: May 2009
Location: Madison, OHIO
Posts: 120
Thanks guys. They were a little mixed up, car is shutting off like normal now.
