Mercedes tools ... Where to buy?

Hello fine people,

I hope you had a great Christmas and I wish you all a great new year 2010.


I wanted to order tools for my W123 300D from Peach Parts.
Sadly they do not ship to outside USA.

I am in Sydney-Australia and need help with some tools please?

Is there any other place?

Cheers

Fitian
<><

Reply With Quote
  #2
Old 12-27-2009, 07:16 PM
okyoureabeast's Avatar
Rogue T Tolerant

Join Date: Jul 2009
Location: North America
Posts: 1,651
What type of tools are you looking to buy?
__________________
-Typos courtesy of my mobile phone.
Reply With Quote
  #3
Old 12-27-2009, 08:17 PM
Registered User

Join Date: Sep 2006
Location: Australia
Posts: 52
Mercedes tools

Hi Adam,

I am after the notched deep socket for the drive shaft nut.


Thanks


Fitian
<><
Reply With Quote
  #4
Old 12-27-2009, 08:23 PM
Registered User

Join Date: Oct 2005
Posts: 4,263
**********.com may ship internationally.
Reply With Quote
  #5
Old 12-27-2009, 08:24 PM
Registered User

Join Date: Oct 2005
Posts: 4,263
Well that didn't work very well, now did it.
Reply With Quote
  #6
Old 12-27-2009, 09:18 PM
okyoureabeast's Avatar
Rogue T Tolerant

Join Date: Jul 2009
Location: North America
Posts: 1,651
I always wonder why the forum ******* its out.

It's not like you were swearing

Is the link www.m e r c e d e s s o u r c e.com ?
__________________
-Typos courtesy of my mobile phone.
Reply With Quote
  #7
Old 12-27-2009, 09:55 PM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
MB300D81,
I am about 500 miles (800km) south west from you. I have at times been able to borrow tools like that from merc mechs in the local area. I would have thought there would be an independent place some where near you. The local tafe has lots of good tools as well. Its amazing what a slab of beer will get you!!
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #8
Old 12-27-2009, 09:56 PM
Bryan Automotive

Join Date: Oct 2008
Location: Bryan/College Station, Texas
Posts: 44
baum tools
Reply With Quote
  #9
Old 12-27-2009, 10:12 PM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
You could also try the Mercedes car club of NSW or the European car club. Try googleing pages from Australia baum tools or some thing like that.
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #10
Old 12-27-2009, 10:19 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 30,033
Confused?
I looked up removal of the what in the US we call the drive Drive Shaft (Propeller Shaft) in the Manual and could find no Slotted Socket For that.

There is a Slotted Socket that goes on the Joint Attached to the Differential.

There is a slotted Socket that goes on the Rear Wheel Bearing Retainer Ring.

Whic one of the below sockets is it? Or is there another one?
Attached Thumbnails
Mercedes tools ... Where to buy?-differential-u-joint-socket.jpg   Mercedes tools ... Where to buy?-rear-wheel-pin-wrench-b.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #11
Old 12-27-2009, 10:25 PM
Bryan Automotive

Join Date: Oct 2008
Location: Bryan/College Station, Texas
Posts: 44
that looks like rear wheel bearing slotted socket to me.
Reply With Quote
  #12
Old 12-28-2009, 01:18 AM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 30,033
Quote:
Originally Posted by rooster6224 View Post
that looks like rear wheel bearing slotted socket to me.

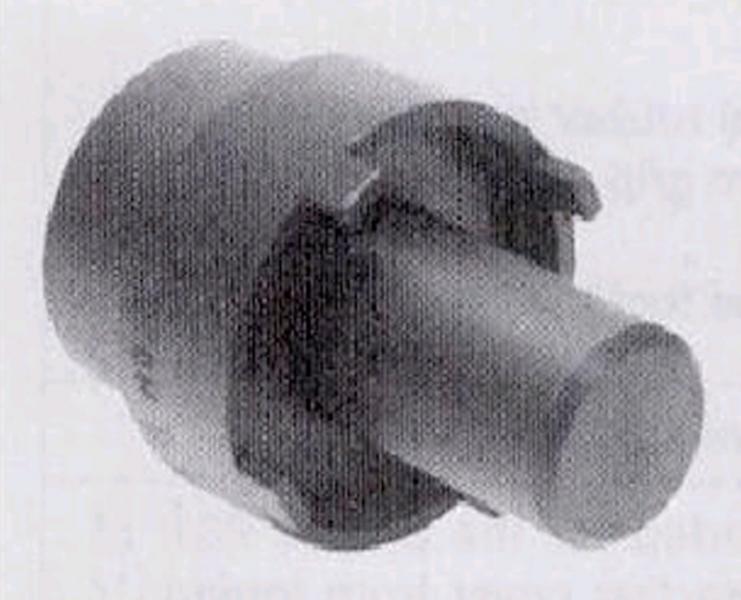

The big one in the 2nd pic is the wheel Bearing Sloted Socket.
The one in the first pic is not.

I was trying to find out if there is another socket or down under they have different names for the parts of the Car.

Here a Drive Shaft is the name for the shaft or Shafts between the Transmission and the Differential.
However, while the CV Axles are also Drive Shafts I have not heard of them called that here in the US.
So I was curious as the were he would use a Socket on the Drive Shaft.

On eBay Zdmak and El Paso Tool both sell Baum Tools (I bought from them and when the package arrived it was from Baum Tools). Also the Glow Plug Reamer I bought from El Paso Tool was made by Baum but cost less then if you bought directly from Baum Tools.
There is another company that makes Mercedes Tools called Sir Tool.
And, then there is the expensive Samstag that sells them also.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #13
Old 12-28-2009, 05:41 AM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
Diesel,
The shaft from the gearbox to the diff is sometimes called the tail-shaft down here. The shafts from the diff to the wheels are sometimes called the drive shafts. I guess he is referring to the wheel bearing tool.
At about 400k miles I had bearing noise develop. Didnt have the tool so I drilled a 1/8 hole into the space in the housing between the bearings, threaded the hole, fitted a grease nipple & filled it with grease until old black grease was coming out the seal, bearing noise went & it did 400k miles after that with no probs.
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #14
Old 12-28-2009, 06:35 AM
Registered User

Join Date: Sep 2006
Location: Australia
Posts: 52
You guys rock.

Thanks for all the replies.

It is upsetting that peach parts do not ship outside USA though. I could have ordered all the tools for my diesels from him. They did not even give a reason why they do not ship overseas.

Two weeks ago I wanted to replace the auto tranny back oil seal and I had to get that nutched nut out. It holds the flange where the flex disc mounts.

I bought the seal together with a 30mm star nut to replace the notched nut. I could not remove the notched nut "did not have the tool" so I drilled tiny hole in the body of the nut and cracked it and it came off.

I could not wait until I get the right tool as the oil seal was leaking badly and it had to be replaced. Now I need the tool to keep for my other car and in case I need to work on the other end of the tail shaft "drive shaft".

I will try mercedes source and will report back.

Thanks you all

Have a happy new year 2010

Fitian
<><

Last edited by MB300D81; 12-28-2009 at 06:42 AM.
Reply With Quote
  #15
Old 12-28-2009, 06:35 PM
okyoureabeast's Avatar
Rogue T Tolerant

Join Date: Jul 2009
Location: North America
Posts: 1,651
Quote:
Originally Posted by MB300D81 View Post
You guys rock.

Thanks for all the replies.

It is upsetting that peach parts do not ship outside USA though. I could have ordered all the tools for my diesels from him. They did not even give a reason why they do not ship overseas.

Two weeks ago I wanted to replace the auto tranny back oil seal and I had to get that nutched nut out. It holds the flange where the flex disc mounts.

I bought the seal together with a 30mm star nut to replace the notched nut. I could not remove the notched nut "did not have the tool" so I drilled tiny hole in the body of the nut and cracked it and it came off.

I could not wait until I get the right tool as the oil seal was leaking badly and it had to be replaced. Now I need the tool to keep for my other car and in case I need to work on the other end of the tail shaft "drive shaft".

I will try mercedes source and will report back.

Thanks you all

Have a happy new year 2010

Fitian
<><
Email Phil and see what he can do. I betcha it is just some simple problem that an email could fix.
