Any tips on the infamous W123 glovebox door?

In particular the one on my 240 won't latch closed properly. Kinda makes it unusable if you have to fiddle with it every time you want to close it. At the junkyard the latch was apparently the first thing to be violently ripped out (that was a perfectly good dash ).

So any tips on what's wrong here? Is it a spring or something? How do you take it apart?
Reply With Quote
  #2
Old 01-11-2010, 07:06 PM
Registered User

Join Date: Aug 2005
Location: Palmdale/Ventura, CA
Posts: 813
I had to rebuild/rig mine so it would work better.

When laying open there are some fasteners exposed that allow
the front to be seperated from the back.

You can analyze the latch and decide what is needed from there.

I know I was able to do this with some super glue and scrap plastic.

Was more than ten years ago so the details are foggy.
__________________
80 300D 340K Owned 30 yrs
83 300SD 440K Owned 9 yrs - Daily Driver 150mi/day
02 Z71 Suburban 117,000
15 Toyota Prius 2600 miles
00 Harley Sportster 24k
09 Yamaha R6
03 Ninja 250
Reply With Quote
  #3
Old 01-11-2010, 07:10 PM
sd300td's Avatar
huh?

Join Date: Jul 2007
Location: San Diego
Posts: 1,115
Yep, that latch either jumped its "seat", or the black plastic has worn, became brittle, and no longer holds the latch in place properly. Nothing that can't be fixed with good junkyard replacement parts.

I'm fairly certain there is a DIY article on how to troubleshoot the w123 glovebox. The door is not too difficult to remove, start by unscrewing the visible screws.

The tricky part is removing the metal brackets that hold the door at 90 degrees when open. To remove those you need to turn those flat head screws/tabs 1/4 or 1/2 turn, and pull out when the tab on the screw post aligns with the slot on the door.

Once you get that far you should be able to figure out what the problem is with the latch.

I've had my glovebox door apart more times than I care to remember. That said, I may even have some spare parts laying around.
__________________
1982 240 D, 308,000 - 321,127 miles (sold)
1982 300 TD,166,500 - 226,000 miles
1998 E 320, 120,000 - 144,000 miles
2005 C 230 K, 26,000 - 77,000 miles (sold)
Reply With Quote
  #4
Old 01-11-2010, 07:18 PM
Registered User

Join Date: Feb 2008
Location: DFW area (north side)
Posts: 1,288
I've not done the procedure, but I think what you want is well covered in:

http://www.peachparts.com/Wikka/W123GloveBoxLatch
__________________
Charles
1983 300D, bought new, 215k+ miles, donated to Purple Hearts veterans charity but I have parts for sale: http://www.peachparts.com/shopforum/mercedes-benz-cars-sale/296386-fs-1-owner-83-mb-300d-turbo-rebuild-parts.html
Reply With Quote
  #5
Old 01-11-2010, 09:15 PM
MBeige's Avatar
Registered User

Join Date: Apr 2005
Location: SoCal
Posts: 3,746
I've heard that the small zip ties wrapped around the latch (with the two screws) will allow the glove box door to close up without misalignment (or with minimal misalignment). Haven't tried it yet though. The metal latch gets eroded over time and this allows for some gap between the glove box door and the dash.
Reply With Quote
  #6
Old 01-11-2010, 10:25 PM
thebenzbar's Avatar
Registered User

Join Date: Apr 2005
Location: So. Flo.
Posts: 685
Years ago I saw someone who shaped & formed a tiny amount of jbweld right behind the latch... painted it and his gb door stayed flush when shut.
I never tried it, but it seemed fine...
Reply With Quote
  #7
Old 01-12-2010, 02:24 AM
sd300td's Avatar
huh?

Join Date: Jul 2007
Location: San Diego
Posts: 1,115
Quote:
Originally Posted by MBeige View Post
I've heard that the small zip ties wrapped around the latch (with the two screws) will allow the glove box door to close up without misalignment (or with minimal misalignment). Haven't tried it yet though. The metal latch gets eroded over time and this allows for some gap between the glove box door and the dash.
Patrick, are you talking about the latch piece ("catch"?) visable from inside the glovebox, on top? If so, I've tried adjusting that a few times by unscrewing and sliding for/aft, but still can't get it perfect. I think the old dash's might warp a little as well, making adjustments a little tricky if not impossible.
__________________
1982 240 D, 308,000 - 321,127 miles (sold)
1982 300 TD,166,500 - 226,000 miles
1998 E 320, 120,000 - 144,000 miles
2005 C 230 K, 26,000 - 77,000 miles (sold)
Reply With Quote
  #8
Old 01-12-2010, 09:41 AM
zeke's Avatar
Registered User

Join Date: Sep 2007
Location: The Alamo City, TEXAS
Posts: 1,189
What about the lock in the latch. Is that a part I can get keyed to my VIN from the dealer?
__________________

Current Mercedes
1979 maple yellow 240D 4-speed


Gone and fondly remembered:
1980 orient red 240D 4-speed

Gone and NOT fondly remembered:
1982 Chna Blue 300TD

Other car in the stable:
2013 VW Jetta Sportwagen TDI / 6-speed MT
Reply With Quote
  #9
Old 01-12-2010, 10:49 AM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820

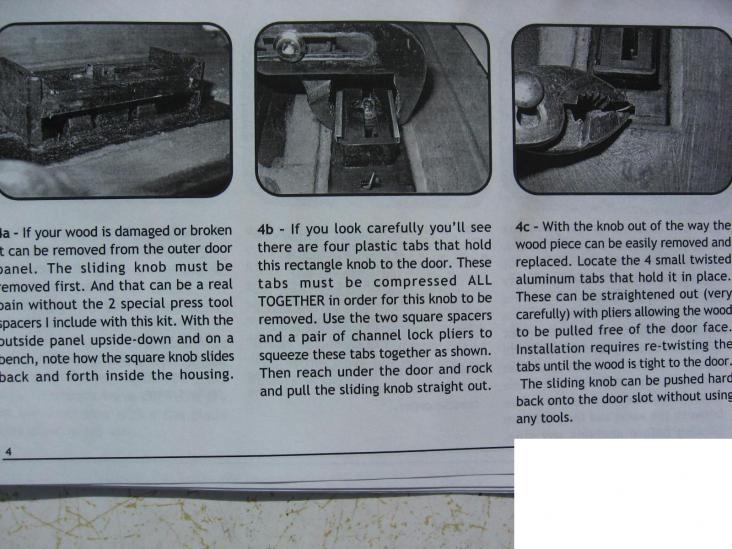

This is all I can locate right now.
Attached Thumbnails
Any tips on the infamous W123 glovebox door?-glove-box-002-cropped.jpg   Any tips on the infamous W123 glovebox door?-glove-box-cropped.jpg
