#1
|
|||
|
|||
603 specific tools needed
I am planning on removing the IP to do a reseal and the crankshaft seal at the same time (along with a new vacuum pump and water pump). I am looking to rent (or borrow) the 3 tools I appear to need the most, those being the injection pump lock, delivery valve socket and the flywheel lock. The water pump pully holder would be nice, too, but I think I might be able to get by with out it, too.
I am thinking about working this over labor day weekend. Thanks, Lee Zook Huntsville AL |
#2
|
||||
|
||||
Tool Program
__________________
'84 300SD sold 124.128 |
#3
|
|||
|
|||
Thanks for your note. I was already aware of the loner thread. I was hoping to get the three tools from one person instead of serially contacting a person at a time trying to find the tools. Since this encompasses several diesel specific items, I thought this forum was an appropriate place to ask.
Lee |
#4
|
||||
|
||||
I am not sure that the Flywheel lock is an essential tool when removing and installing the Fuel Injection Pump. At least I have not read of others using one.
__________________
84 300D, 82 Volvo 244Gl Diesel |
#5
|
|||
|
|||
You are right. It is not needed to remove the IP, however, while I am doing a lot of other front of engine work, I want to replace the front crank shaft seal, which requires removing the pully.
Lee |
#6
|
||||
|
||||
It Ain't the Pulley
It's the Bolt that secures it, threaded into the nose of the Crankshaft.

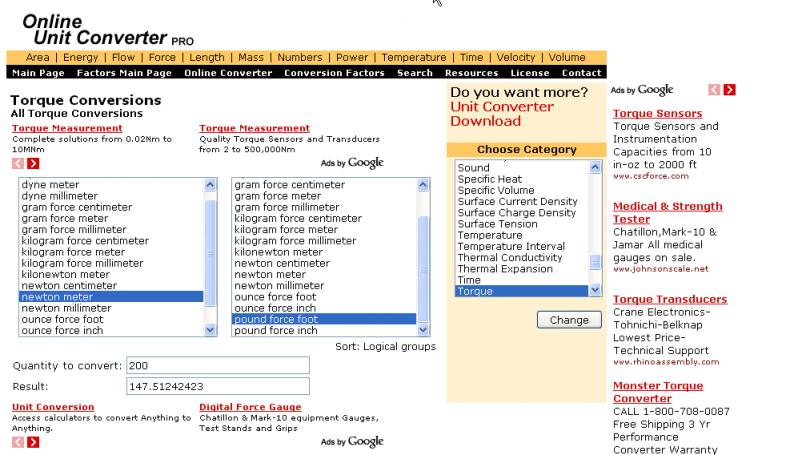

CORRECTION: Nm to Ft lbs below: (Thanks, Sixto) Depends on whether: It's an 8.8 strength bolt (200Nm, THEN 90 degrees) [147.5124 Ft. Lbs,THEN 90 degrees] OR It's a 10.9 strength bolt (320 Nm) [236.0198 Ft. Lbs]
__________________
'84 300SD sold 124.128 Last edited by compress ignite; 08-28-2010 at 12:56 PM. |
#7
|
||||
|
||||
Check that math. 320Nm is 'only' 236 lbft.
Sixto 87 300D |
