Having trouble locating the source of the ATF leak...

This on my 300SDL - I recently changed the fluid and filter. I've put in a new pan gasket and was very thorough in cleaning the mating surfaces of the pan before I re-installed it in the car. I've snugged the bolts down, refilled with fluid and left it for a few weeks while I was travelling. Coming back this week I see the all too familiar puddle of AFT on the passenger side - it looks like the low point is the drain plug but the right side of the pan (pass. side) is pretty wet.

I've just sprayed it with Simple Green and will hose it down later today so I can see it better. Diving under there I saw that the gap around the rubber seal had some fluid in it but not much fluid above the gasket - I'm thinking that it's the gasket that's leaking but again - it's a new one....

Any clues on how to better locate it would be welcome.

Thanks,
James

__________________
1987 Mercedes 300SDL; SOLD
1985 Mercedes 300D; SOLD
2006 Honda Pilot - wife's ride; 122K;
1995 Toyota Land Cruiser - 3X locked; 182K

Last edited by MercFan; 09-02-2010 at 05:40 PM.
Reply With Quote
  #2
Old 09-02-2010, 05:57 PM
Registered User

Join Date: Sep 2006
Location: Middle TN
Posts: 3,827
My leak was from the drain plug. I'd top up the fluid, not be able to see anything leaking then find the fluid down & a puddle on the floor after the car sat for several days. It was dirty under there which didn't help finding the leak. A new copper washer for the plug fixed the leak. Put some cardboard under the pan & see where the first drops hit.
__________________
85SD 240K & stopped counting getting paint. 84SD 180,000. Probably up for sale in the fall 2020. 85TD beginning to repair to DD status.
Reply With Quote
  #3
Old 09-02-2010, 07:06 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,801
It could be that the pan mating surface isn't flat or the gasket is crooked. Drain the fluid in the pan, remove the pan, remove the gasket then check the mating pan edges against a flat surface. Do the same after fitting the gasket.

If that's not it, it might be dipstick tube, bowden cable or cooler return line where they attach to the transmission above the pan mating surface.

There's also a couple of 'big' piston thingies, the secondary pump and the kickdown solenoid on that side of the transmission.



Sixto
87 300D
Reply With Quote
  #4
Old 09-02-2010, 08:17 PM
Yak Yak is offline
Registered User

Join Date: Aug 2009
Location: San Antonio, TX
Posts: 1,711
I vote for the dipstick tube O-ring. Or maybe the banjo bolt washers.

The pan seal is finicky - too much pressure warps it, not enough lets it leak. Good luck isolating it.
Reply With Quote
  #5
Old 09-03-2010, 12:42 AM
92 300D 2.5L OBK #59

Join Date: Feb 2007
Location: Central FL
Posts: 1,108
Did you snug the bolts to spec? Make sure you snug them evenly.
__________________
92 300D 2.5L OM602 OBK #59
Reply With Quote
  #6
Old 09-03-2010, 12:46 AM
Hit Man X's Avatar
I LOVE BRUNETTES

Join Date: Sep 2004
Location: FUNKYTOWN
Posts: 9,087
Thumbs up

You sure it is not the converter seal or that stator bushing up there?

At this point in time, it is probably a multitude of leaks.. not just a single one.
__________________
I'm not a doctor, but I'll have a look.

'85 300SD 245k
'87 300SDL 251k
'90 300SEL 326k

Six others from BMW, GM, and Ford.

Liberty will not descend to a people; a people must raise themselves to liberty.
[/IMG]
Reply With Quote
  #7
Old 09-03-2010, 10:09 AM
MercFan's Avatar
Registered User

Join Date: Nov 2004
Location: Denver, CO
Posts: 994
Quote:
Originally Posted by bobodaclown View Post
Did you snug the bolts to spec? Make sure you snug them evenly.
At this point I probably over-tightened them... had a hard time with such a low setting on my torque wrench so I went 'by feel' - if anything they are too tight by now.
__________________
1987 Mercedes 300SDL; SOLD
1985 Mercedes 300D; SOLD
2006 Honda Pilot - wife's ride; 122K;
1995 Toyota Land Cruiser - 3X locked; 182K
Reply With Quote
  #8
Old 09-03-2010, 10:19 AM
92 300D 2.5L OBK #59

Join Date: Feb 2007
Location: Central FL
Posts: 1,108
I'd wipe everything really well. Then try using some Spray Deodorant (power based). Here's the cut and paste:
To provide contrast color, we would use a "spray deodorant/antiperspirant" that had talcum powder in it's formula. We would spray the suspect parts, seals, gaskets, seams, etc. with enough of the powder to turn everything white. Then we would run the engine and watch the area. As soon as the oil leaks past its defective containment part, it will turn the powder brown. There is your leak. The powder washes off with detergent and water.
link to site:http://forums2.gardenweb.com/forums/load/tractor/msg0514503426631.html

hope it works for you.
Good luck
__________________
92 300D 2.5L OM602 OBK #59
Reply With Quote
  #9
Old 09-03-2010, 10:28 AM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
It's easy to over tighten, as mentioned, such a low torque value, but that's what the problem was on mine. It leaked when I bought it, then I did a fluid and filter thing with a new gasket, tightened to specs, not an easy thing, no more leak.
__________________
83 SD

84 CD
Reply With Quote
  #10
Old 09-03-2010, 10:46 AM
MercFan's Avatar
Registered User

Join Date: Nov 2004
Location: Denver, CO
Posts: 994
Quote:
Originally Posted by bobodaclown View Post
I'd wipe everything really well. Then try using some Spray Deodorant (power based). Here's the cut and paste:
To provide contrast color, we would use a "spray deodorant/antiperspirant" that had talcum powder in it's formula. We would spray the suspect parts, seals, gaskets, seams, etc. with enough of the powder to turn everything white. Then we would run the engine and watch the area. As soon as the oil leaks past its defective containment part, it will turn the powder brown. There is your leak.
Brilliant - that's what I need to do; I'm also gonna have to buy a little torque wrench and set the proper tension on the bolts so they are uniform.

THx all -
__________________
1987 Mercedes 300SDL; SOLD
1985 Mercedes 300D; SOLD
2006 Honda Pilot - wife's ride; 122K;
1995 Toyota Land Cruiser - 3X locked; 182K
Reply With Quote
  #11
Old 09-03-2010, 03:34 PM
Registered User

Join Date: Sep 2006
Location: Middle TN
Posts: 3,827
Quote:
Originally Posted by MercFan View Post
Brilliant - that's what I need to do; I'm also gonna have to buy a little torque wrench and set the proper tension on the bolts so they are uniform.THx all -
Simply snugging the bolts a long with a new gasket was sufficient. They are small bolts & I've seen people trying to be precise with a torq wrench strip them. If you want to buy a new tool, feel free.
__________________
85SD 240K & stopped counting getting paint. 84SD 180,000. Probably up for sale in the fall 2020. 85TD beginning to repair to DD status.
Reply With Quote
  #12
Old 04-29-2011, 04:44 PM
MercFan's Avatar
Registered User

Join Date: Nov 2004
Location: Denver, CO
Posts: 994
It continues to leak and I can't see where...

Well, I tried to locate the leak using the 'powder deodorant method' but I still can't see it - it's way up there in one of the 'big' piston thingies on the very end of the transmission (Passenger side)...

Was wondering - what does it take to LOWER the end of the transmission enough to expose that area and fix that bugger?! I'm guessing I would need to take out the shifter lever inside the cabin before I start disconnecting the drive shaft to lower the trans... any useful links to the process would be appreciated so I can size this up relative to my mediocre shade-mech skills... Anybody in the area that would be willing to look over my shoulder on this one would be welcome to some food and beer...

Thx,
James
__________________
1987 Mercedes 300SDL; SOLD
1985 Mercedes 300D; SOLD
2006 Honda Pilot - wife's ride; 122K;
1995 Toyota Land Cruiser - 3X locked; 182K
Reply With Quote
  #13
Old 04-29-2011, 05:42 PM
Registered User

Join Date: Nov 2007
Location: Carlsbad, CA
Posts: 520
Secondary Trans Pump?

Located half way up the trans, passenger side, and towards the rear end?

If it looks like a "housing" (see photo) of sorts it's the secondary pump. Seal that leaked on mine was not the housing to trans body seal but the end cap rubber seal.

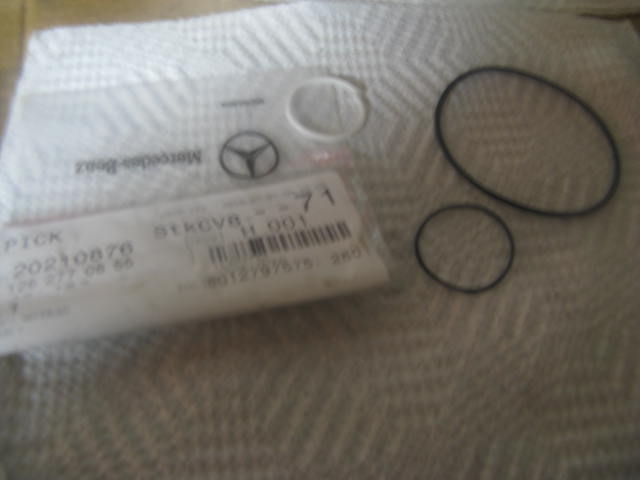

Attached photo is also the seal kit you may need.

Kinda of a pain to get to and you'll need a jack under the trans pan to hold the trans up, drop the cross member, and the rear trans mount too. Then lower the trans rear (tilt) low enough to get at all three bolts.

If it is this unit let us know because there are more "be careful" type tips you may want to know. Ya have to dissasemble it to change out the seals and it is a roast to get back together + re installing is another trick as well.
Attached Thumbnails
Having trouble locating the source of the ATF leak...-sdl-secondary-pump.jpg   Having trouble locating the source of the ATF leak...-secondary-pump-seal-kit.jpg
__________________

1986 300SDL 440,xxx
Reply With Quote
  #14
Old 04-29-2011, 05:59 PM
1985 190d

Join Date: Nov 2006
Location: canadian border vermont
Posts: 508
Remember this: theres lots of wind here. I thought I had a B-2 piston leak, but it turned out to be the dipstick o ring. It is very hard to tighten in place. Driving down the road blew the fluid from the dipstick to the back of the transmission in my case, and a .99 o ring solved the problem.
Reply With Quote
  #15
Old 04-29-2011, 11:41 PM
MercFan's Avatar
Registered User

Join Date: Nov 2004
Location: Denver, CO
Posts: 994
Quote:
Originally Posted by robcarsonjr View Post
Kinda of a pain to get to and you'll need a jack under the trans pan to hold the trans up, drop the cross member, and the rear trans mount too. Then lower the trans rear (tilt) low enough to get at all three bolts.
Rear trans mount too... boy - that may be a deal killer for me as I was previously unable to undo that big bolt from underneath. So does the gear shifter have to come out inside before I lower it (tilt it)?

__________________
1987 Mercedes 300SDL; SOLD
1985 Mercedes 300D; SOLD
2006 Honda Pilot - wife's ride; 122K;
1995 Toyota Land Cruiser - 3X locked; 182K
