eliminating primer pump

I am chasing down an air leak and I think the source of it is the primer pump. It is the upgraded black body pump I put in 2 years ago but I think it's junk being $10. I want to eliminate it altogether and just use a mighty vac to prime when needed. The primer pump sucks anyway because you have to pump it 150 times for it to do anything and that is ridiculous. Do I just plug the hole up vacated by the primer pump? Has anyone done that?

__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #2
Old 09-12-2010, 06:56 PM
junqueyardjim's Avatar
Registered User

Join Date: Apr 2005
Location: Cicero, Hamilton County, Indiana about 30 miles north of downtown Indianapolis
Posts: 2,623
If that what I thought here is what I would do

It's real easy - just plug it with JB Weld. Well, maybe better stay with a plug with the correct thread in case you want to reverse your plan in the future.
__________________
Junqueyardjim
Christianity, if false, is of no importance, and if true, of infinite importance. The only thing it cannot be is moderately important. C.S. Lewis



1983 Mercedes W123 240D 4 Speed 285,000 on the road with a 617 turbo, beautiful butter yellow, license plate # 83 240D INDIANA

2003 Jaguar Type X, AWD. beautiful, good mileage,
Mom's car, but I won't let her drive it!
Reply With Quote
  #3
Old 09-12-2010, 07:03 PM
10mm MW

Join Date: Sep 2008
Location: Michigan
Posts: 754
Quote:
Originally Posted by funola View Post
I am chasing down an air leak and I think the source of it is the primer pump. It is the upgraded black body pump I put in 2 years ago but I think it's junk being $10. I want to eliminate it altogether and just use a mighty vac to prime when needed. The primer pump sucks anyway because you have to pump it 150 times for it to do anything and that is ridiculous. Do I just plug the hole up vacated by the primer pump? Has anyone done that?
I am going to remove mine for the same reason. I will be adding a electric boost pump back at the tank to raise the primary fuel pressure and help feed the lift pump.

I considered putting a ball valve between the primer and the lift pump to isolate the primer, but that would be bulky and not at all sightly.

I am going to make a plug that screws in the primer hole and extends down into the piston return spring cavity because I do not want air to be trapped in the top the threaded primer cavity. I have an old lift pump to design from and need to refresh my recollection of what it should look like, but I think if you just screw a regular plug in the threads, you will get air trapped under the plug.
Reply With Quote
  #4
Old 09-12-2010, 08:07 PM
Registered User

Join Date: Aug 2007
Posts: 972
Quote:
Originally Posted by funola View Post
I am chasing down an air leak and I think the source of it is the primer pump.
Is fuel leaking from the hand pump? If you don't have any external leaks, I would look for internal leaks, like at the lift pump, that are sucking air in from the fuel tank via the return line. I just had that very issue. Turned out that the discharge valve in the lift pump wasn't closing.

Last edited by qwerty; 09-12-2010 at 09:25 PM.
Reply With Quote
  #5
Old 09-12-2010, 08:40 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 34,958
Some Members have siad that the Hand Primer copies that are not made by Bosch do not hold up.
Bosch claims to have Viton Seals inside.
http://www.boschautoparts.com/DieselParts/Pages/HandPrimers.aspx
__________________
84 300D, 82 Volvo 244Gl Diesel

Last edited by Diesel911; 09-13-2010 at 12:00 PM.
Reply With Quote
  #6
Old 09-12-2010, 08:47 PM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
The 60X motors dont have hand pumps & dont have problems so it should work.
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #7
Old 09-12-2010, 09:44 PM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,241
Quote:
Originally Posted by OM616 View Post
I am going to remove mine for the same reason. I will be adding a electric boost pump back at the tank to raise the primary fuel pressure and help feed the lift pump.

I considered putting a ball valve between the primer and the lift pump to isolate the primer, but that would be bulky and not at all sightly.

I am going to make a plug that screws in the primer hole and extends down into the piston return spring cavity because I do not want air to be trapped in the top the threaded primer cavity. I have an old lift pump to design from and need to refresh my recollection of what it should look like, but I think if you just screw a regular plug in the threads, you will get air trapped under the plug.
I found the perfect plug! I saved the old white bodied hand pump and cut it apart. Here are a few shots of it cut apart. It is made of the best materials, aluminum and nylon and some kind of rubber seals.

Which electric lift pump are you adding and why are you adding it?

The plunger is threaded nylon (piece on right) which threads into the base. C.W. is the stow position and seals the lift pump hole.


Both pieces threaded together


There is a cavity about 1/4" diameter 1/2" deep which can trap air but I will fill it with JB Weld.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #8
Old 09-12-2010, 09:48 PM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,241
Quote:
Originally Posted by qwerty View Post
Is fuel leaking from the hand pump? If you don't have any external leaks, I would look for internal leaks, like at the lift pump, that are sucking air in from the fuel tank via the return line. I just had that very issue. Turned out that the discharge valve in the lift pump wasn't closing.
There is some wetness at the hand pump that's why it's suspect. I hated that thing everytime I used it so it's going away.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #9
Old 09-12-2010, 10:48 PM
Registered User

Join Date: Oct 2006
Location: Beachwood, NJ
Posts: 462
An outboard fuel line prime pump works great on my 603. May be suitable replacement for your pump.
Reply With Quote
  #10
Old 09-13-2010, 01:15 AM
gastropodus's Avatar
Mercedes Benz apprentice

Join Date: May 2010
Location: Portland, OR
Posts: 434
Details!

Quote:
Originally Posted by NJ300sdl View Post
An outboard fuel line prime pump works great on my 603. May be suitable replacement for your pump.
Would you please supply details on your outboard fuel line pump... where did you get it, where did you install it in the lines, etc?

Thanks,

Kurt
__________________
- '79 240D - engine swap complete! Engine broken in! 28-31 mpg! Lovin' the ride!
- '86 190D (W201-126) - 2.5 NA engine, 5 speed, cloth interior, manual climate controls, 33-34 mpg (sold to forum member).
Reply With Quote
  #11
Old 09-13-2010, 02:48 AM
Registered User

Join Date: Nov 2009
Location: Cornelius{PDX}, OR
Posts: 150
Arrow

Quote:
Originally Posted by gastropodus View Post
Would you please supply details on your outboard fuel line pump... where did you get it, where did you install it in the lines, etc?

Thanks,

Kurt

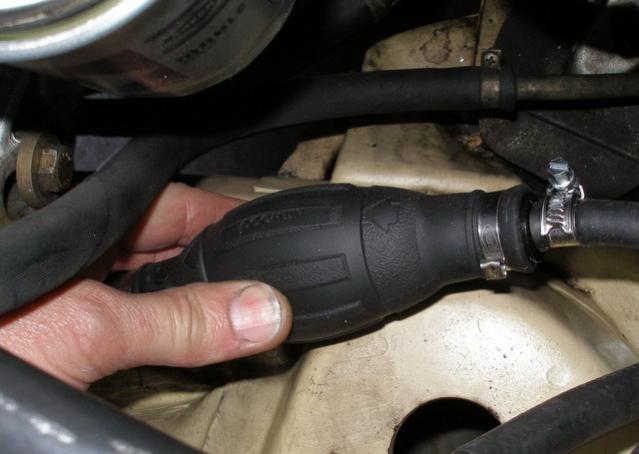

Pretty sure he means something like this the attached picture. It goes in the supply line just like a pre filter does.
Attached Thumbnails
eliminating primer pump-stccombulbpump.jpg
__________________
___________________________________________
'86 300 SDL '83 300D Astral Silver/Blue
354k miles.. 326k miles..

http://www.peachparts.com/shopforum/...ine=1310252049
Reply With Quote
  #12
Old 09-13-2010, 03:18 AM
10mm MW

Join Date: Sep 2008
Location: Michigan
Posts: 754
Quote:
Originally Posted by funola View Post
Which electric lift pump are you adding and why are you adding it?
I picked up a twin fuel pump setup off of a 420SEL. I am only going to use one of the pumps for a "boost pump".

With out going into detail, I am building a Super MW IP and want the supply fuel pressure to be around 60PSI.

I changed the lift pump spring and am running 30-35 PSI now. The regulated Boost Pump Pressure will act like an additional spring and increase the out put pressure capability of the lift pump. It will also help supply the lift pump, as pumps in general do not pull fuel very well.

Quote:
Originally Posted by funola View Post
There is a cavity about 1/4" diameter 1/2" deep which can trap air but I will fill it with JB Weld.
Personally, I have used JB Weld for emergency fixes, but I would let some of it set in fuel for some time to see if it starts to dissolve or do something undesirable before I put it in the IP fuel system. Just my 2 cents.
Reply With Quote
  #13
Old 09-13-2010, 09:53 AM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,241
JB Weld is just a very good epoxy, epoxy will hold up to diesel fuel. I have tested it and no problems in 5 years.

Are you putting the electric pump in series, before the mechanical piston lift pump? The mech lift pump pumps increasing volumes of fuel with increasing RPM, being a positive displacement type pump. Have you verified the gasser electric pump can keep up with the volume demands of the mech pump and not starve it at the higher RPMs?

Quote:
Originally Posted by OM616 View Post
I picked up a twin fuel pump setup off of a 420SEL. I am only going to use one of the pumps for a "boost pump".

With out going into detail, I am building a Super MW IP and want the supply fuel pressure to be around 60PSI.

I changed the lift pump spring and am running 30-35 PSI now. The regulated Boost Pump Pressure will act like an additional spring and increase the out put pressure capability of the lift pump. It will also help supply the lift pump, as pumps in general do not pull fuel very well.



Personally, I have used JB Weld for emergency fixes, but I would let some of it set in fuel for some time to see if it starts to dissolve or do something undesirable before I put it in the IP fuel system. Just my 2 cents.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #14
Old 09-13-2010, 11:33 AM
10mm MW

Join Date: Sep 2008
Location: Michigan
Posts: 754
Quote:
Originally Posted by funola View Post
Are you putting the electric pump in series, before the mechanical piston lift pump? The mech lift pump pumps increasing volumes of fuel with increasing RPM, being a positive displacement type pump. Have you verified the gasser electric pump can keep up with the volume demands of the mech pump and not starve it at the higher RPMs?
Pumps will be in series. As for my desired pressure @ volume, all is good.

I think I saw some ware that some one was going to eliminate the lift pump all together and just use one of these pumps with a voltage regulator to regulate pressure.
Reply With Quote
  #15
Old 09-13-2010, 11:41 AM
junqueyardjim's Avatar
Registered User

Join Date: Apr 2005
Location: Cicero, Hamilton County, Indiana about 30 miles north of downtown Indianapolis
Posts: 2,623
JB Weld holds up well

Some years ago while hunting in SD, I opened one fuel tank, (gas) on my Ford Van driving over a large rock in a field. I repaired it with JB Weld. When I sold the van a couple of years later, the JB Weld was holding the gas in very well, and it was a big crack. It was a plastic tank, but I have no doubt that it would work as well on steel or aluminum.
