Parts Catalog Accessories Catalog How To Articles Tech Forums
Call Pelican Parts at 888-280-7799
Shopping Cart Cart | Project List | Order Status | Help



Go Back   PeachParts Mercedes-Benz Forum > Mercedes-Benz Tech Information and Support > Diesel Discussion

Reply

LinkBack Thread Tools Display Modes
  #1
Old 01-30-2011, 11:00 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,832
issues found while replacing my center link

my 82SD has a crack in the metal on the crossmember below the oil filter...
it is all across the lower section and up the side... I think it should be repaired, but not sure it's something I can handle.


__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #2
Old 01-30-2011, 11:03 PM
Registered User

Join Date: Jan 2002
Posts: 18,350
Any idea how it happened? Time to hire a welder?
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
Reply With Quote
  #3
Old 01-30-2011, 11:05 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,832
it looks like a stress crack to me. could have been there since it was built. I think there is paint in it and it has not been repainted.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #4
Old 01-30-2011, 11:35 PM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
How good are you at structural welding John?
Over here that would require welding by some one with the appropriate certification & then inspection & a certificate of structural integrity by an Engineer. Lucky your not over here!!
If you can close the gap & weld it. Thats a start. I would then weld a reinforcement plate over the top with zigzag sides so that there is a long, not straight weld. That reduces the likely hood of a fresh crack developing along the edge of the welds. Being so close to the spring pearch would cause a close inspection over here.
Good Luck !!

Edit; I thought it was the long opening up & down near the spring!!

That little crack should be welded closed. You may be able to add some more spot welds as well or drill through the first layer & mig like a spot or 2.

It looks like a crack through the weld just below the "e" & another one near the bottom of the pic.
vertical up welding is not easy.
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #5
Old 01-30-2011, 11:40 PM
Registered User

Join Date: Jan 2002
Posts: 18,350
Minimum requirement at John's location is JB Weld.
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
Reply With Quote
  #6
Old 01-30-2011, 11:48 PM
layback40's Avatar
Not Banned

Join Date: Nov 2009
Location: Victoria Australia - down under!!
Posts: 4,023
Quote:
Originally Posted by kerry View Post
Minimum requirement at John's location is JB Weld.
Is JB Weld = Johns Backyard Welding?

He probably does a better job than some smart ass 20yo kid with more trades certificates than you can poke a stick at!!
__________________
Grumpy Old Diesel Owners Club group

I no longer question authority, I annoy authority. More effect, less effort....

1967 230-6 auto parts car. rust bucket.
1980 300D now parts car 800k miles
1984 300D 500k miles
1987 250td 160k miles English import
2001 jeep turbo diesel 130k miles
1998 jeep tdi ~ followed me home. Needs a turbo.
1968 Ford F750 truck. 6-354 diesel conversion.
Other toys ~J.D.,Cat & GM ~ mainly earth moving
Reply With Quote
  #7
Old 05-24-2011, 12:03 PM
Zacharias's Avatar
Not so amused

Join Date: Apr 2010
Location: West Quebec
Posts: 4,025
Quote:
Originally Posted by layback40 View Post
Is JB Weld = Johns Backyard Welding?
No, much better than that!

http://jbweld.net/index.php

Apologies for recyling an old thread but I couldn't resist....
__________________


Mac
2002 e320 4matic estate│1985 300d│1980 300td
Previous: 1979 & 1982 & 1983 300sd │ 1982 240d

“Let's take a drive into the middle of nowhere with a packet of Marlboro lights and talk about our lives.” ― Joseph Heller, Catch-22
Reply With Quote
  #8
Old 05-24-2011, 12:35 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,832
it's not that old a thread... I still drive, and have not fixed the car...
I've since found LOTS more cracks in the car... gotta get it UP on a lift, and fix it all, or just unload the car, and upgrade to my neighbor's 85...
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #9
Old 05-24-2011, 12:47 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 50,968
I cannot tell for sure but it looks like there is more than one crack.

Here is my suggestion:

Grind off the cracked piece of metal back to the Blue line if there is a 2nd crack and weld it.
If there is no 2nd crack grind it back to the Yellow line and Weld along the Blue or Yellow Line.
Most likely a Flux Core Welder would not undercut the metal as a ARC Welder would do.

The problem with using a thicker reinforcement plate is that it needs some careful design or the thinner metal will simply break in another place.
The reason is that the Reinforced area will not flex as much as the un-reinforced area.
Attached Thumbnails
issues found while replacing my center link-crack.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #10
Old 05-24-2011, 12:51 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,832

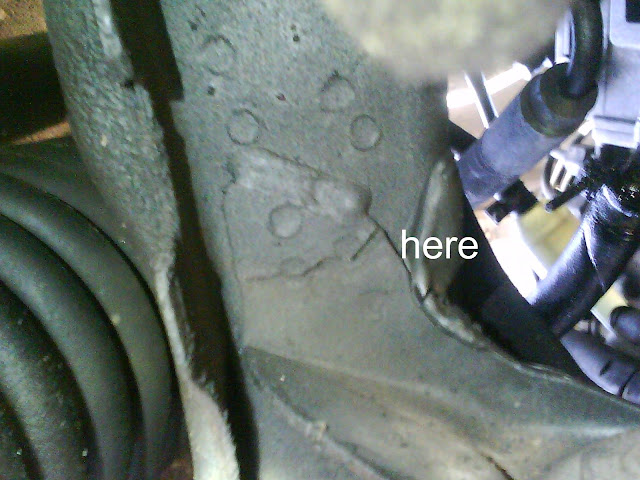

actually, if you look below the word "here", about where your lower arrow points... you will notice that the subframe weld above the labeled plate is cracked through as well... the poor car must have been in some heavy rough roads in it's past...
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #11
Old 05-24-2011, 03:12 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 50,968
Quote:
Originally Posted by vstech View Post
actually, if you look below the word "here", about where your lower arrow points... you will notice that the subframe weld above the labeled plate is cracked through as well... the poor car must have been in some heavy rough roads in it's past...
I did not see that crack. Structurally it looks worse than the other.

If it were mine I would do what ever grinding was needed to the area outlined in yellow to peel that area back or remove it completely because it is likely the larger Crack extends under it.
Attached Thumbnails
issues found while replacing my center link-crack-2.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #12
Old 05-24-2011, 05:34 PM
mach0415's Avatar
Diesel Weasel

Join Date: Mar 2010
Location: Lawndale, NC
Posts: 648
Hey John. I am curious. Is this the same car you posted about cracks near the subframe mounts? also Is this the speed demon SD? I have to admit that I will be checking over mine very thoroughly!

__________________
Thanks,
Mark in NC

"Spark plugs?...We don't need no stinking spark plugs!"
1985 300SD "Der Silberne Schlitten" 420,000 mi


Wish these were diesel:
2003 Ford Club Wagon 130,000 mi
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 01:23 AM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2024, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
