Need to confirm socket size for 95 E300D injection nozzles

I'm going a little nuts. My service manual and numerous posts point to the injection nozzles on my 606.910 engine requires a deep 22mm socket with the side cut out so as to not damage the return line hose barbs.

The thing is I cannot even get a 22mm socket past the top of the injector holder?

From what I can measure deep down in the well, it looks like the holder hex is more like 27mm.

I'm attaching a pdf picture if it helps. Sorry the depth of field is really hard to capture.

Has anyone with a 606 engine found that they needed a larger socket to remove the injector holder?

Thanks for your help ahead of time.

Attached Files
File Type: pdf injector_top.pdf (635.6 KB, 117 views)
__________________
Best Regards,
Jeff L

1984 300SD 247K+ miles - single tank w/ heat exchanger to run WVO - sold
1997 Ford F350 7.3L International turbo diesel crew cab with 100 gal transfer tank to hold B100
1995 E300D 245K+ miles running BioDiesel - my daily driver

Live Long and Prosper
Reply With Quote
  #2
Old 05-08-2011, 08:55 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 35,065
If your engine has the Prechamber Retaining Rings with slots and the Injector screws into the Retaining Ring it talks a 27mm Socket. Because, the thread in the Retaining Ring and the Injector are 24mmX2.0.

If you have Splined Prechamber Retaining Rings the Injectors thread into the top of the Prechamber (22mmX1.5 threads). I believe that is the one you need the 22mm Socket on.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #3
Old 05-08-2011, 09:07 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 35,065
What is the sort of Football shaped piece in the Last pic? It looks like that would keep a socket from going on.
Attached Thumbnails
Need to confirm socket size for 95 E300D injection nozzles-injector-socket-22mm.jpg   Need to confirm socket size for 95 E300D injection nozzles-injector-closeup.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #4
Old 05-08-2011, 09:24 PM
Registered User

Join Date: Feb 2004
Location: Walnut Creek, CA & 1,150 miles S of Key West
Posts: 4,874
606's use the 22mm socket Diesel 911 linked to.
__________________
Terry Allison
N. Calif. & Boca Chica, Panama

09' E320 Bluetec 77k (USA)
09' Hyundai Santa Fe Diesel 48k (S.A.)
Reply With Quote
  #5
Old 05-08-2011, 09:56 PM
Zip-a-dee-doo-dah

Join Date: Jul 2008
Location: North San Diego, CA
Posts: 61
That's the return line hose barb

Quote:
Originally Posted by Diesel911 View Post
What is the sort of Football shaped piece in the Last pic? It looks like that would keep a socket from going on.

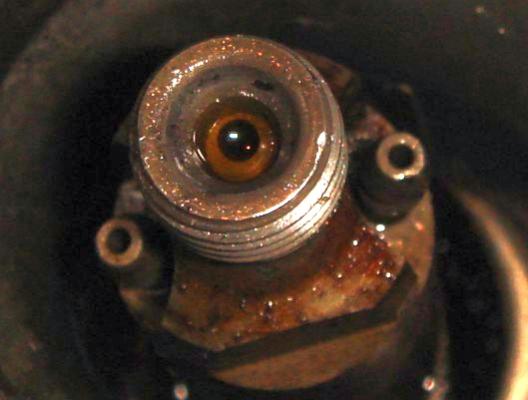

Ah, that is the area where the return line hose barb is located.

Attaching a side view that should help.

The barb does not extend beyond the hex that is down deep in the well. I think I must have the 27mm injector holder.

Thanks!!
Attached Thumbnails
Need to confirm socket size for 95 E300D injection nozzles-injector_top_side.jpg
__________________
Best Regards,
Jeff L

1984 300SD 247K+ miles - single tank w/ heat exchanger to run WVO - sold
1997 Ford F350 7.3L International turbo diesel crew cab with 100 gal transfer tank to hold B100
1995 E300D 245K+ miles running BioDiesel - my daily driver

Live Long and Prosper
Reply With Quote
  #6
Old 05-08-2011, 10:03 PM
babymog's Avatar
Loose Cannon - No Balls

Join Date: Jan 2006
Location: Northeast Indiana
Posts: 10,767
27mm is correct. Unfortunately the return line pipes stick out a bit, where they line up with the points on the hex they fit the socket fine, where they line up with the flats on the hex, not so good. Relieving the inside of the socket to accomodate these pipes will save you bending one (or more) and creating a leak, which will cost you the holder as I don't know of a way to repair that other than possibly brazing.
__________________

Gone to the dark side

- Jeff
Reply With Quote
  #7
Old 05-08-2011, 10:22 PM
Zip-a-dee-doo-dah

Join Date: Jul 2008
Location: North San Diego, CA
Posts: 61
Quote:
Originally Posted by Diesel911 View Post
If your engine has the Prechamber Retaining Rings with slots and the Injector screws into the Retaining Ring it talks a 27mm Socket. Because, the thread in the Retaining Ring and the Injector are 24mmX2.0.

If you have Splined Prechamber Retaining Rings the Injectors thread into the top of the Prechamber (22mmX1.5 threads). I believe that is the one you need the 22mm Socket on.
Shoot, now I'm confused. I cleared out some fuel that was in the well (return lines were leaking and will be replaced) and it looks like I have the Splined retaining ring.

The thing is I took a cheap 22mm socket and cut off the head so that only the 22mm socket portion was left and it does not even fit over the injector holder head.

I'll get a 27mm socket and see if it fits.

Thanks again.
__________________
Best Regards,
Jeff L

1984 300SD 247K+ miles - single tank w/ heat exchanger to run WVO - sold
1997 Ford F350 7.3L International turbo diesel crew cab with 100 gal transfer tank to hold B100
1995 E300D 245K+ miles running BioDiesel - my daily driver

Live Long and Prosper
Reply With Quote
  #8
Old 05-08-2011, 10:24 PM
Zip-a-dee-doo-dah

Join Date: Jul 2008
Location: North San Diego, CA
Posts: 61
Quote:
Originally Posted by babymog View Post
27mm is correct.
Thanks Jeff! I'll make sure I relief for the hose barbs.
__________________
Best Regards,
Jeff L

1984 300SD 247K+ miles - single tank w/ heat exchanger to run WVO - sold
1997 Ford F350 7.3L International turbo diesel crew cab with 100 gal transfer tank to hold B100
1995 E300D 245K+ miles running BioDiesel - my daily driver

Live Long and Prosper
Reply With Quote
  #9
Old 05-08-2011, 10:59 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 35,065
Quote:
Originally Posted by kickit View Post
Shoot, now I'm confused. I cleared out some fuel that was in the well (return lines were leaking and will be replaced) and it looks like I have the Splined retaining ring.

The thing is I took a cheap 22mm socket and cut off the head so that only the 22mm socket portion was left and it does not even fit over the injector holder head.

I'll get a 27mm socket and see if it fits.

Thanks again.
Let me know if I was wrong. I am going by the bits and pieces I have picked up on the forum concerning other models besides my own.

Below are slotted Prechamber Retaining Rings
Attached Thumbnails
Need to confirm socket size for 95 E300D injection nozzles-prechamber-rings-buggered-4.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel

Last edited by Diesel911; 05-08-2011 at 11:10 PM.
Reply With Quote
  #10
Old 05-09-2011, 07:07 AM
engatwork's Avatar
busy

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 12,790
I have always had the cam cover off when I've pulled injectors on mine.
__________________
Jim
Reply With Quote
  #11
Old 05-09-2011, 09:17 AM
Zip-a-dee-doo-dah

Join Date: Jul 2008
Location: North San Diego, CA
Posts: 61
Quote:
Originally Posted by Diesel911 View Post
Let me know if I was wrong. I am going by the bits and pieces I have picked up on the forum concerning other models besides my own.

Below are slotted Prechamber Retaining Rings
No problem. This seems to be another area of grayness between documentation and reality. I'll post once I figure out exactly what's going on.
__________________
Best Regards,
Jeff L

1984 300SD 247K+ miles - single tank w/ heat exchanger to run WVO - sold
1997 Ford F350 7.3L International turbo diesel crew cab with 100 gal transfer tank to hold B100
1995 E300D 245K+ miles running BioDiesel - my daily driver

Live Long and Prosper
Reply With Quote
  #12
Old 05-09-2011, 09:18 AM
Zip-a-dee-doo-dah

Join Date: Jul 2008
Location: North San Diego, CA
Posts: 61
Quote:
Originally Posted by engatwork View Post
I have always had the cam cover off when I've pulled injectors on mine.
Ah ha! I was wondering if I should take off the cam cover. Is the gasket reusable or do I need to buy a new one?
__________________
Best Regards,
Jeff L

1984 300SD 247K+ miles - single tank w/ heat exchanger to run WVO - sold
1997 Ford F350 7.3L International turbo diesel crew cab with 100 gal transfer tank to hold B100
1995 E300D 245K+ miles running BioDiesel - my daily driver

Live Long and Prosper
Reply With Quote
  #13
Old 05-09-2011, 10:34 AM
engatwork's Avatar
busy

Join Date: May 2000
Location: Soperton, Ga. USA
Posts: 12,790
I'm trying to remember. There are some o-ring type seals that go in there and I know there is a gasket for the cam cover. I'm thinking it it o-ring type if I remember correctly.
__________________
Jim
Reply With Quote
  #14
Old 05-14-2011, 07:31 PM
Zip-a-dee-doo-dah

Join Date: Jul 2008
Location: North San Diego, CA
Posts: 61
Quote:
Originally Posted by engatwork View Post
I have always had the cam cover off when I've pulled injectors on mine.
Jim: Thanks a bunch. The valve cover was the trick

The injector housing hex is 22mm for my car, so I'm ordering a deep socket.

And the gaskets look like o-ring material, but someone used rtv on them so I'm replacing them too.

Thanks again!
__________________
Best Regards,
Jeff L

1984 300SD 247K+ miles - single tank w/ heat exchanger to run WVO - sold
1997 Ford F350 7.3L International turbo diesel crew cab with 100 gal transfer tank to hold B100
1995 E300D 245K+ miles running BioDiesel - my daily driver

Live Long and Prosper
Reply With Quote
  #15
Old 05-14-2011, 07:39 PM
Zip-a-dee-doo-dah

Join Date: Jul 2008
Location: North San Diego, CA
Posts: 61
Quote:
Originally Posted by Diesel911 View Post
Let me know if I was wrong.
You were correct. Thanks!
