#46
|
||||
|
||||
I dont quite get how this is done - so I dont know what bolts to buy.
Are they going to thread into the engine itself? A pic would of a 617 showing the mounting on a stand mean a thousand words here :-)
__________________
------------------------------- '85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit) '82 300D, 'Tex', 228k body / 170k engine ... summer car '83 300TD Cali Wagon 210k, wife's car |
#47
|
||||
|
||||
I can see if I can get to mine to take a pic tonight.....we are getting rain on and off and its shoehorned next to a car I have the glass out of and in primer at the moment I can't move.
I have long high strength metric bolts and nuts I happened to have (equal to a SAE grade 8) that go THROUGH the engine plate and have washes and several nuts on them. I believe in overkill. having it drop to the concrete would break a lot of stuff.
__________________
Proud owner of .... 1971 280SE W108 1979 300SD W116 1983 300D W123 1975 Ironhead Sportster chopper 1987 GMC 3/4 ton 4X4 Diesel 1989 Honda Civic (Heavily modified) --------------------- Section 609 MVAC Certified --------------------- "He who fights with monsters might take care lest he thereby become a monster. And if you gaze for long into an abyss, the abyss gazes also into you." - Friedrich Nietzsche |
#48
|
|||
|
|||
Yeah, like the concrete.
__________________
'85 300TD "Puff The Magic Wagon" - Rolling Resto '19 Mazda CX-9 Signature - Wife's sled '21 Morgan 3-Wheeler P101 Edition '95 E300d - SOLD '84 300TD "Brown Betty" - Miss this one '81 240D "China Baby" - Farm grocery getter |
#49
|
||||
|
||||
The easy way is to attach the engine stand to the intermediate plate because you can leave the flywheel intact... But... If you want to turn the motor upside down, you might not be able to do it because it would be so top heavy. And if you are able to get turned over, you'll might not get it right side up because the weight would now be at the bottom.
If you need the motor turned upside down, you'll need remove the flywheel and intermediate plate. Then bolt the stand directly to the four intermediate plate holes on the block. By doing so will raise the pivot point on the block and effectively balance the motor so you can turn it over easily. .
__________________
1983 123.133 California - GreaseCar Veg System |
#50
|
||||
|
||||
Pictures.

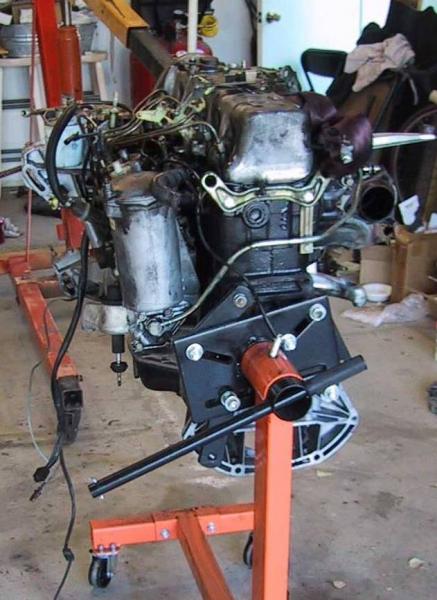

Stand attached to intermediate plate. Courtesy of konstan Stand attached to the block. Block upside down. Courtesy of konstan Picture of my harbor freight stand attached to the block. Had to put the arms in different positions to attach it because the stand flange is too wide. .
__________________
1983 123.133 California - GreaseCar Veg System |
#51
|
||||
|
||||
Here are two pictures...
__________________
Proud owner of .... 1971 280SE W108 1979 300SD W116 1983 300D W123 1975 Ironhead Sportster chopper 1987 GMC 3/4 ton 4X4 Diesel 1989 Honda Civic (Heavily modified) --------------------- Section 609 MVAC Certified --------------------- "He who fights with monsters might take care lest he thereby become a monster. And if you gaze for long into an abyss, the abyss gazes also into you." - Friedrich Nietzsche |
#52
|
||||
|
||||
Thank you guys! That explains it perfectly.
Do you happen to know the bolt sizes you used? The compulsion to reapir EVERYTHING is STRONG when the engine is out. Im fighting the urge to replace everything. How to cope?
__________________
------------------------------- '85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit) '82 300D, 'Tex', 228k body / 170k engine ... summer car '83 300TD Cali Wagon 210k, wife's car |
#53
|
||||
|
||||
Not sure, they were spare suspension bolts for a Honda suspension I had that happened to be large and long enough I had handy. The head on mine was a 17mm, not sure the thread size...
I understand the urge........lets just say it took me a long time to get it under control......keeping track of what you are spending helps.....seeing that total helps dispel the thought its only a few bucks more. I'm an engineer and have a habit of going further than I need to or should on projects.
__________________
Proud owner of .... 1971 280SE W108 1979 300SD W116 1983 300D W123 1975 Ironhead Sportster chopper 1987 GMC 3/4 ton 4X4 Diesel 1989 Honda Civic (Heavily modified) --------------------- Section 609 MVAC Certified --------------------- "He who fights with monsters might take care lest he thereby become a monster. And if you gaze for long into an abyss, the abyss gazes also into you." - Friedrich Nietzsche |
#54
|
||||
|
||||
Quote:
I used the same coarse threads used on the transmission to adapter plate / block bolts. A couple of the threads in the top part of the OM617 are blind anyway... I'm guessing you'll be using at least one of them. EDIT - if you choose to use threaded bar make sure it is 8.8...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! Last edited by Stretch; 08-06-2011 at 12:11 PM. Reason: warning 8.8 strength required |
#55
|
||||
|
||||
M10 thread size is required - I've just checked and edited the post above
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! |
#56
|
||||
|
||||
Update
OK, so I have swung the other direction with my engine swap.
I am now going to try to do as little 'obsessive compulsive preventative maintenance' to the engine while out of the car as I can and not add extra steps and time. As much as I would like to spend months with the engine, i need to get this done before winter. For example, I was going to pull the manifolds, clean them and make them pretty. I have canceled that project. Likewise, Ill do the valve stem seals once the engine is back in the car etc. Am I making a horrible mistake(s)? At this point I dont have a clear reason to even mount the engine to the stand. I can do all the work I need where it lies on it's pallet.
__________________
------------------------------- '85 300D, 'Lance',250k, ... winter beater (100k on franken-Frybrid 3 Valve Kit) '82 300D, 'Tex', 228k body / 170k engine ... summer car '83 300TD Cali Wagon 210k, wife's car |
#57
|
||||
|
||||
If you plan on cleaning the intake, and it likely has a LOT of goo inside it by now (its a dirty horrid job to do)...do it before you put the engine in....its a lot harder to do in the car, the attachment between the turbo and block are hell to get at. Same if you plan to put a block heater in it if it doesn't have one now, that's a lot easier with the manifolds off, but might be rough if its on a pallet....the plug can be pretty tight.
__________________
Proud owner of .... 1971 280SE W108 1979 300SD W116 1983 300D W123 1975 Ironhead Sportster chopper 1987 GMC 3/4 ton 4X4 Diesel 1989 Honda Civic (Heavily modified) --------------------- Section 609 MVAC Certified --------------------- "He who fights with monsters might take care lest he thereby become a monster. And if you gaze for long into an abyss, the abyss gazes also into you." - Friedrich Nietzsche |
#58
|
|||
|
|||
Remove, clean, and reinstall my intake manifold with the motor on an engine stand along with removing the egr system including cutting a block off plate for the intake and cutting a round copper washer for the exhaust took me about 2 hours. Would that kill your build schedule? Sure is alot quicker while on the engine stand not to mention easier on the back.
Some folks appear to take considerable time to clean the intake manifold. The flame method took me about 5 - 10 minutes. Use the egr gasket on the intake manifold as a template. Drill 2 holes and cut the outline on a piece of scrape around 20 minutes. Flatten out a short piece of 3/4" copper pipe then cut it into the appropriate size circle to fit on the exhaust manifold. Secure it with the existing pipe bracket used to hold the egr pipe another 20 minutes. Bolt everything back together. I'm more afraid of messing something up such that it doesn't run while changing seals and gaskets with the motor on a stand then I'm concerned with the time spent. You should be able to do everything you want in a good day. Go for it! |
#59
|
||||
|
||||
Engine and Trans Apart - Rookie Mistake?
OK, I went for it. Engine and trans are apart and engine mounted on a stand. the transmission is rolling around on a furniture dolly. Pics to come...
