#46
|
||||
|
||||
Quote:
__________________
Cheers! Scott McPhee 1987 300D |
#47
|
||||
|
||||
Since you've checked the throttle linkage, maybe you can remove the IP side cover to check that the rack has full range of motion. You'll need a gasket for the type of side cover - brass or aluminum.
Sixto 87 300D |
#48
|
|||
|
|||
oh god. why is that? is brown usually a sign of death? lol
Quote:
idk if this plays any role. but the stop lever. only ever goes up a little bit. i see everyone elses at like 11 oclock -11:30. mine never goes that high. Last edited by Iheartboost; 08-14-2011 at 02:13 PM. |
#49
|
||||
|
||||
Disconnect and plug the vacuum hose to the shutoff actuator. If the car runs better, there's a problem with the key switch vent or the key switch itself. If the car doesn't run better, there might be a problem with how the shutoff actuator was installed (recently replaced?) or an internal problem.
Sixto 87 300D |
#50
|
|||
|
|||
The blue flying saucer thing?
|
#51
|
||||
|
||||

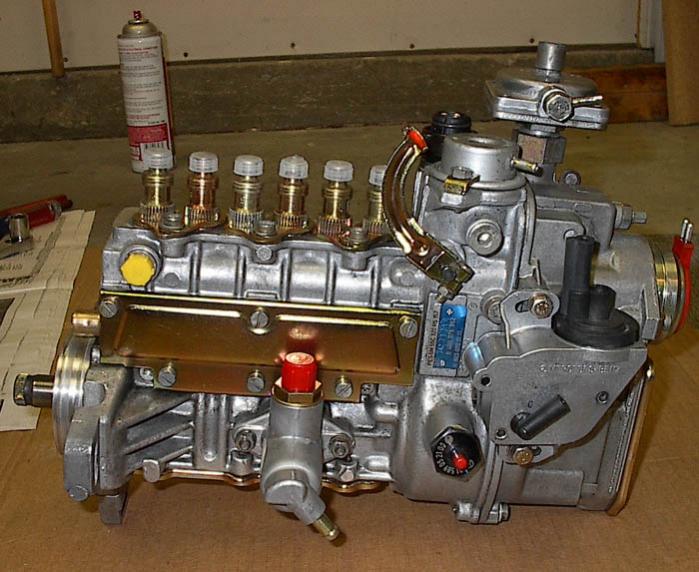

That's the transmission vacuum amplifier. The shutoff actuator is atop the IP right above the STOP lever -
OE is a metal can with a nipple pointing sideways. Replacement are often plastic with a nipple pointing up. Sixto 87 300D Last edited by whunter; 12-19-2011 at 11:54 PM. Reason: attached picture |
#52
|
|||
|
|||
Thanks alot man! Ill go take a look at it tomorrow along with my tank strainer.
|
#53
|
|||
|
|||
so i pulled the vac line and plugged it. not really any different. :/
its the original metal one. so maybe it needs replacing? |
#54
|
||||
|
||||
Have you checked boost pressure yet? at 1800rpm you should see boost.
__________________
http://superturbodiesel.com/images/sig.04.10.jpg 1995 E420 Schwarz 1995 E300 Weiss #1987 300D Sturmmachine #1991 300D Nearly Perfect #1994 E320 Cabriolet #1995 E320 Touring #1985 300D Sedan OBK #42 |
#55
|
|||
|
|||
I havent been able to yet. No boost gauge but I do hear it start to spool
|
#56
|
||||
|
||||
Have you checked your trans fluid level.
__________________
http://superturbodiesel.com/images/sig.04.10.jpg 1995 E420 Schwarz 1995 E300 Weiss #1987 300D Sturmmachine #1991 300D Nearly Perfect #1994 E320 Cabriolet #1995 E320 Touring #1985 300D Sedan OBK #42 |
#57
|
|||
|
|||
So pulled the strianer spotless.... That means its IP **** dosent it?
And yea I checked. A little to high if anything. There are two hashes in the dipstick. Its above them. And aslo not red:/ Im still tryimg to figure out why I wont smoke though.. I suppose theres some internal failure of the IP |
#58
|
|||
|
|||

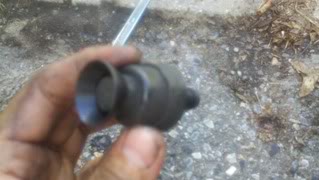

is this the tank vent?

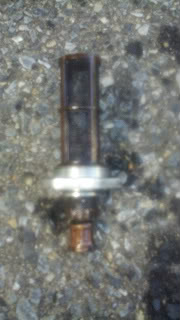

and i took my strainer out.....after buying a 46mm socket. -_- it came out when i tried to remove the 19mm barb... Last edited by whunter; 12-20-2011 at 12:10 AM. Reason: attached pictures |
#59
|
||||
|
||||
Try getting some diesel purge (2 cans) and run it off a liter bottle in the engine bay. It is possible the rack is gummed up or some other issue. Also try disconnecting the ELR on the back of the IP.
__________________
http://superturbodiesel.com/images/sig.04.10.jpg 1995 E420 Schwarz 1995 E300 Weiss #1987 300D Sturmmachine #1991 300D Nearly Perfect #1994 E320 Cabriolet #1995 E320 Touring #1985 300D Sedan OBK #42 |
#60
|
|||
|
|||
i did run seafoam though it. but ill try the diesel purge as well. it seemed like when i followed diesel giants DIY on diesel purge i was getting fuel back into the can and it never seemed like it actually took the stuff in.
maybe i was just impatient. but ill do the ELR as well. isent that just the idle thing? |
