Quote:

Originally Posted by ROLLGUY (Post 2885498)

You say it is a Bosch reman? By Bosch, do you mean from Bosch in Germany, or a Bosch starter that has been remaned in the US and sold at your local auto parts store? If it was purchased at one of the chain auto parts stores, chances are the parts (solenoid especially) are made in CHINA. These Chinese parts are JUNK! I had a similar problem with a starter from the 'Zone. It said Bosch on it, but the solenoid looked suspiciously CHINsy. Sure enough, I had to replace it a few months later.

Yikes! I just replaced my starter with an Autozone reman'd one! Sticker on the box it came in said it was reman'd in Mexico, of all places! I sure hope it lasts longer than a few months! Oh well, it does have a lifetime warranty on it.

Quote:

Originally Posted by compress ignite (Post 2888308)

...
2.Army,
Those Solenoid Screw Heads give you some trouble?
(I've had to soak them in "Kroil" for a day or so ,And still use a Teenie Tiny chisel to start them Un-Tightening.)
['Boogered the first set up getting them out,before I remembered the Impact 'Driver in the Boat.]

Yep they were a pain in the backside. I can't get decent penetrating oil round here - well they sell expensive "good stuff" but you can get the same effect with extra virgin olive oil (I'm not serious about the olive oil this isn't a tip unless you want to make your car taste good) => anyway I just went straight for my little box of HSS drill bits and ordered some new allen head bolts to replace...

Quote:

Originally Posted by compress ignite (Post 2888308)

1. Is anybody using the Bosch "Starter Relay Kit" (WR1)that allows DIRECT voltage from the Battery to the Starter?
(On the Solenoid Circuit)
2.Army,
Those Solenoid Screw Heads give you some trouble?
(I've had to soak them in "Kroil" for a day or so ,And still use a Teenie Tiny chisel to start them Un-Tightening.)
['Boogered the first set up getting them out,before I remembered the Impact 'Driver in the Boat.]

1. How much is that Bosch "Starter Relay Kit" ? If I ever have a weak key switch, I'd make my own "Starter Relay Kit" with a relay. Real easy to do with some wiring.

2. Penetrating oil won't work, just take a look at Army's pic of the 3 ruined screws and where the threads are. They are loctited. The trick is to heat the loctite to 500F to soften it then remove phillips with ease. Again, look at the pic to see where to apply the heat and don't get it too much above 500F since there are magnet wire windings behind the housing that can be damaged if overheated.

Edit: Impact screwdriver don't always work, depends on how tight the loctite is. I have stripped a few of the heads using an impact, before I learned about the heating trick.

Quote:

Originally Posted by dieseldan44 (Post 2885458)

.....

BUT - when testing the cable for tightness the two post terminal block on the solenoid spun a bit.

...........................

Here's a solenoid stud terminal that's spun a lot and broke the plastic it is molded into.

http://i31.photobucket.com/albums/c3...221_124028.jpg

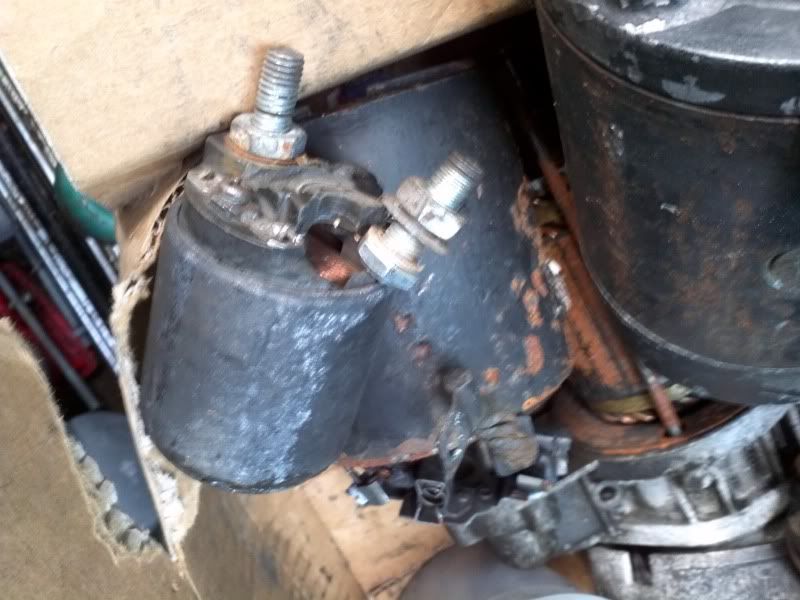

Not the sharpest pic but you can see the copper shorting bar in the hole that would short the 2 terminals together when the solenoid pulls in.

http://i31.photobucket.com/albums/c3...221_123920.jpg

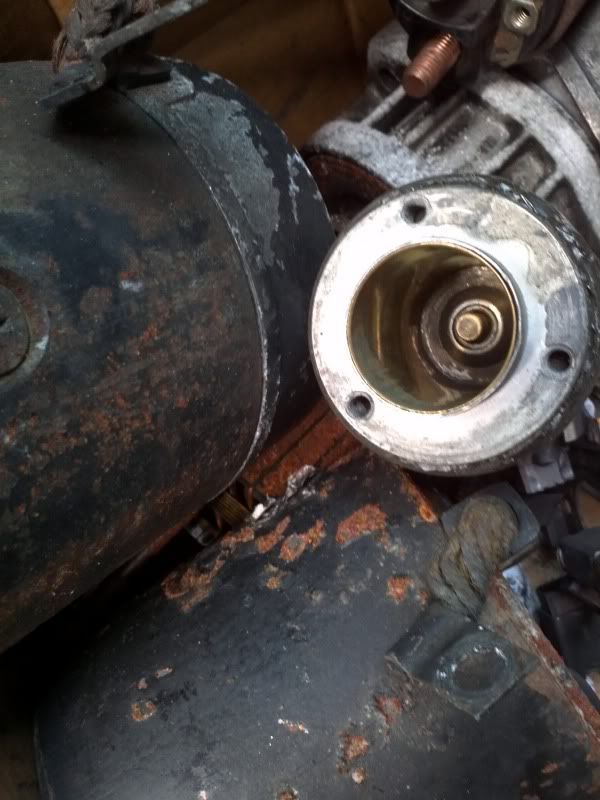

If I push on the "button" in this pic, I can see the copper shorting bar move. The iron core solenoid normally provide this function.

http://i31.photobucket.com/albums/c3...221_123938.jpg
