'87 W124 PreChambers (advice requested)

Hello All!

I have started this new thread because Search did not turn up what I'm looking for exactly.

I have a 1987 300D. 603.960 motor. #14 head And the prechambers are leaking.

The leaks are causing very hard starts. This car is not a daily driver, so after sitting all week, air gets into the system, and you have to crank all day long.

On top of the prechambers leaking, 2 of the injectors are also leaking.

To verify that the prechambers are in fact leaking, I did a "brake clean" test. I sprayed brake clean around the injectors & prechambers with the motor running. When I sprayed the back 3, brake cleaner got into the prechamber and cause some really loud knocking!! a little scary.

So, thanks to this site I figured out what tools I need. It appears that the "early" 603's use a prechamber similar to the 617. Later 603/602's require a spline shaft style socket.

So special tools are on order. The question is "How far do I go?"

Do I simply remove the injectors (fix the ones that are leaking), and torque down the Prechambers (using the proper prechamber collar tool)?

Or do I go all out, remove injectors, glow plugs, and pull the prechambers? Give the precambers a full cleaning, de-carboning, and re-install?

Am I just asking for trouble if I pull the chambers?? Can I/ should I replace the prechamber sealing rings? (I know I have to do the injector heat shields)

I want to do what's best for the car. I am big on the "while your in there" method of repairs. I also fully realize that it's sometimes best to leave well enough alone. . .

So I am looking for a collective opinion, how far should I go?? just torgue and run, or go for the full prechamber R&R?

Thanks.

I will take lots of pics, and post them up. I think the leaking prechambers are common, and there is not a ton of info or how to's for the 602/603 crowd.

Brian
__________________
87' 300DT (Grey w/ red leather)
87' 300TDT (silver w/ palamino tex) SOLD

2012 VW JSW TDI (on tdiclub.com all the time "btcost")
Reply With Quote
  #2
Old 03-16-2012, 10:11 AM
Registered User

Join Date: Oct 2006
Location: Beachwood, NJ
Posts: 462
Leaking pre chambers will not let air in the fuel system and I doubt if they are the cause of your hard starts. Try to leave the pre chambers in place. Loosen and tighten the collars, repair the injectors. If further tests reveal the pre chambers leaking a little (bubbles in light oil sprayed around collar) it would be good enough for my use.
__________________

Present
1987 300SDL
1991 300SL
1990 560SEL
2001 ML320

Past
1969 200D 1979-82
1983 300SD 1984-85
1972 250C 1982-02
1995 S350 2011
1997 S320 2012
Reply With Quote
  #3
Old 03-16-2012, 10:46 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,180
soooo... you spray brake cleaner at the injectors, and you get knocking from the motor?
I'm thinking more likely the intake manifold is sucking in the brake spray...

the hard starts are likely caused by the fuel heater under the IP leaking, and possibly the delivery valve seals on the IP letting air in.

for the hard starts you could park with the nose of the car facing downhill, you'll drip a little fuel, but it likely won't get air in the lines.

for the PC's, how bad are the leaks? is it a slight bubbling through motor oil dribbled on them, or is it SPRAYING out the oil?
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #4
Old 03-16-2012, 11:11 AM
BrianCostello's Avatar
Registered User

Join Date: May 2005
Location: Boston
Posts: 198
soooo... you spray brake cleaner at the injectors, and you get knocking from the motor?
I'm thinking more likely the intake manifold is sucking in the brake spray...

I was able to spray directly onto the injector/pre chamber area . .So very little if any should have gotten into the intake. I won't rule it out however


the hard starts are likely caused by the fuel heater under the IP leaking, and possibly the delivery valve seals on the IP letting air in.

Which is what I also assumed. So I installed a fully rebuilt IP I had on the shelf. I purchased it from GSXR, so I know it's good. It's not leaking one bit.

for the hard starts you could park with the nose of the car facing downhill, you'll drip a little fuel, but it likely won't get air in the lines.

for the PC's, how bad are the leaks? is it a slight bubbling through motor oil dribbled on them, or is it SPRAYING out the oil?

I have not tried oil, good idea. I would assume a bubbling. . .but I will test.



Thanks for the input so far. Keep it coming!
__________________
87' 300DT (Grey w/ red leather)
87' 300TDT (silver w/ palamino tex) SOLD

2012 VW JSW TDI (on tdiclub.com all the time "btcost")
Reply With Quote
  #5
Old 03-16-2012, 12:23 PM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,112
With a cold engine, squirt shaving cream around the pre chambers/ injectors. Start the car and look for bubbles through the cream.

Shaving cream = neat stuff. I use it on the injector halves to detect leaks when I rebuild them.
__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked
Reply With Quote
  #6
Old 03-16-2012, 12:55 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,393
Fuel pre-heater

Quote:
Originally Posted by BrianCostello View Post

the hard starts are likely caused by the fuel heater under the IP leaking, and possibly the delivery valve seals on the IP letting air in.

Which is what I also assumed. So I installed a fully rebuilt IP I had on the shelf. I purchased it from GSXR, so I know it's good. It's not leaking one bit.
The fuel pre-heater is not part of the IP. Replacing the IP with a known good one is always nice but the fuel pre-heater is a separate item.

Jeremy
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #7
Old 03-16-2012, 05:08 PM
BrianCostello's Avatar
Registered User

Join Date: May 2005
Location: Boston
Posts: 198
Quote:
Originally Posted by Jeremy5848 View Post
The fuel pre-heater is not part of the IP. Replacing the IP with a known good one is always nice but the fuel pre-heater is a separate item.

Jeremy

Correct. I'll check it out.

But as far as I know I have no known leaks.

are the pre-heaters known for tricky pin holes?? Something that leaks but you can't see it?? just asking
__________________
87' 300DT (Grey w/ red leather)
87' 300TDT (silver w/ palamino tex) SOLD

2012 VW JSW TDI (on tdiclub.com all the time "btcost")
Reply With Quote
  #8
Old 03-16-2012, 07:23 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 24,850
If you end up pulling out the Prechambers (of course remember to pull the Glow Plugs out first) do not pull the Chamber unitl the Piston is up close to Top Dead Center.
Pulling the Prechamber out peels a lot of deposits off of the nose of the Prechamber.

Having the Piston at Top Dead Center allows the crud to fall on the top of the Piston where you can get at it.
I found that sticking the Vacuum Cleaner Pipe down the hole easily sucked out the particles (that in my case were dry).

(Also a good time to ream out the Glow Plug holes.)
Attached Thumbnails
'87 W124 PreChambers (advice requested)-prechamber-removed-crap-1.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #9
Old 03-16-2012, 08:37 PM
ROLLGUY's Avatar
ROLLGUY

Join Date: Oct 2007
Posts: 5,908
I believe the pre-chambers have seals that seal against the aluminum head. You should have them on hand before starting the job. I would also advise pulling them with the engine hot (operating temp). My head guy has an oven that he uses to preheat the head before removing the chambers. Since your head is still mounted on the engine, heating it first (driving the car) should make the chamber removal easier.
Reply With Quote
  #10
Old 03-16-2012, 11:17 PM
Unofficial wormcan opener

Join Date: Dec 2005
Location: Ashland, MA
Posts: 2,602
Quote:
Originally Posted by BrianCostello View Post
Correct. I'll check it out.

But as far as I know I have no known leaks.

are the pre-heaters known for tricky pin holes?? Something that leaks but you can't see it?? just asking
It is not a pre-heater it is a fuel thermostat. Yes they have an o-ring that can fail. Mine would only show a problem at highway speed. I was able to find the drip and replace the o-ring.

You ruled out the big ticket item, you might want to try the .99 item as well. The o-ring is behind the white plastic 90 on the fuel thermostat.
__________________
1987 300TD 309, xxx 2.8.2014 10,000 mile OCI


Be careful of the toes you step on today, as they may be connected to the ass you have to kiss tomorrow. anonymous

“Be who you are and say what you feel, because those who mind don’t matter, and those who matter won’t mind.” Dr. Seuss
Reply With Quote
  #11
Old 03-19-2012, 01:35 PM
BrianCostello's Avatar
Registered User

Join Date: May 2005
Location: Boston
Posts: 198
Quote:
Originally Posted by Bio300TDTdriver View Post
It is not a pre-heater it is a fuel thermostat. Yes they have an o-ring that can fail. Mine would only show a problem at highway speed. I was able to find the drip and replace the o-ring.

You ruled out the big ticket item, you might want to try the .99 item as well. The o-ring is behind the white plastic 90 on the fuel thermostat.

Thank you! I give it look soon. I am keeping a sharp eye on that area for leaks. For good measure, I may replace all the fuel hose, I believe its original.

I am aiming towards NOT removing the pre-chambers.

I will be, Removing the injectors, pop-testing and rebuilding the ones that leak (I got the lapping materials)

Then just releasing the the pre-chamber collar nuts. cleaning the threads, and the gunk that gets stuck in there, and re-installing at the proper torque.

followed by the re-built injectors, also at proper torque.

And see what happens.

The tools should be here wednesday!

Brian
__________________
87' 300DT (Grey w/ red leather)
87' 300TDT (silver w/ palamino tex) SOLD

2012 VW JSW TDI (on tdiclub.com all the time "btcost")
Reply With Quote
  #12
Old 03-19-2012, 01:53 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,180
take pics please.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #13
Old 04-09-2012, 05:07 PM
BrianCostello's Avatar
Registered User

Join Date: May 2005
Location: Boston
Posts: 198
Small update:

I got the proper prechamber tool. it's the same one used on the OM617 motors. Later W124's use the splined socket.

So the prechamber collar removal/cleaning/re-torquing went well. While I had the injectors out I pop tested them. All six were around 1400 psi. too low

So I ordered up some shims, and a lapping kit.

Got everybody shimed up to 2100 psi, lapped the bodies, torqued to spec and re-installed this Saturday.

Took a test drive, and at every red light light the car was shaking like I had bad engine mounts. . . .

2 of the injectors were leaking SO BAD diesel was basically pouring out. I was very careful on cleaning/rebuilding etc. . .I was quite dissapointed at my work.

So today, I take a bad leaker out. Clean it up again, being extra super careful. Went to torque it back together, and something BROKE

injector back apart, I somehow broke the top small piece that slides inside the nozzle. I have no idea how I managed this debacle.

So these are decent 50k or less Bosio nozzles. My friend is a Bosio dealer, so I drive over to him to see what he can do.

We are waiting on a answer from Italy. . . If I can get a nozzle fairly quickly I will just replace the one nozzle. But If I have to wait like 6 weeks. . . .I getting a whole set of injectors.

Man! I just want to cruise in this car. I got a new hose for the AC. . so my plan was motor running sweet. Ac blowing cold. Summer weekend cruising here I come!

Best laid plans. . . . .
__________________
87' 300DT (Grey w/ red leather)
87' 300TDT (silver w/ palamino tex) SOLD

2012 VW JSW TDI (on tdiclub.com all the time "btcost")
Reply With Quote
  #14
Old 04-09-2012, 09:26 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 24,850
Quote:
Originally Posted by BrianCostello View Post
Small update:

I got the proper prechamber tool. it's the same one used on the OM617 motors. Later W124's use the splined socket.

So the prechamber collar removal/cleaning/re-torquing went well. While I had the injectors out I pop tested them. All six were around 1400 psi. too low

So I ordered up some shims, and a lapping kit.

Got everybody shimed up to 2100 psi, lapped the bodies, torqued to spec and re-installed this Saturday.

Took a test drive, and at every red light light the car was shaking like I had bad engine mounts. . . .

2 of the injectors were leaking SO BAD diesel was basically pouring out. I was very careful on cleaning/rebuilding etc. . .I was quite dissapointed at my work.

So today, I take a bad leaker out. Clean it up again, being extra super careful. Went to torque it back together, and something BROKE

injector back apart, I somehow broke the top small piece that slides inside the nozzle. I have no idea how I managed this debacle.

So these are decent 50k or less Bosio nozzles. My friend is a Bosio dealer, so I drive over to him to see what he can do.

We are waiting on a answer from Italy. . . If I can get a nozzle fairly quickly I will just replace the one nozzle. But If I have to wait like 6 weeks. . . .I getting a whole set of injectors.

Man! I just want to cruise in this car. I got a new hose for the AC. . so my plan was motor running sweet. Ac blowing cold. Summer weekend cruising here I come!

Best laid plans. . . . .

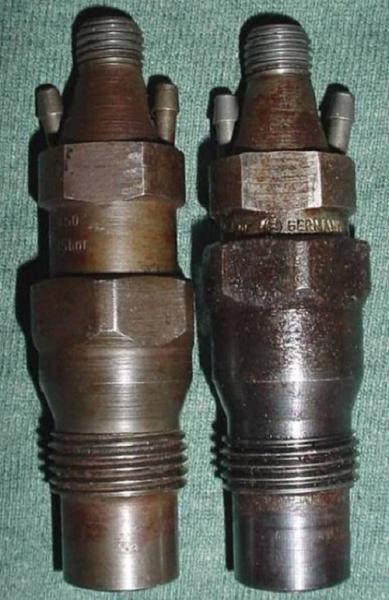

What is borken is the top part of the Pintel of the Injector Nozzle. You will need a new Injector Nozzle.
Why it broke; the part with the Red Arrow in the picture was assembled upside down.

The other way is if you mix some of the parts between the 2 different Injector Body types; the pic of Injectors.

I have managed to do both back when I worked in a Fuel Injection Shop. Was in too much of a rush to pay proper attention to what I was doing.

There may be other ways to do it but those are the ones I discovered.

How to prevent it.
Look at a properly assembled Injector and note the spacing of the Nut to the upper Body.
Always turn the Injector Nut all the way down by Hand before torqueing.

If the parts I have mentioned are assembled wrong the Nut will not turn down as far.
And, you can see and feel that if you are looking for it. On the Injector assembled wrong you will also feel more spring tension on the Nut as you turn the Nut down.

Another thing that helps if is before torquing you lay all of the Injectors on the Counter and look and see if any of the Injector Nuts are not all the way down.

In the last pic the Green #4 Arrow points to the part that can end up installed upside down.
Attached Thumbnails
'87 W124 PreChambers (advice requested)-injector-bolt-4.jpg   '87 W124 PreChambers (advice requested)-2-injectors-compared-10.jpg   '87 W124 PreChambers (advice requested)-mercedes-injector-pic-w.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #15
Old 04-10-2012, 04:04 AM
retmil46's Avatar
Registered User

Join Date: Jun 2006
Location: Mooresville, NC
Posts: 344
Just did the full monty this weekend and pulled all my prechambers. Not that big a deal with the right tools - took on average less than a minute of upper body workout with the slide hammer per prechamber to pop them out. I had leakage on 1 thru 5, and given what I'd seen of the PO's other maintenance efforts on the vehicle, I wasn't going to roll the dice on this one. Needed to change out the GP's anyway.

On the 603, THERE ARE NO SEALING RINGS BETWEEN THE PRECHAMBER AND THE HEAD. Direct metal-to-metal fit between the prechamber flange and the head.

The only rings that might be used with 603 prechambers are "spacer" rings - if the seating area in the head is gomered up, such that you have to use the special MB tool to shave off metal and smooth out the sealing area, depending on the amount of metal removed, there are four different thickness spacer rings that can be added to maintain the prechamber at the proper height to keep it from being struck by the piston.

From what I found, I have to believe that the entire head was removed sometime in the recent past - for an engine with nearly 215K miles on it, everything was just too bloody clean - compared to what I found on my first 87 with only 133K miles - hardly any black gunk in the intake manifold or on the intake valves and their passages - only a thin coating of soot on the prechambers, washed right off with hardly any effort in a quick bath of gasoline.

On 1 thru 5, both the injectors and the collars were way loose - as in practically no torque at all. Only one that seemed anywhere close to being torqued properly was 6 - the only one that wasn't leaking.
__________________
Just say "NO" to Ethanol - Drive Diesel

Mitchell Oates
Mooresville, NC
'87 300D 212K miles
'87 300D 151K miles - R.I.P. 12/08
'05 Jeep Liberty CRD 67K miles
Grumpy Old Diesel Owners Club
Reply With Quote
Reply

Bookmarks

Thread Tools
Display Modes

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On




All times are GMT -4. The time now is 06:24 PM.


Powered by vBulletin® Version 3.8.7
Copyright ©2000 - 2018, vBulletin Solutions, Inc.
Search Engine Optimization by vBSEO 3.6.0
Copyright 2018 Pelican Parts, LLC - Posts may be archived for display on the Peach Parts or Pelican Parts Website -    DMCA Registered Agent Contact Page
