Near Catastrophic Oil Loss 240D & Rust Proofing Job

This evening I was helping W Hunter retrieve a 190D (W201) from a customer that had broken the alternator pulley and had popped off the serpentine belt. The trip was about 50 miles from home. I picked up W Hunter on the way and my 240D worked really great (kiss of death to ever say that about a car) all the way to our destination. W Hunter patched up the 190D and we were returning to his place so he could finish the repair and do other things with that car.

About 4 blocks from his house I noticed the 240D oil pressure gauge dipping below 3 and then it dropped to ZERO!!! I turned off the engine and coasted (manual 4 speed) about 2 blocks. I turned on the engine and had a little oil pressure and got up to speed and turned it off again... coasting to a stop in front of his house. (I always watch the oil gauge!)

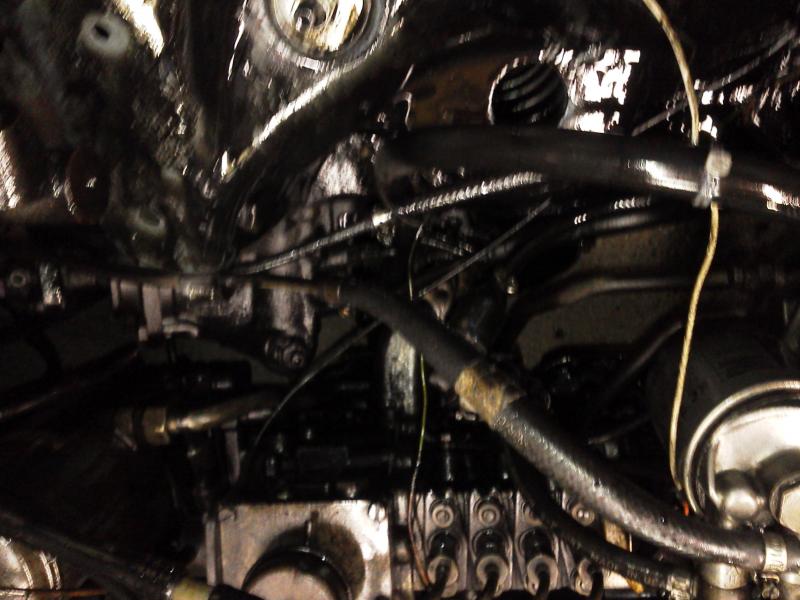

We opened the hood and everything in the entire engine compartment is covered in black engine oil. We pulled the dip stick and there was nothing on it. We put in 2 quarts... still nothing on the dip stick. We put in 4 more quarts and it was now over filled enough to put the car in his garage.

The diagnosis is that there was a small pin hole leak of one of the oil cooler lines (original equipment on the 32 yr old car) that was spraying on the power steering pump pulley. This allowed the oil to be equally distributed all over the place! (see the pictures) The whole engine compartment is slimed! The underbody probably won't need any rust protection for a while either! The pin hole leak seemed to be from when a power steering belt had been rubbing against the oil pressure line. (don't know when that happened) We could see the line where the belt or something in that direct line had been rubbing previously on the oil line.

We estimated that the leak probably had been going on for at least 20 minutes / miles. And that it would only register zero on the oil pressure gauge when only about 2 quarts of oil were left in the sump. W Hunter said that the engine is OK because it ran OK after we filled it and that I had not run it for long after discovering the issue. He will install new oil cooler lines in the next day or so.

I needed an oil and filter change... but this was just ridiculous! I had just power washed the engine bay for a potential customer last Saturday... Darn!

Whew! Caught that just in time... Lucky!!!

Hood picture, then engine bay. The next post will show where the pin hole leak is.

Attached Thumbnails
Near Catastrophic Oil Loss 240D & Rust Proofing Job-img_20120402_232456.jpg   Near Catastrophic Oil Loss 240D & Rust Proofing Job-img_20120402_232506.jpg   Near Catastrophic Oil Loss 240D & Rust Proofing Job-img_20120402_232515.jpg   Near Catastrophic Oil Loss 240D & Rust Proofing Job-img_20120402_232526.jpg   Near Catastrophic Oil Loss 240D & Rust Proofing Job-img_20120402_232541.jpg

__________________
Pete Williams, President emeritus - MBCA-International Stars (Eastern Mich.) Now Wi. & Az.
1985 300D Manual 4 speed Green Hen's tooth
1979 MGB triple black Az car nice
1969 back 1/2 of MGB (Az home built trailer)
1991 Volvo 245 Wagon Nice AZ Restored Gold Brick
1983 Jeep CJ7 37,600 Miles Summer use only
Reply With Quote
  #2
Old 04-03-2012, 12:56 AM
pwjeep's Avatar
Registered User

Join Date: Aug 2006
Posts: 152
Near catastrophic oil leak 240D & Rust Proofing 2

Here are more pictures...

Oh yes... you should have seen the puddle of oil on the street where the old Benz marked it's spot!

See spot... see spot not run without oil. Run spot run... Nope!
Attached Thumbnails
Near Catastrophic Oil Loss 240D & Rust Proofing Job-img_20120402_232548.jpg   Near Catastrophic Oil Loss 240D & Rust Proofing Job-img_20120402_232604.jpg   Near Catastrophic Oil Loss 240D & Rust Proofing Job-img_20120402_232617.jpg
__________________
Pete Williams, President emeritus - MBCA-International Stars (Eastern Mich.) Now Wi. & Az.
1985 300D Manual 4 speed Green Hen's tooth
1979 MGB triple black Az car nice
1969 back 1/2 of MGB (Az home built trailer)
1991 Volvo 245 Wagon Nice AZ Restored Gold Brick
1983 Jeep CJ7 37,600 Miles Summer use only
Reply With Quote
  #3
Old 04-03-2012, 01:02 AM
pwjeep's Avatar
Registered User

Join Date: Aug 2006
Posts: 152
Near Catastrophic Oil Loss 240D & Rust Proofing Job 3

Point of screw driver is where the leak is located.
Attached Thumbnails
Near Catastrophic Oil Loss 240D & Rust Proofing Job-img_20120402_232440.jpg
__________________
Pete Williams, President emeritus - MBCA-International Stars (Eastern Mich.) Now Wi. & Az.
1985 300D Manual 4 speed Green Hen's tooth
1979 MGB triple black Az car nice
1969 back 1/2 of MGB (Az home built trailer)
1991 Volvo 245 Wagon Nice AZ Restored Gold Brick
1983 Jeep CJ7 37,600 Miles Summer use only
Reply With Quote
  #4
Old 04-03-2012, 02:41 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Nice story - it sounds like you stopped the engine just in time.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #5
Old 04-03-2012, 06:08 AM
t walgamuth's Avatar
dieselarchitect

Join Date: Apr 2005
Location: Lafayette Indiana
Posts: 38,613
good catch!
__________________
[SIGPIC] Diesel loving autocrossing grandpa Architect. 08 Dodge 3/4 ton with Cummins & six speed; I have had about 35 benzes. I have a 39 Studebaker Coupe Express pickup in which I have had installed a 617 turbo and a five speed manual.[SIGPIC]

..I also have a 427 Cobra replica with an aluminum chassis.
Reply With Quote
  #6
Old 04-03-2012, 06:31 AM
Dave Donaldson's Avatar
Registered User

Join Date: Nov 2011
Location: Canada
Posts: 145
very lucky,,

Good catch, if my wife had been driving your car the engine would be junk.
most drivers would not have saved the engine,, they need bells and audio alarms !!!
Reply With Quote
  #7
Old 04-03-2012, 10:11 AM
pwogaman's Avatar
Senior Member

Join Date: May 2003
Location: Northern, Virginia
Posts: 2,034
I think you missed a spot in that second picture.
__________________
http://i284.photobucket.com/albums/l...aman/Fleet.jpg

Peach Parts W124.128 User Group.

80 280SL
85 300SD
87 300TD
92 300D 2.5 Turbo
92 300TE 4Matic
Reply With Quote
  #8
Old 04-03-2012, 11:24 AM
Registered User

Join Date: Jan 2002
Posts: 18,350
You're one in a hundred. In most cases that engine would have been toast.
__________________
1977 300d 70k--sold 08
1985 300TD 185k+
1984 307d 126k--sold 8/03
1985 409d 65k--sold 06
1984 300SD 315k--daughter's car
1979 300SD 122k--sold 2/11
1999 Fuso FG Expedition Camper
1993 GMC Sierra 6.5 TD 4x4
1982 Bluebird Wanderlodge CAT 3208--Sold 2/13
Reply With Quote
  #9
Old 04-03-2012, 12:03 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
Ick

We prepared the shop floor with a bag of oil dry, before driving the car in.

FYI: Part numbers.

Oil Line - to Top of Oil Cooler
MB# 616 187 06 82

Oil Line - to Bottom of Oil Cooler
MB# 617 187 12 82


.

Last edited by whunter; 04-03-2012 at 12:14 PM.
Reply With Quote
  #10
Old 04-03-2012, 01:38 PM
Precision Somethingist.

Join Date: Jul 2011
Location: NW Washington
Posts: 278
Good subject for a "Heads Up!"

Nice save. A little bit of distraction while driving could have led to a catastrophe.

My 240D is on jackstands, still, as I catch up on the deferred maintenance of years long gone. New oil lines have been added to the list of "things that must be done before we hit the road together." There is certainly enough good information on this forum to keep one from posting messages here that should go on FailBlog! Although I will probably do the same myself somewhere down the road.......


snapped_bolt
__________________
'81 240D For now, a good place to borrow new parts
'80 300TD Probably will be put back into service!
'79 240D BACK IN SERVICE SINCE 09/16; limited use, oil leak. Guide pin r/sealed/replaced. Still a leak. Front crank seal....
Reply With Quote
  #11
Old 04-03-2012, 03:39 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,416
Update

I used a Sawzall to cut the old lines roughly eight inches from the unions.

"Houston" we have a problem!!

The oil cooler was removed from the car with the union stubs attached.

The oil cooler union stubs required three hours delicate application of (propane torch) heat, PB Blaster, and torque to achieve separation.

FYI: The oil cooler is a folded path, tube and fin unit = gravity draining requires unreasonable time (days).
I prefer to use an air blow gun to gently force the oil out of the cooler, and zip tie a contractor trash bag to the output line.
Cleanup takes minutes.


.
Reply With Quote
  #12
Old 04-03-2012, 10:05 PM
RML RML is offline
Out of Garage Space

Join Date: Jun 2006
Location: Southwest PA
Posts: 1,034
The word that comes to mind when I see the oil coating on everything under your hood is: "Thorough" I do not think I could have done a better job with a spray bottle.
__________________
85 300D 75K Anthracite Grey 0-60 in 13 seconds **For Sale**
84 300D 333K Black (The Velveteen Rabbit) 0-60 in 14 seconds
00 Toyota Sienna 208K (Sold)
15 Subaru Outback 43K
11 Subaru Outback 67K
98 Ford Taurus 100K (Gertie - Was Grandma's - drove it to church and shopping - really) Daughter's car now.
30 Model A Ford 2 Door Sedan (Sold) 0-60 in . . . Never reached 60
Reply With Quote
  #13
Old 04-04-2012, 02:29 AM
Stretch's Avatar
...like a shield of steel

Join Date: Sep 2009
Location: Somewhere in the Netherlands
Posts: 14,461
Quote:
Originally Posted by whunter View Post
...
The oil cooler union stubs required three hours delicate application of (propane torch) heat, PB Blaster, and torque to achieve separation.

...
.
Wow - now there's dedication.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!
1961 Volvo PV544 Bare metal rat rod-ish thing

I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior



Don't leave that there - I'll take it to bits!
Reply With Quote
  #14
Old 04-04-2012, 01:25 PM
TnBob's Avatar
Registered User

Join Date: Dec 2009
Location: Shelbyville, Tn
Posts: 1,907
Another testament for Kroil. Many independent tests prove its about the best commercial one out there.
__________________
1985 300D 198K sold
1982 300D 202K
1989 300E 125K
1992 940T

"If you dont have time to do it safely, you dont have time to do it"

"The democracy will cease to exist when you take away from those who are willing to work and give to those who would not."
Reply With Quote
  #15
Old 04-04-2012, 08:33 PM
Save the manuals!

Join Date: Jan 2006
Location: .
Posts: 3,463
Quote:
Originally Posted by TnBob View Post
Another testament for Kroil. Many independent tests prove its about the best commercial one out there.
X2 on that. I used PB Blaster to get mine off but I also soaked them daily for a week before I attempted to remove them.
