  #1
Old 08-03-2012, 02:22 PM
mach4's Avatar
Registered User

Join Date: Jul 2011
Location: San Diego County, CA
Posts: 2,736
You might want to check your Trap Cats

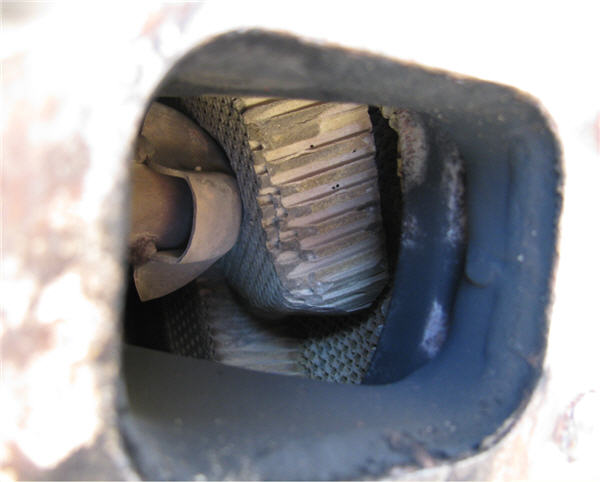

I finally got around to tearing things apart for the purpose of installing my test pipe. When I pulled the Trap Cat this is what I found.



When I cut the flange off to make my second test pipe, I got a better look at what was inside.



When I opened up the turbo to check things out and get it cleaned up, I heard some rattling when I shook the turbine housing I had just taken off and this is what came out of the turbine housing.



Surprisingly, I think I'm ok. I don't see any evident damage to the turbine.



And even with that obstruction, I was able to pull 10psi of boost. I have a hunch the turbine is going to spool a whole lot faster now.
Attached Thumbnails
You might want to check your Trap Cats-trap1.jpg   You might want to check your Trap Cats-trap2.jpg   You might want to check your Trap Cats-trap3.jpg   You might want to check your Trap Cats-trap4.jpg
__________________
Current Stable
  • 380SL (diesel)
  • Corvette C5
  • Manx
  • Baja Bug
  • F350 Powerstroke
  • Auburn Boattail Speedster replica
Reply With Quote
  #2
Old 08-03-2012, 02:31 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,087
what car and engine is this cat on?

pre turbo cat's should be replaced by the factory... free, and they'll replace the turbo if it was damaged... also free.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #3
Old 08-03-2012, 02:40 PM
tbomachines's Avatar
ಠ_ಠ

Join Date: Mar 2009
Location: Philadelphia
Posts: 4,993
What a mess!
__________________
TC
Current stable:
- 2004 Mazda RALLYWANKEL
- 2007 Saturn sky redline
- 2004 Explorer...under surgery.

Past: 135i, GTI, 300E, 300SD, 300SD, Stealth
Reply With Quote
  #4
Old 08-03-2012, 02:43 PM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,585
Wow!!! That is an eye opener.

When we bought our 85 back in 97, it was really lagging on get up and go. the lacal shop did a VIN# check with the dealer, and it had been on the car for over 50K milea, and is suppose to be replaced every 30K miles.

Dealer replaced the trap and checked the Turbo. no cost to us because it is part of the emmissions warranty.

If the trap had come apart and damaged the Turbo, MB would have replaced as part of the warranty.

You are lucky the Turbo dodn`t get damage, as this one would have been on you. as your SL VIN# doesn`t jive with the current engine.

Your engine compartment will thank you for cleaning things up by getting rid of unnecessary junk.

Iam using the 78 - 79 116SD none EGR manifolds and have no test pipe.

Charlie
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

http://i30.photobucket.com/albums/c3...ilys/boobs.gif


Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
Reply With Quote
  #5
Old 08-03-2012, 03:04 PM
mach4's Avatar
Registered User

Join Date: Jul 2011
Location: San Diego County, CA
Posts: 2,736
Quote:
Originally Posted by vstech View Post
what car and engine is this cat on?

pre turbo cat's should be replaced by the factory... free, and they'll replace the turbo if it was damaged... also free.
The engine is an '85 OM617.952 out of a 123 300D. It now happily resides in my '85 380SL.
__________________
Current Stable
  • 380SL (diesel)
  • Corvette C5
  • Manx
  • Baja Bug
  • F350 Powerstroke
  • Auburn Boattail Speedster replica
Reply With Quote
  #6
Old 08-03-2012, 03:23 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,115
Quote:
Originally Posted by vstech View Post
what car and engine is this cat on?

pre turbo cat's should be replaced by the factory... free, and they'll replace the turbo if it was damaged... also free.
That's true for 603s but I heard it's a little different for 617s. The 617 oxidation catalyst fits in place of the trap oxidizer so it remains upstream of the turbo. They'll definitely replace an original trap on MB's dime but if the cat clogs, it's up to the dealer whether the replacement's on the house. Again, so I heard.

Sixto
87 300D^2
Reply With Quote
  #7
Old 08-03-2012, 03:59 PM
aaa aaa is offline
Registered User

Join Date: Nov 2008
Posts: 1,075
Reminder: you can tow your car in for the trap ox recall.

Unfortunately I think they'd balk at it not being in the original car.
Reply With Quote
  #8
Old 08-03-2012, 06:02 PM
tbomachines's Avatar
ಠ_ಠ

Join Date: Mar 2009
Location: Philadelphia
Posts: 4,993
Quote:
Originally Posted by aaa View Post
Reminder: you can tow your car in for the trap ox recall.

Unfortunately I think they'd balk at it not being in the original car.
That's gonna be bad news. The parts and service dept are really VIN dependent in my experience, I doubt they'll put up the cash to pay for that service being non-original equipment. Can't hurt to ask though.
__________________
TC
Current stable:
- 2004 Mazda RALLYWANKEL
- 2007 Saturn sky redline
- 2004 Explorer...under surgery.

Past: 135i, GTI, 300E, 300SD, 300SD, Stealth
Reply With Quote
  #9
Old 08-03-2012, 07:38 PM
mach4's Avatar
Registered User

Join Date: Jul 2011
Location: San Diego County, CA
Posts: 2,736
Quote:
Originally Posted by charmalu View Post
Iam using the 78 - 79 116SD non EGR manifolds and have no test pipe.
I don't think I can go that route, because that would position the turbo quite a bit lower and I think it would interfere with my fender wells. One of these days I'll take some measurements and see whether it's true or not.
__________________
Current Stable
  • 380SL (diesel)
  • Corvette C5
  • Manx
  • Baja Bug
  • F350 Powerstroke
  • Auburn Boattail Speedster replica
Reply With Quote
