You forgot about the exhaust manifold and the turbo, which is under the inlet manifold. Heat rises and you have the pump mounted at the highest point in the engine compartment above the hottest components. There are much better spots, like next to the aux water pump, away from the heat of the turbo.

__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked

What Turbo ? No turbo in a OM617.912 engine.


Heat does rise, but I cannot see how in the world that much heat will transfer from parts A (anything which radiates heat) to part B (pump). I guess the real test is to drive it around a bunch tomorrow and get the thermogun out. I am betting 125F would be the max on the worst of a S.C. day in mid-August. Better yet, having opened the hood in the dog days of Columbia, S.C. heat after driving around a lot, I know for a fact that once I opened the hood, there was no 100+F heat wave from the engine. If I can touch a part immediately next to the pump with my hands, I have a hard time imagining that temp is 150F or more. Since there is around 4" of air space from the hottest thing possible (exhaust manifold), not sure radianting heat not in a direct line of sight so to speak could heat up the pump to 150F.

After your first post, I drove the car around to operating temp. I can hold my hand about 1" from the exhaust manifold and there's no heat wave so to speak--not even close. However, as I said, I will get the thermogun out tomorrow. Might be a good catch.

The temp gun is the great equalizer, however.

Temp Gun: 98F.

Current ambient Temp: 78F

Drove it around for about 45 minutes. All conditions, highway, suburban, sitting in traffic on Clemson Road. Engine temps are at their max as for any given day. So, Mr. Funola was correct in that the pump does pick up some radiant heat off the engine, however, no where near the 150F.

HOWEVER, I think this is a GREAT catch by Mr. Funola. I will get the Thermo-Tec matt and cover the bottom and both sides. A 12x12 section is around $12 bucks shipped. Any heat blocked is a good thing.

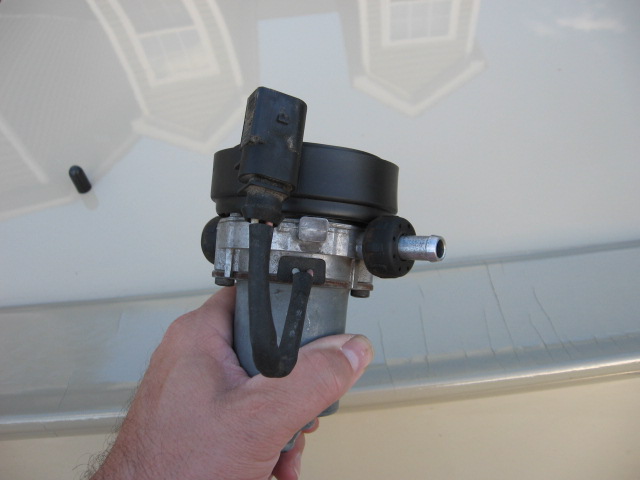

I gave up on the W126 pump. There's no way around the built-in electronics of the blow-suck cycles. So, I opted for the original pump I tinkered with a while ago. It's from an Audie. I hate using non-MB parts, even for a mod. It's close enough ... German made. Runs nice. I am going to run 2 lines off the vacuum port: one "T-ing" into the resevoir in the back and one line running up to the front of the engine into a 4 way deal. I will remove all vacuum lines from the engine bay (except the one to the IP) and have them tucked inside under the dash. The W126 pump is for sale.

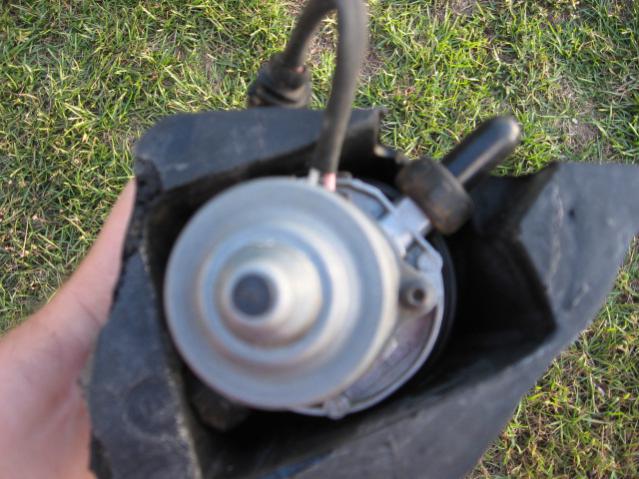

I am totally SHOCKED it fits just about perfectly in the foam rubber housing. I also found a good use for the thick neoprene jackets from the cone filter I just removed. Two of them fit around the head of the pump perfectly. I like the way it fits the head in one end of the foam housing and open space for the other end, with the hose outlet and wiring fitting where the MB part went. Normally, mods are a PITA sometimes. This will get rid of my mechanical vacuum pump. Since I am going with manual brakes, I only need minimum vacuum and I don't need it 100% of the time. This clears out some needed space in front of the engine and clears the way for the serp belt set up I got cooking. I already tried the machined plate for around an hour with no booster and I am likewise surprised ... so I am guessing once I mod the ratio to 5:1, it might stop better than vacuum assisted. No way for the flagship 6:1 ratio.

Now, I am looking for a decent vacuum shut-off switch. Anyone out there run a 12V switch they like ?
