w123 vacuum - need help IDing a part

Hi,
I have searched around and found various vacuum diagrams and pictures. I was hoping to find a place online to buy the part, but I can't even ID the part yet.

On a positive note, I broke this while adjusting the steering box; that was successful - I just need to be more careful with brittle parts.

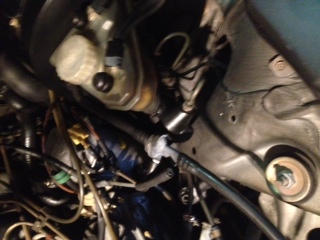

Here is a pic, it is the part that is the first one outside the brake vacuum booster. Also, i have seen people put, what looks like a fuel filter on one of the lines...an explanation of that would be nice too.

Thanks in advance.
Attached Thumbnails
w123 vacuum - need help IDing a part-photo.jpg
Reply With Quote
  #2
Old 04-24-2013, 11:15 PM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,585
You didn`t state what model W123, so I looked up an 84 300D.
the part is the brake booster Line, around $25.

Click on the catalog Tab above and enter your year and model, and look under brakes, then brake booster.

1984 Mercedes-Benz 300D Sedan - Brake Hydraulics - Page 3

When you are in the PNP yards, always grab he good one`s, ya never know when ya need one.

Charlie
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
Reply With Quote
  #3
Old 04-25-2013, 04:12 AM
Registered User

Join Date: Apr 2013
Posts: 14
Thanks. I had been looking for the middle fitting. Makes sense now.
