help with front end alignment- inside tire wear...

can someone tell me how i can stop the wear on the inside of ONE of my front tires? almost all front end parts are new and was aligned not too long ago. i haven't hit any curbs, ect. but i did replace the guide rod mount on the driver side after it had been aligned so that's the side that's wearing. all other tires are fine and doesn't seem to pull to any side. so my question is, how can i adjust the toe in/ out on that side? i think that's what's off? i would like to stop as much of this wear as i can until i can get a proper alignment. a am getting a good set of tires and wheels on craigslist and really don't want to tear them up too.
Attached Thumbnails

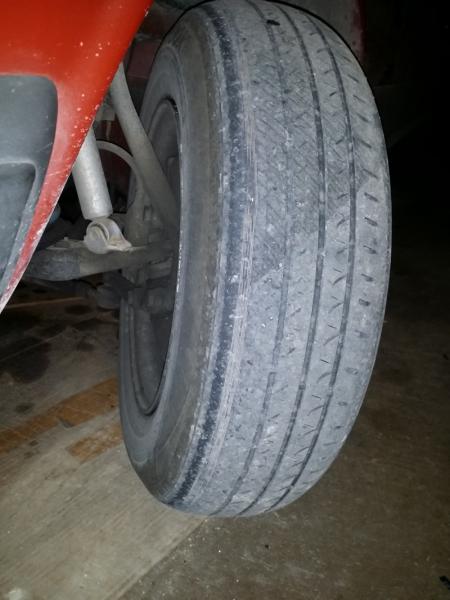

help with front end alignment- inside tire wear...-20140307_192004.jpg   help with front end alignment- inside tire wear...-20140307_192053.jpg   help with front end alignment- inside tire wear...-20140307_192141.jpg   help with front end alignment- inside tire wear...-20140307_192157.jpg
__________________
83 300CD- sanden, dual p/f condensers, 160a alternator, ect
91 300TD- 722.6, #22 head, 3.5L IP, w140 manifolds, ect
Reply With Quote
  #2
Old 03-07-2014, 10:08 PM
Mölyapina's Avatar
User title not in use

Join Date: Oct 2012
Location: Chelmsford, Massachusetts
Posts: 4,353
I'd try posting in the tech forums for starters .
__________________
"Senior Luna, your sense of humor is still loco... but we love it, anyway." -rickymay ____ "Your sense of humor is still loco... " -MBeige ____ "Señor Luna, your sense of humor is quite järjetön" -Delibes

1982 300SD -- 211k, Texas car, tranny issues ____ 1979 240D 4-speed 234k -- turbo and tuned IP, third world taxi hot rod

2 Samuel 12:13: "David said to Nathan, “I have sinned against the Lord.” And Nathan said to David, “The Lord also has put away your sin; you shall not die."
Reply With Quote
  #3
Old 03-07-2014, 10:10 PM
BenzTurbo's Avatar
300cd

Join Date: May 2012
Location: Dallas, Tx
Posts: 559
i know i forgot where i was posting and can't figure out how to move it! i pm'd hunter
__________________
83 300CD- sanden, dual p/f condensers, 160a alternator, ect
91 300TD- 722.6, #22 head, 3.5L IP, w140 manifolds, ect
Reply With Quote
  #4
Old 03-07-2014, 10:43 PM
whunter's Avatar
Moderator

Join Date: Dec 2003
Location: Metro Detroit, Michigan
Posts: 17,350
moved

as requested.

.
__________________
ASE Master Mechanic
asemastermechanic@juno.com

Prototype R&D/testing:
Thermal & Aerodynamic System Engineering (TASE) Senior vehicle instrumentation technician.
Noise Vibration and Harshness (NVH).
Dynamometer.
Heat exchanger durability.
HV-A/C Climate Control.
Prototype Vehicle build.
Prototype Fleet Durability
Prototype vehicle instrumentation.
Technical Quality Auditor.
Automotive Technical Writer

1973 300D
1973 309D - stolen
1978 280SE
1980 240D
1983 300D
1984 190D
Reply With Quote
  #5
Old 03-07-2014, 10:44 PM
BenzTurbo's Avatar
300cd

Join Date: May 2012
Location: Dallas, Tx
Posts: 559
Quote:
Originally Posted by whunter View Post
as requested.

.
Thank you very much!
__________________
83 300CD- sanden, dual p/f condensers, 160a alternator, ect
91 300TD- 722.6, #22 head, 3.5L IP, w140 manifolds, ect
Reply With Quote
  #6
Old 03-08-2014, 02:00 AM
Stretch's Avatar
Gettin' outa chokey

Join Date: Sep 2009
Location: Between a rock and a hard place (Back in Holland at the moment)
Posts: 13,986
Go and get the alignment checked

Quote:
Originally Posted by BenzTurbo View Post
can someone tell me how i can stop the wear on the inside of ONE of my front tires? almost all front end parts are new and was aligned not too long ago. i haven't hit any curbs, ect. but i did replace the guide rod mount on the driver side after it had been aligned so that's the side that's wearing. all other tires are fine and doesn't seem to pull to any side. so my question is, how can i adjust the toe in/ out on that side? i think that's what's off? i would like to stop as much of this wear as i can until i can get a proper alignment. a am getting a good set of tires and wheels on craigslist and really don't want to tear them up too.
Assuming you mean brake stay = guide rod and not guide rod = tie rod

I would expect your camber to be out rather than toe.

If you have a spirit level that has a bubble for the vertical, space it out from the rim of the wheel (don't align to rubber side walls!) to see if it is vertical with weight and wheel on the ground - roll the car back and forth to allow suspension to settle before measuring.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!

Don't leave that there - I'll take it to bits!
Reply With Quote
  #7
Old 03-08-2014, 02:33 AM
BenzTurbo's Avatar
300cd

Join Date: May 2012
Location: Dallas, Tx
Posts: 559
Quote:
Originally Posted by Stretch View Post
Go and get the alignment checked



Assuming you mean brake stay = guide rod and not guide rod = tie rod

what do you mean?

I would expect your camber to be out rather than toe.

If you have a spirit level that has a bubble for the vertical, space it out from the rim of the wheel (don't align to rubber side walls!) to see if it is vertical with weight and wheel on the ground - roll the car back and forth to allow suspension to settle before measuring.
i don't have one, but by looking at the wheel it is slanted in at the top slightly.
__________________
83 300CD- sanden, dual p/f condensers, 160a alternator, ect
91 300TD- 722.6, #22 head, 3.5L IP, w140 manifolds, ect
Reply With Quote
  #8
Old 03-08-2014, 02:47 AM
Stretch's Avatar
Gettin' outa chokey

Join Date: Sep 2009
Location: Between a rock and a hard place (Back in Holland at the moment)
Posts: 13,986
Quote:
Originally Posted by BenzTurbo View Post
i don't have one, but by looking at the wheel it is slanted in at the top slightly.
Not ideal.

You can improvise with a bit of string and a small weight on the end of it. (Plumb bob)

The wheel should be as good as vertical

If it isn't then I'd check upper control arm parts first - just because they were replaced recently doesn't necessarily mean "they're good" these days. New parts quality can be shocking these days...

...I recommend an open minded systematic check of the front suspension to save yourself time in the long run.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!

Don't leave that there - I'll take it to bits!
Reply With Quote
  #9
Old 03-08-2014, 02:53 AM
BenzTurbo's Avatar
300cd

Join Date: May 2012
Location: Dallas, Tx
Posts: 559
had it up on jack stands last week when i was checking for oil leaks. i went poking through all the suspension parts and there was no play in anything. all the rubber bushings were in good shape too. what does that guide rod adjustment control? i may have not counted the threads right when i put the new one on. the alignment was done with really warn out guide rod mounts...
__________________
83 300CD- sanden, dual p/f condensers, 160a alternator, ect
91 300TD- 722.6, #22 head, 3.5L IP, w140 manifolds, ect
Reply With Quote
  #10
Old 03-08-2014, 06:28 AM
Registered User

Join Date: Feb 2014
Location: Denver, CO
Posts: 21
My only knowledge on it is specific mb tool they use for front end alignments, however on my 126 my rear tires sufferd from inside wear and was notified by MB that it was an issue with my rear springs sagging which caused the inside tire wear on the rear.
Reply With Quote
  #11
Old 03-08-2014, 06:45 AM
Registered User

Join Date: Dec 2005
Location: Carson City, NV
Posts: 3,766
That wear looks textbook for excessive negative camber (wheel leaning in at the top). You will need an alignment.
__________________
Anyone who thinks a 300D is fast drives too slow.

83 300D Turbo with manual conversion, early W126 vented front rotors and H4 headlights 351,xxx miles
08 Triumph Street Triple 21,xxx miles, lowered 10mm in front, Pirelli Angel GT tires, otherwise stock.
Reply With Quote
  #12
Old 03-08-2014, 01:40 PM
Stretch's Avatar
Gettin' outa chokey

Join Date: Sep 2009
Location: Between a rock and a hard place (Back in Holland at the moment)
Posts: 13,986
Quote:
Originally Posted by BenzTurbo View Post
... what does that guide rod adjustment control? i may have not counted the threads right when i put the new one on. the alignment was done with really warn out guide rod mounts...
If you are talking about the brake stay that goes from the lower control arm rubber joint just under the spring to the large ball-like joint on the chassis behind the wheel (sorry I need to make sure you're not talking about a tie rod)...

...then that rod mainly adjusts castor - but - when you change the length of that you also change the camber.

I can point you to a (long winded) DIY on this if you want
__________________
1992 W201 190E 1.8 171,000 km - Daily driver
1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone
1965 Land Rover Series 2a Station Wagon CIS recovery therapy!

Don't leave that there - I'll take it to bits!
Reply With Quote
  #13
Old 03-08-2014, 01:40 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 23,829
I am pretty sure I read that one of the causes of inner Tire Wear is the Upper Control Arm Bushings being shot.
I am going bey memory as I am at the Library on the computer and don't have My Notes with Me; so maybe someone can confirm that.

Also People have done Front End Alignments and 6 month-1 year later had the Uppper or Lower Control Arm Bushings Rot out on the and ruin the Alignment.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #14
Old 03-08-2014, 01:53 PM
Registered User

Join Date: Jul 2008
Posts: 3,740
You don't need an alignment....you need to replace the sway/torsion rod bushings on the firewall under the brake booster and battery tray..

Mercedes 300D torsion bar bushing..... - Mercedes-Benz Forum
__________________
Reply With Quote
  #15
Old 03-08-2014, 04:46 PM
BenzTurbo's Avatar
300cd

Join Date: May 2012
Location: Dallas, Tx
Posts: 559
Will check those as soon as I get home. Thank you!
__________________
83 300CD- sanden, dual p/f condensers, 160a alternator, ect
91 300TD- 722.6, #22 head, 3.5L IP, w140 manifolds, ect
Reply With Quote
