DIY IP timing lock
I swapped out the IP on my W210 606.912 N/A for the IP from a 603.970 that I had lying around.

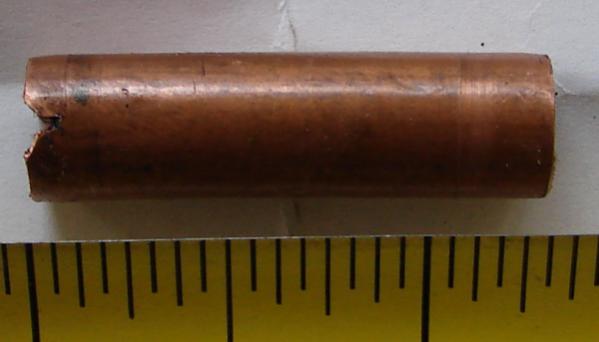

I needed to lock the IP timing for installation. I did not have the locking tool and did not want to wait for it. So I made my own. 1 5/16" long piece of 3/8" od (1/4" id) soft copper tubing. A notch cut to fit over and hold the timing ridge in place. The body of the plug for the timing port is hollow up to the head. The copper tube fits inside it. Get the timing ridge in the center of the port. Install the tube so the notch catches the ridge. Screw the plug on over the tube just a little bit tighter then finger tight.
__________________
Greg 2012 S350 BlueTEC 4Matic 2007 ML 320 CDI 2007 Leisure Travel Serenity 2006 Sprinter 432k 2005 E320 CDI 1998 SLK230 (teal) 1998 SLK230 (silver) 1996 E300D 99k, 30k on WVO Previous: 1983 240D, on WVO 1982 300D, on WVO 1983 300CD, on WVO 1986 300SDL 237k, 25k on WVO (Deerslayer) 1991 350SDL 249k, 56k on WVO - Retired to a car spa in Phoenix 1983 380 SEC w/603 diesel, 8k on WVO 1996 E300D 351k, 177k on WVO |
#2
|
||||
|
||||
What are you doing about a throttle cable? Are you using the VCV on the IP or the one by the brake booster?
Sixto MB-less |
#3
|
||||
|
||||
I'd make sure there's a way to extract the lock if it gets stuck in the port such as if the IP sprocket turns and deforms the soft copper.
Sixto MB-less |
#4
|
|||
|
|||
If you did something really stupid, like try to start the engine with the timing lock in place, you would be in trouble with either my copper tube or the factory lock.
For a throttle cable, I went out in the woods and found a W124. I pulled the hood latch cable and the end of the throttle cable. The end of the throttle cable has a provision for adjusting the length so you can adjust the "at rest" point of the cable. I attached the hood latch end of the cable to the throttle arm on the IP. I installed the adjustable end of the throttle cable in the fire wall. I attached the cable end to one of the arms that is activated by the foot throttle in the brake booster area. It took me about an hour from harvesting parts to having a working throttle. The only thing I lost is the cruise control.
__________________
Greg 2012 S350 BlueTEC 4Matic 2007 ML 320 CDI 2007 Leisure Travel Serenity 2006 Sprinter 432k 2005 E320 CDI 1998 SLK230 (teal) 1998 SLK230 (silver) 1996 E300D 99k, 30k on WVO Previous: 1983 240D, on WVO 1982 300D, on WVO 1983 300CD, on WVO 1986 300SDL 237k, 25k on WVO (Deerslayer) 1991 350SDL 249k, 56k on WVO - Retired to a car spa in Phoenix 1983 380 SEC w/603 diesel, 8k on WVO 1996 E300D 351k, 177k on WVO |
#5
|
|||
|
|||
Nice work,
__________________
|
#6
|
||||
|
||||
What was wrong with the original IP that prompted the conversion?
|
#7
|
||||
|
||||
The original IP had one of those fancy computers running it
-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket Tesla Model 3. 205,000 miles. Been to 48 states! Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels. 2014 Cadillac ELR 2013 Fiat 500E. |
#8
|
|||
|
|||
hope to hear that some 8mm elements are in your future :-)
__________________
|
#9
|
||||
|
||||
Quote:
And dynamic idle control through the ELR actuator. You can turn up base idle to get around that if necessary. How does the 606.912 governor limit compare with the 603.97? Sixto MB-less |
#10
|
||||
|
||||
the 3.5L govener would be set over 1500 rpm lower (the 3.5 is over and done at 4100 rpm, IIRC the 606 will rev to 5500?).
-J
__________________
1991 350SDL. 230,000 miles (new motor @ 150,000). Blown head gasket Tesla Model 3. 205,000 miles. Been to 48 states! Past: A fleet of VW TDIs.... including a V10,a Dieselgate Passat, and 2 ECOdiesels. 2014 Cadillac ELR 2013 Fiat 500E. |
#11
|
|||
|
|||
Quote:
I need to start a separate thread on the 606/ 603 IP swap. I have only driven the car 5 miles since the swap. I will drive it about 80 miles tomorrow and have a better idea of how it runs with that IP. I already know that it can over fuel the N/A engine. Thread on IP swap: IP Swap: 603 IP into a 606 engine
__________________
Greg 2012 S350 BlueTEC 4Matic 2007 ML 320 CDI 2007 Leisure Travel Serenity 2006 Sprinter 432k 2005 E320 CDI 1998 SLK230 (teal) 1998 SLK230 (silver) 1996 E300D 99k, 30k on WVO Previous: 1983 240D, on WVO 1982 300D, on WVO 1983 300CD, on WVO 1986 300SDL 237k, 25k on WVO (Deerslayer) 1991 350SDL 249k, 56k on WVO - Retired to a car spa in Phoenix 1983 380 SEC w/603 diesel, 8k on WVO 1996 E300D 351k, 177k on WVO Last edited by GregMN; 05-05-2014 at 01:10 PM. |
#12
|
|||
|
|||
I have been replacing the vacuum pump and timing gear on a W210 OM606.912 and have managed to reassemble the car but the injection timing is off. The car tried to start after the fuel delivery and fumbled and died.
Today I disassembled the engine again, painfully after 3 months, and am at the point of removing the injection pump. Question is can I visually time the pump correctly? Will I need too bring it in to someone with the digital tools in order to get it right? I believe that I installed the timing gear a spline or two off, may be more. Now I cannot get the basket to hold the gear or the locking tool. Will try the wooden dowel method to lock the pump and have an assistant hold the gear in place tomorrow. Do you think that this will work? Thank you for your time. |
#13
|
||||
|
||||
Actually the real Timing Locking Pin does have some protection if the Engine was run with it installed.
The sides of the Tool Punger is beveled and the Plunger is spring loaded also the groove in the Tool is rather shallow. Lastly it dose not take much rotation of the Tool and nothing is going into the slot. I know that you are happy with the results but I am wondering which is more accurate. Yours or the regular timing Pin? I don't know if I was stupid enough but I was certainly tired enough that I started a CAT Engine with Steel Timing Pin in the Fuel Injection Pump. On that particular model it shears a tiny 1/8" pin off of the Timing Gear when you do that. However, to replace the Pin you need to pull the whole Front Cover of the Engine off. My Boss was no pleased. What I have done since that time is to put a Sign on the Steering Wheel to remind Me not to Crank the Engine when I don't want that to happen.
__________________
84 300D, 82 Volvo 244Gl Diesel |
#14
|
|||
|
|||
My experience is limited to 3 IP swaps on a 601, 603, and 606. (Actually 4 times, because I had to redo one.) I was able check the timing by seeing that the timing ridge was centered in the viewing port. After the IP was installed, I rotated the engine twice, by hand, back to 15 degrees after TDC before I checked. My experience has been that if I have the crank in the proper position, and the IP lock in it's proper position, that once installed, the IP will be within the adjustment available of correct timing. On the one that I had to redo, the IP lock slipped out of time before shaft was in the gear.
Many times around here I have found that the weak link in any system is the point of human interface. That seems to be where it all goes horribly wrong....
__________________
Greg 2012 S350 BlueTEC 4Matic 2007 ML 320 CDI 2007 Leisure Travel Serenity 2006 Sprinter 432k 2005 E320 CDI 1998 SLK230 (teal) 1998 SLK230 (silver) 1996 E300D 99k, 30k on WVO Previous: 1983 240D, on WVO 1982 300D, on WVO 1983 300CD, on WVO 1986 300SDL 237k, 25k on WVO (Deerslayer) 1991 350SDL 249k, 56k on WVO - Retired to a car spa in Phoenix 1983 380 SEC w/603 diesel, 8k on WVO 1996 E300D 351k, 177k on WVO |
#15
|
|||
|
|||
thanks for your reply.
The car is scattered around in many pieces again, (while I try to fend off the curious horse) the chain tensioner is removed and the vacuum pump is as well, the bolt is removed from the timing gear and the pins are pulled from the upper chain guide and from the side of the timing gear. In your opinion, is it possible to loosen the cam gear and hold by hand while a friend pushes the chain to the side in order to remove the timing gear and the replace it in the correct position? Or do I need to remove the injection pump to get the splines aligned? And if I do remove the IP can I hold the gear in place by hand while replacing the pump? |
