#1
|
|||
|
|||
Timing chain stretch & woodruff key
zz
Last edited by Robby Ackerman; 10-27-2014 at 11:07 PM. Reason: Too much hassel to ask a question |
#2
|
||||
|
||||
The consensus around here seems to be to replace the chain every 200k miles or so. If you're at 400k you're definitely due...and at this stage fixing a few degrees of timing is nothing compared to a chain that lets loose - cheap insurance, as they say.
I just did mine and it's not that big a deal...of course I built a guide tool so I could do it without a helper.
__________________
Current Stable
|
#3
|
|||
|
|||
If you will describe exactly how you got your current measurements it may help...
points on the sprockets are not a legitimate indicator... if you got to that point you would be WAY past needing corrective measures... Usually it is the things which touch the chain which really cause a LOT of damage when they give way... if you replace the chain.. those things need renewing too....
__________________
1980 240d , chain elongation, cam marks reference: http://www.peachparts.com/shopforum/diesel-discussion/10414-help-i-need-check-stretch.html http://www.peachparts.com/shopforum/diesel-discussion/305365-9-degrees-chain-stretch.html evap fin cleaning: http://www.peachparts.com/shopforum/diesel-discussion/156207-photo-step-step-post-showing-w123-evaporator-removal-1983-240d-1982-300td.html?highlight=evaporator A/C thread http://www.peachparts.com/shopforum/diesel-discussion/297462-c-recommendations-mb-vehicles.html |
#4
|
|||
|
|||
If you've got 5* of stretch there is your timing chain wear. Iwis chains are cheap and not hard to roll in. It can be done at home for like $100. I would roll in a new chain.
__________________
68 280SL - 70 280SL - 70 300SEL 3.5 - 72 350SL - 72 280SEL 4.5 - 72 220 - 72 220D - 73 450SL - 84 230GE - 87 200TD - 90 190E 2.0 - 03 G500 Nissan GTR - Nissan Skyline GTS25T - Toyota GTFour - Rover Mini - Toyota Land Cruiser HJ60 - Cadillac Eldorado - BMW E30 - BMW 135i |
#5
|
|||
|
|||
and the appropriate slides and rails.... etc...
__________________
1980 240d , chain elongation, cam marks reference: http://www.peachparts.com/shopforum/showthread.php?threadid=10414 http://www.peachparts.com/shopforum/diesel-discussion/305365-9-degrees-chain-stretch.html evap fin cleaning: http://www.peachparts.com/shopforum/diesel-discussion/156207-photo-step-step-post-showing-w123-evaporator-removal-1983-240d-1982-300td.html?highlight=evaporator A/C thread http://www.peachparts.com/shopforum/diesel-discussion/297462-c-recommendations-mb-vehicles.html |
#6
|
||||
|
||||
I will let you decide if you want to change the Chain or use the offset Key.

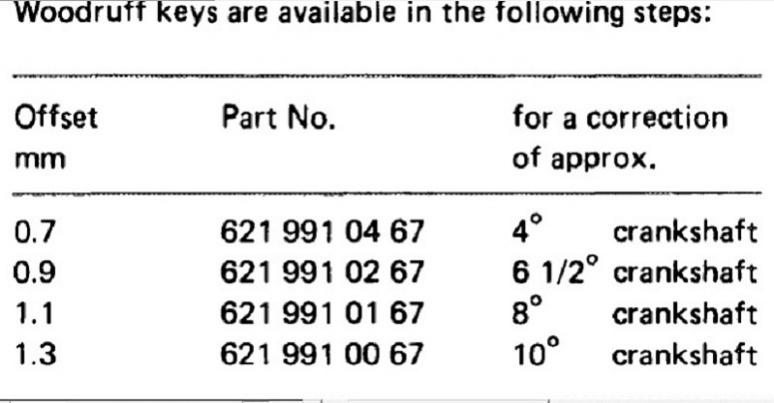

The lowest degree offset key is for 4 degrees of correction. However, you need to use the 2mm Methond for the calculation and look at the chate to be sure. From what I have read Timing Chain Failure is most often caused by the Intermediate Shaft Bushing being worn to the exthent that there is too much end play in the Timer. Too much end pay ruins the Vacuum Pump and the Pieces of that fall into the Timing Chain and or Gears. The other Vacuum Pump issues is on the Vacuum Pumps that had Bearings with a Plastic Retainer/Cage that held the Balls apart and or unshielded Bearings. The Vacuum Pumps on the later models have a Steel Bearing Cage and Washers that limit the chance of bearings coming out. However, on any of them if you hear noise from the Vacuum Pump Timer area it is time to stop the Car and get it towed Home till you can fiture out what the cause of the Noise is. Anyone wanting more detailed info: Repair Links Fast navigation Fast navigation Do It Yourself Links http://www.peachparts.com/shopforum/diy-links-parts-category/ http://www.peachparts.com/Wikka/DoItYourSelf
__________________
84 300D, 82 Volvo 244Gl Diesel |
#7
|
|||
|
|||
zz
Last edited by Robby Ackerman; 10-27-2014 at 11:08 PM. |
#8
|
||||
|
||||
Also, I believe if you install a 2* key, it shows up as a 4* change on the crank. So if you're measuring 5* of stretch at the crank pulley, a 3* key would be good.
__________________
'84 190D 2.2 5MT (Red/Palomino) Current car. Love it! '85 190D 2.2 Auto *Cali* (Blue/Blue) *sold* http://badges.fuelly.com/images/sig-us/302601.png http://i959.photobucket.com/albums/a...0/sideview.png |
#9
|
||||
|
||||
Going by the crank by aligning cam marks is not wise...
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread "as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do! My drivers: 1987 190D 2.5Turbo 1987 190D 2.5Turbo 1987 190D 2.5-5SPEED!!! 1987 300TD 1987 300TD 1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere! |
#10
|
|||
|
|||
What Vstech said....
I had suspicions ... that is why I asked him to describe how he got his original degree reading.... The chances he used the 2mm movement of the correct valve.... slim....
__________________
1980 240d , chain elongation, cam marks reference: http://www.peachparts.com/shopforum/showthread.php?threadid=10414 http://www.peachparts.com/shopforum/diesel-discussion/305365-9-degrees-chain-stretch.html evap fin cleaning: http://www.peachparts.com/shopforum/diesel-discussion/156207-photo-step-step-post-showing-w123-evaporator-removal-1983-240d-1982-300td.html?highlight=evaporator A/C thread http://www.peachparts.com/shopforum/diesel-discussion/297462-c-recommendations-mb-vehicles.html |
#11
|
||||
|
||||
Quote:
__________________
84 300D, 82 Volvo 244Gl Diesel |
#12
|
||||
|
||||
Parts of the Manual; but was for use in conjunction with the 2mm Method.
__________________
84 300D, 82 Volvo 244Gl Diesel |
#13
|
|||
|
|||
zz
Last edited by Robby Ackerman; 10-27-2014 at 11:08 PM. |
#14
|
||||
|
||||
0 would be ideal. With everything bang on, the engine will be able to function optimally. 0* difference between cam and crank, with injection timing dead on. That will give you the best possible running.
__________________
'84 190D 2.2 5MT (Red/Palomino) Current car. Love it! '85 190D 2.2 Auto *Cali* (Blue/Blue) *sold* http://badges.fuelly.com/images/sig-us/302601.png http://i959.photobucket.com/albums/a...0/sideview.png |
#15
|
|||
|
|||
Thank you!
|
