Water/diesel separator

I've been getting some really bad diesel lately, so after looking at my choices and other peoples ideas I found a cheap easy fix. I ordered a wix filter housing that will fit Baldwin and those 2 micron cat filters. The housing was $28 and the Baldwin filter with the drain is $16. It will be here all wednesday. I figured it would cost me at least $30 for the tap and banjo bolt to make my sock filter housing work.
__________________
84 300sd 2.47 dif 360k
26 mpg needs lots of love
given to me in pitty

89 civic hatchback auto 140k
33mpgs soon to be low to mid 40's
been in the family since mile 1

85 300d with unknown knock. driven over 30k with knock and still going. sold for $800
Reply With Quote
  #2
Old 04-27-2015, 09:20 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 22,114
Are you putting it on the suction or pressure side of the Fuel Supply/Lift Pump.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #3
Old 04-27-2015, 09:37 PM
mach4's Avatar
Registered User

Join Date: Jul 2011
Location: San Diego County, CA
Posts: 2,736
Years ago I installed a Racor filter/separator in a Perkins diesel in a Vega project. I was burning Mexican diesel that was absolutely horrible - more like pea soup than anything else. I used an electric pump to bring the fuel to the Racor which then went to the normal filter. The system also used an aux tank and the fuel was filtered as it was transferred into the primary tank. Bad fuel can definitely ruin your whole day.

In contrast I've now got 65-70k miles on my current pre filter and primary filter with no loss of pressure but I use a known good local source and on the road only use name brand truck stop diesel.
__________________
Current Stable
  • 380SL (diesel)
  • Corvette C5
  • Manx
  • Baja Bug
  • F350 Powerstroke
  • Auburn Boattail Speedster replica
Reply With Quote
  #4
Old 04-28-2015, 12:19 AM
Registered User

Join Date: Feb 2012
Location: Idaho
Posts: 370
I haven't decided. The housing has four ports so I could just replace the the sock housing. When the set up gets here I'll post some pics. I looked at the racor systems but to pricey for my taste. I feel that this will be best bang for the buck.
__________________
84 300sd 2.47 dif 360k
26 mpg needs lots of love
given to me in pitty

89 civic hatchback auto 140k
33mpgs soon to be low to mid 40's
been in the family since mile 1

85 300d with unknown knock. driven over 30k with knock and still going. sold for $800
Reply With Quote
  #5
Old 04-28-2015, 09:03 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 22,114
Quote:
Originally Posted by benzdude42 View Post
I haven't decided. The housing has four ports so I could just replace the the sock housing. When the set up gets here I'll post some pics. I looked at the racor systems but to pricey for my taste. I feel that this will be best bang for the buck.
If you replace the stock Housing you will need to make up another 3 Way connector (Blue Arrow) for the return lines/hoses.
Attached Thumbnails
Water/diesel separator-fuel-filter-housing-o2-2-o-rings.jpg
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #6
Old 04-29-2015, 05:20 AM
Registered User

Join Date: Feb 2012
Location: Idaho
Posts: 370
yeah. i was thinking about that today at work. i think what i'm going to do is but it after the lift pump before the second filter and run a fuel heater before the second(soon to be third) filter to test an idea i had.
__________________
84 300sd 2.47 dif 360k
26 mpg needs lots of love
given to me in pitty

89 civic hatchback auto 140k
33mpgs soon to be low to mid 40's
been in the family since mile 1

85 300d with unknown knock. driven over 30k with knock and still going. sold for $800
Reply With Quote
  #7
Old 04-29-2015, 05:25 AM
Skid Row Joe's Avatar
PRESIDENT DONALD J. TRUMP

Join Date: Oct 2007
Location: DONALD J. TRUMP'S AMERICA THE BEAUTIFUL!
Posts: 6,675
I've had a Racor water separator for over 30 years on my diesels. Nothing new here.
__________________
Breitbart - One Voice Silenced, Millions Awakened

06 E320 CDI - PEWTER/CHARCOAL
Reply With Quote
  #8
Old 04-29-2015, 10:18 AM
Mad Scientist

Join Date: Dec 2012
Location: Oregon
Posts: 1,178
Looking forward to seeing what you come up with.

I bought a Racor 500 "equivalent" Chinese knockoff and had planned to use that as the primary filter, and do Diesel911's bushing mod to my stock secondary filter location so I can use CAT 2 micron filters. Other priorities came up, but it is still very much on the list.
__________________
1990 617 swapped Toyota Pickup 4x4, 22-24 MPG, 34k miles on swap
2008 Forester, 74k, 25mpg, my daily driver
2004 Honda Element AWD, 138k, girlfriend's daily driver
Reply With Quote
  #9
Old 04-29-2015, 11:56 AM
Registered User

Join Date: May 2007
Location: Out in the Boonies of Hot, Dry, Dusty, Windy Nevada
Posts: 9,585
Quote:
Originally Posted by Skid Row Joe View Post
I've had a Racor water separator for over 30 years on my diesels. Nothing new here.
Same here, I use the Racor 200FG on my 82 Datsun Diesel PU for the past 34 year and 400+ thousand miles.

I have one on the 80 240D as well. It replaced the Pre-Filter. Just run the hose to the Racor, then to the lift Pump.
The Racor has the water trap sediment bowel, and the filters come in
2 micron, 10 micron and I think 15 micron.


Charlie
__________________
there were three HP ratings on the OM616...

1) Not much power
2) Even less power
3) Not nearly enough power!! 240D w/auto

http://i30.photobucket.com/albums/c3...ilys/boobs.gif


Anyone that thinks a 240D is slow drives too fast.

80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff

We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
Reply With Quote
  #10
Old 04-29-2015, 11:58 PM
Registered User

Join Date: Oct 2014
Posts: 84
Quote:
Originally Posted by charmalu View Post
Same here, I use the Racor 200FG on my 82 Datsun Diesel PU for the past 34 year and 400+ thousand miles.

I have one on the 80 240D as well. It replaced the Pre-Filter. Just run the hose to the Racor, then to the lift Pump.
The Racor has the water trap sediment bowel, and the filters come in
2 micron, 10 micron and I think 15 micron.


Charlie
You know, this might just be too simple.... (why didn't I think of that!?!)

Got a pic of your install?
Reply With Quote
  #11
Old 04-30-2015, 01:33 AM
Registered User

Join Date: Feb 2012
Location: Idaho
Posts: 370

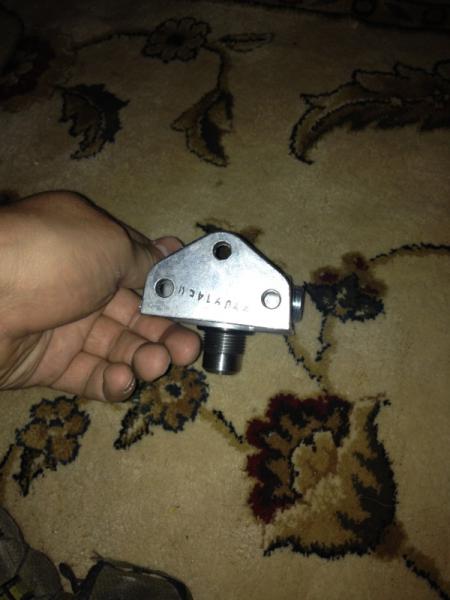

Water/diesel separator-img_1696.jpg
Water/diesel separator-img_1695.jpgWater/diesel separator-img_1694.jpgWater/diesel separator-img_1693.jpgWater/diesel separator-img_1692.jpg
__________________
84 300sd 2.47 dif 360k
26 mpg needs lots of love
given to me in pitty

89 civic hatchback auto 140k
33mpgs soon to be low to mid 40's
been in the family since mile 1

85 300d with unknown knock. driven over 30k with knock and still going. sold for $800
Reply With Quote
  #12
Old 04-30-2015, 01:34 AM
Registered User

Join Date: Feb 2012
Location: Idaho
Posts: 370
should be able to install sometime tomorrow or Friday.
__________________
84 300sd 2.47 dif 360k
26 mpg needs lots of love
given to me in pitty

89 civic hatchback auto 140k
33mpgs soon to be low to mid 40's
been in the family since mile 1

85 300d with unknown knock. driven over 30k with knock and still going. sold for $800
Reply With Quote
  #13
Old 05-04-2015, 07:13 PM
Registered User

Join Date: Feb 2012
Location: Idaho
Posts: 370
I ran into a problem. I didn't have the right fittings for my fuel line so I had to put it on hold until today. I'll have pictures up after class's. I'm not supper happy with where the mounting is but it good for now.
__________________
84 300sd 2.47 dif 360k
26 mpg needs lots of love
given to me in pitty

89 civic hatchback auto 140k
33mpgs soon to be low to mid 40's
been in the family since mile 1

85 300d with unknown knock. driven over 30k with knock and still going. sold for $800
Reply With Quote
