OM606 Viscous Fan Bolt

Anyone know if it is hex or torx, planning on this R&R next week. I ask because PP sells a replacement torx---not too fond of them so far.
__________________
Treetops
87 300TD 219K Miles
99 E300 217K Miles
Reply With Quote
  #2
Old 04-29-2015, 04:36 PM
ROLLGUY's Avatar
ROLLGUY

Join Date: Oct 2007
Posts: 5,882
Quote:
Originally Posted by treetops View Post
Anyone know if it is hex or torx, planning on this R&R next week. I ask because PP sells a replacement torx---not too fond of them so far.
As far as I know it is hex (8mm I believe).
Reply With Quote
  #3
Old 04-29-2015, 05:58 PM
Registered User

Join Date: Jul 2003
Location: Northern Virginia
Posts: 1,070
Yes 8mm hex. Torque to 33 ft lbs. The stubby short 8mm hex socket and pulley holder tools make this a 4 minute job.
__________________
2009 E320 Bluetec 108,000
1995 E300D 306,000 sold
1996 Ford Taurus LX 130,000 Sold
1985 300TD Still 225,000
2016 Ford Fusion 14,900
Reply With Quote
  #4
Old 04-29-2015, 06:19 PM
Registered User

Join Date: Mar 2014
Location: Philly
Posts: 435
Great I have the tools then, WP pulley holder and I used a 8mm hex wrench and cheater bar on the 603. Not 4 minutes but quick and easy. Seems I can also unbolt the rad support for more room too.

Now which clutch does not roar like a truck?
__________________
Treetops
87 300TD 219K Miles
99 E300 217K Miles
Reply With Quote
  #5
Old 04-29-2015, 07:56 PM
Control Freak

Join Date: Oct 2011
Location: Columbia, SC
Posts: 3,189
Definitely get the shorty 8mm hex socket bit, or you will be calling it the vicious fan coupling bolt.
__________________
2014 ML350 Bluetec (wife's DD)
2008 E320 Bluetec (my DD)
2008 ML320 CDI (Older son's college DD)
1998 E300DT (Younger son's college DD)
1987 300TD sold to vstech
----------
gone but living on
1983 240D (body to greazzer, engine to t walgamuth)
Reply With Quote
  #6
Old 04-29-2015, 08:02 PM
Control Freak

Join Date: Oct 2011
Location: Columbia, SC
Posts: 3,189
Quote:
Originally Posted by treetops View Post
Now which clutch does not roar like a truck?
The official MB one sure does, when my engine hits 82 degrees it locks in and it sounds like the engine on a garbage truck...
__________________
2014 ML350 Bluetec (wife's DD)
2008 E320 Bluetec (my DD)
2008 ML320 CDI (Older son's college DD)
1998 E300DT (Younger son's college DD)
1987 300TD sold to vstech
----------
gone but living on
1983 240D (body to greazzer, engine to t walgamuth)
Reply With Quote
  #7
Old 04-29-2015, 10:24 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,393
Replacement bolts are indeed Torx. PITA to find a tool that fits in the available space; you end up buying a whole set for one driver. Last visit to the junkyard I robbed a few cars of their hex-head bolts for my spares kit; hopefully I'll have enough to last a lifetime (mine and the car's).

Jeremy
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #8
Old 04-29-2015, 10:24 PM
Jeremy5848's Avatar
Registered Biodiesel User

Join Date: Mar 2006
Location: Sonoma Wine Country
Posts: 8,393
Replacement bolts are indeed Torx. PITA to find a tool that fits in the available space; you end up buying a whole set for one driver. Last visit to the junkyard I robbed a few cars of their hex-head bolts for my spares kit; hopefully I'll have enough to last a lifetime (mine and the car's).

Jeremy
__________________

"Buster" in the '95

Our all-biodiesel family
1995 E300D (W124) . .239,000 miles My car
1996 E300D (W210) . .313,000 miles Wife's car
Santa Rosa population 170,685 (2012)
Total. . . . . . . . . . . . 722,685
"Oh lord won't you buy me a Mercedes Benz."
-- Janis Joplin, October 1, 1970
Reply With Quote
  #9
Old 05-10-2015, 10:06 PM
Registered User

Join Date: Mar 2014
Location: Philly
Posts: 435
Its in and sounds like a truck!! That was actually a lot easier on the 606 than the 603. The trick is undo the rad support and voila plenty of room to work with and thankfully no vicious radiator cuts. 8mm allen with a cheater pipe, pulley holder and room to spare made this R&R a breeze. I think it took about 40 minutes, not counting a phone call and fixing some other things.

Now, I have hopes this will also help the AC work better by keeping the coolant temps in check. I noticed the AC seems to be definitely not as cold at around 90C vs 80C. Interestingly, temps never got above that w/o a good fan clutch even in stop and go city traffic.

Well ready for summer anyway.
Attached Thumbnails

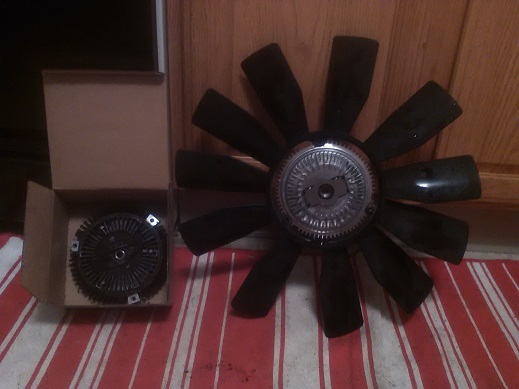

OM606 Viscous Fan Bolt-cltfan.jpg   OM606 Viscous Fan Bolt-cltfan1.jpg
__________________
Treetops
87 300TD 219K Miles
99 E300 217K Miles
Reply With Quote
  #10
Old 05-20-2015, 12:11 AM
Registered User

Join Date: Oct 2009
Location: Humble, TX
Posts: 50
Fan Bolt

You cannot use a hex wrench there is not enough room. I used an 8mm viking socket a 1/4" breaker bar with a deep socket in 3/8" extension. Just barely enough room to get the socket in. You can cut off a hex wrench but unless you do it is too long. Make sure the hex is all the way in the bolt is very soft and easy to bugger up. I threw mine away and bought a hard bolt to replace it.
Reply With Quote
  #11
Old 05-20-2015, 12:25 PM
Registered User

Join Date: Mar 2014
Location: Philly
Posts: 435
I beg to differ, unbolting the rad. support and moving it forward provides plenty of room, more than available than on my W124. After it is loose, the bolt can be turned by hand and goes back in the same way.

Agreed, make sure the tool is in the bolt head fully so as to not strip/bugger it up.
__________________
Treetops
87 300TD 219K Miles
99 E300 217K Miles
Reply With Quote
  #12
Old 05-21-2015, 02:10 PM
Registered User

Join Date: Oct 2009
Location: Humble, TX
Posts: 50
treetops,

Did not unbolt the radiator so it was tight next time I'll try that thanks for the info. How do you move the radiator forward on a 606.910 I just went and looked at mine and there is no way I can see to unbolt the radiator support. Would like to know so I can do it next time. Sounds much much easier.

Last edited by JRImrie; 05-21-2015 at 03:15 PM. Reason: Question
Reply With Quote
  #13
Old 05-21-2015, 05:02 PM
Registered User

Join Date: Mar 2014
Location: Philly
Posts: 435

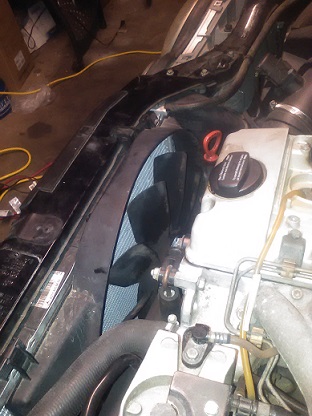

In the second photo the two bolts at the top of the picture are for the rad support there are a total of 4 unscrew them and you can pull the radiator forward. I would assume it's the same for your model.
Reply With Quote
  #14
Old 05-21-2015, 05:11 PM
Registered User

Join Date: Nov 2010
Location: TX
Posts: 3,383
The radiator support for a W124 is welded on, its not removable unless you wish to cut it. User JRMrie claims an OM606.910 engine - which was only installed in W124 models.

The way I remove it from a W124 with 6 cyl diesel is to first crack it loose with a regular 8mm hex key with an 8mm socket and small extension on its tail to gain leverage.

once loose

I use the little shorty socket I have to undo it all the way

to install it one has to hold it like a cigarette to push it in and then use the shorty socket to complete the threading.
__________________
2012 BMW X5 (Beef + Granite suspension model)

1995 E300D - The original humming machine (consumed by Flood 2017)
2000 E320 - The evolution (consumed by flood 2017)
Reply With Quote
  #15
Old 05-21-2015, 08:34 PM
Registered User

Join Date: Mar 2014
Location: Philly
Posts: 435
Ahh, my bad. It is always helpful to have a sig that denotes from where and model(s)
__________________
Treetops
87 300TD 219K Miles
99 E300 217K Miles
Reply With Quote
