w123 door lock actuator diaphragm replacement

I have a 1982 240d and the door lock actuator diaphragm is torn.
Are these replaceable?

If so, any idea who would sell them?

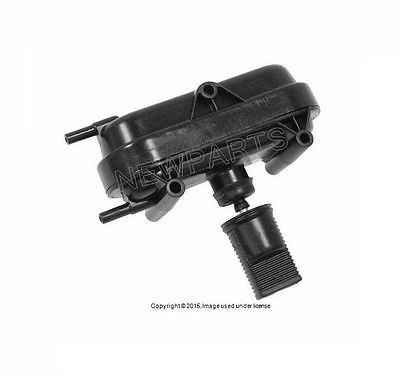

I've attached a picture of the type of actuator that's in my car.


Thx

pete
Attached Thumbnails
w123 door lock actuator diaphragm replacement-diaphram.jpg
Reply With Quote
  #2
Old 06-09-2016, 11:07 PM
Registered User

Join Date: Sep 2013
Posts: 1,445
Yes, easily replaceable and relatively cheap. Remove the door panel (card). There are two sheet metal screws holding the actuator in place. Mark the two hoses and remove the two hoses. If the actuator is the original MBZ part and you know it is defective use a pair of diagonal pliers to carefully cut and remove the white plastic rod holder detaching the lock rod from the actuator (be careful not to cut through the metal lock rod). If your old actuator is as pictured, grasp the plastic collar surrounding the jaws holding the metal rod and push it down towards the actuator body (it may take some force to move the collar downward). Remove the two sheet metal screws and remove the actuator. You may need to use a screwdriver to slightly spread the jaws in order to release the metal rod from the jaws.

On the new actuator make sure the collar surrounding jaws is all the way down against the body of the actuator. Install the actuator so that the jaws surround the metal rod to the appropriate depth of the old actuator (it is OK to spread the jaws slightly for the metal rod to fit). Before installing the screws, grab the collar with two fingers and force it all the way up which will lock the metal rod in place (you will hear a snap when the collar is fully locked in place). Install and tighten the two screws. Install the two hoses in their proper place and you are finished. Test the door lock before replacing the door panel (card).

Last edited by BWhitmore; 06-10-2016 at 12:28 AM.
Reply With Quote
  #3
Old 06-10-2016, 05:55 AM
Registered User

Join Date: Jul 2008
Location: Baltimore, MD
Posts: 250
My actuator looks exactly like the picture. Thanks for the detailed description on removing the rod. If took me a while to figure out that you push the collar down to remove the rod. It looks like it should unscrew.

The only damage to the actuator is a small tear in the diaphragm. Is there any way to replace just the diaphragm?

It looks like its a few pennies worth of rubber.

Thanks.

pete
Reply With Quote
  #4
Old 06-10-2016, 08:15 AM
Registered User

Join Date: Aug 2006
Posts: 691
New originals are available on this site for only $18.
Hardly worth trying to repair. George Murphy sells diaphragms for earlier models (80 and older) but I don't see any for 81 and up.
