W123 Coolant and Heater Hoses Part Numbers

Here is a list of coolant hose part numbers I've compiled for the 1981-1985 w123 300D, 300CD 300TD 617 diesel models. Includes 1981 N/A and Turbo version with ACCIII climate control. Include some of 1985 California version which has a difference in the Aux pump hoses and I believe monovalve hoses and expansion tank main hose.

Radiator-
Radiator lower: 123 501 18 82
Radiator upper: 123 501 00 82
Expansion tank main hose: 123 501 21 82
Expansion tank secondary hose: bulk hose with 6mm inner diameter and 9 mm outer diameter

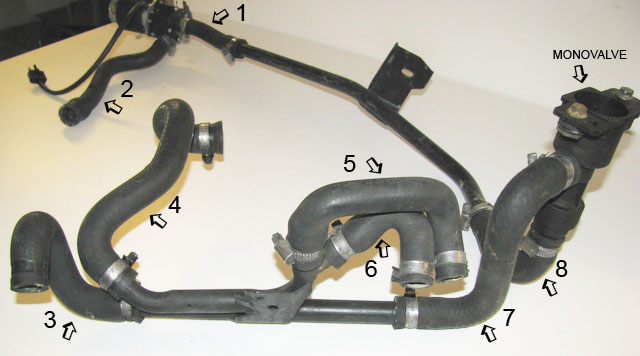

Heater hoses (numbers correspond to the numbers on the attached pic.) -

1.) Auxiliary pump to feed pipe: 123 832 94 94........California 1985 version "Z" or "S" hose. Might be unavailable but possible substitute: 201 832 13 94
2.) Auxiliary pump to engine: 123 832 91 94............California 1985 version "J" hose: 123 832 50 93
3.) Heater Core left to feed pipe: 123 832 89 94
4.) Engine to heater feed pipe: 123 832 84 94
5.) Heater core right to feed pipe: 123 832 88 94
6.) Heater core center to feed pipe: 123 832 87 94
7.) Monovalve to feed pipe: 123 832 90 94
8.) Monovalve to auxilary pump feed pipe: 123 832 93 94


(Picture taken from google search)






Any other w123 models, feel free to post the part numbers and corresponding pictures if you have them..



.

Attached Thumbnails
W123 Coolant and Heater Hoses Part Numbers-w123heaterhoses.jpg
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #2
Old 08-18-2016, 02:20 AM
Registered User

Join Date: Jul 2016
Posts: 121
Thank you for the informative post! As I look at those hoses, I'm guessing if you had to, hoses 1 and 2 would be easily replaceable with standard heater hose if necessary; the others...with all the bends? Not so much.
Reply With Quote
  #3
Old 08-18-2016, 10:25 AM
Registered User

Join Date: Nov 2015
Posts: 687
Number two would not likely work with standard heater hose, as it is flared at one end. Apparently silicone hose is stretchy enough to slip over the larger fitting at the block though.
Related: i pulled the hoses from monovalve to aux pump to block last night. Found a quite a bit of corrosion on the outside of the metal pipe that runs between them under the old hoses. Havent decided if I will use POR-15 or standard spraypaint to coat the outside of the pipe after I clean off the corrosion yet. I would suggest planning to replace any of the hoses you disconnect if they are original to the car.
__________________
'85 300D - federal spec, built in late 84. 85 300D Complete AC System Rebuild
Reply With Quote
  #4
Old 09-08-2016, 10:09 AM
Registered User

Join Date: Nov 2015
Posts: 687
For the line between the aux water pump and the monovalve feed pipe (#1 above) the two sides of the hose are probably slightly different diameters. The aux water pump is roughly 1/2", and the monovalve feed pipe is roughly 5/8". You might be able to find some bulk hose that would work, but I decided to just order the OE MB part.
__________________
'85 300D - federal spec, built in late 84. 85 300D Complete AC System Rebuild
Reply With Quote
  #5
Old 04-04-2019, 12:27 PM
Greg

Join Date: Aug 2016
Location: Oregon
Posts: 17
Thanks, just so I'm sure on this, the Auxiliary pump only runs after you shut off the car and I don't need it to feed the heater correct?
Greg
Reply With Quote
  #6
Old 04-04-2019, 01:34 PM
Maximan1's Avatar
Registered User

Join Date: Sep 2018
Location: Anaheim
Posts: 564
Quote:
Originally Posted by Gmerrell View Post
Thanks, just so I'm sure on this, the Auxiliary pump only runs after you shut off the car and I don't need it to feed the heater correct?
Greg
Auxiliary pump runs at low engine speeds, but many people have deleted it with no ill effects. It's supposed to run when you're sitting in stop and go traffic or idling for a extended time, but when it breaks it slows coolant flow through it.

That's just what I've read from others on this forum.
__________________
Milan Brown 1979 240D, rebuilt OM617.952 turbo diesel, rebuilt 722.315 transmission (my only daily driver)

Instagram: @maximed93
Reply With Quote
  #7
Old 04-04-2019, 02:41 PM
Registered User

Join Date: Sep 2013
Location: Alhambra California
Posts: 3,129
It is recommended that the auxiliary pump be fused with an inline 2 amp fuse. If the pump fails it can also take out the CC push button unit.
Reply With Quote
  #8
Old 04-04-2019, 09:35 PM
Registered User

Join Date: Sep 2004
Posts: 8,971
Quote:
Originally Posted by Maximan1 View Post
Auxiliary pump runs at low engine speeds...
How does the ACC system receive information about engine speed?
__________________
When cryptography is outlawed, bayl bhgynjf jvyy unir cevinpl.
Reply With Quote
  #9
Old 04-22-2019, 03:57 PM
Registered User

Join Date: Jun 2006
Posts: 320
The one you didn't know about

This is a very helpful thread, *however*, there is one crucial hose that is missing. People (non-professional technicians) typically discover it *after* they've drained the cooling system and they suddenly realize that they are in trouble since they have no such hose.

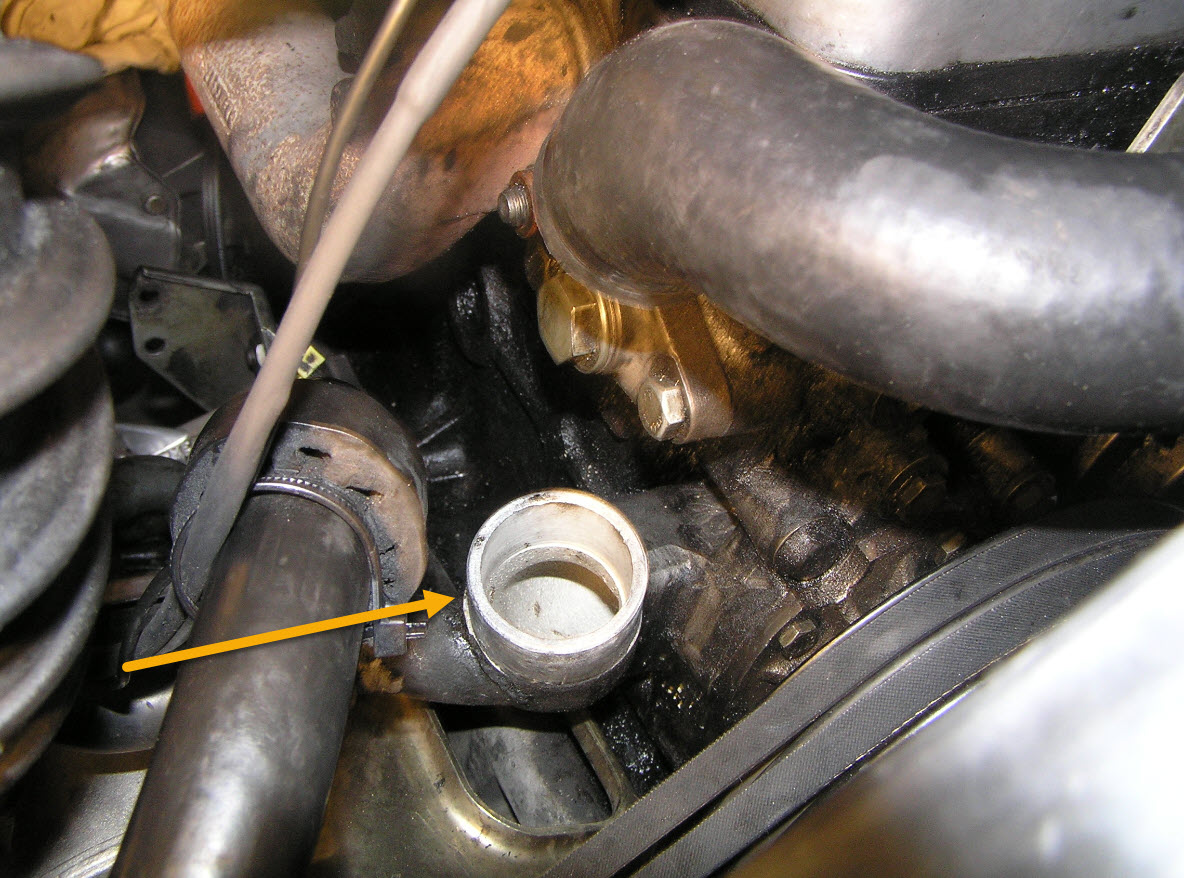

I am referring to the short (2"?) hose that is situated between the thermostat housing's bottom (vertical, not diagonal) port and the port adjacent to the water pump. See the attached pics. 1-3.

So, what to do when one seeks to replace this hose? Well, I believe (but cannot prove) that M-B does not sell the hose. Thus, one uses a piece of 1-5/8" hose (see attached pic. 4). When cutting the length needed, seek to replicate the length as best you can - there is not a lot of acceptable latitude to deviate.
Attached Thumbnails
W123 Coolant and Heater Hoses Part Numbers-pic.-1.jpg   W123 Coolant and Heater Hoses Part Numbers-pic.-2.jpg   W123 Coolant and Heater Hoses Part Numbers-pic.-3.jpg   W123 Coolant and Heater Hoses Part Numbers-pic.-4.jpg
Reply With Quote
  #10
Old 05-24-2019, 04:52 PM
ngarover's Avatar
Registered User

Join Date: Oct 2010
Location: Northern Georgia
Posts: 1,964
Blew my SLS High pressure line a couple weeks ago. got around to replacing it today... took it for a test drive, and guess what, the 2" hose failed! I mean totally came apart! I guess the fluid from the sls had softened it up? Anyways, working on fixing it right now....


Quote:
Originally Posted by 5cylinder View Post
This is a very helpful thread, *however*, there is one crucial hose that is missing. People (non-professional technicians) typically discover it *after* they've drained the cooling system and they suddenly realize that they are in trouble since they have no such hose.

I am referring to the short (2"?) hose that is situated between the thermostat housing's bottom (vertical, not diagonal) port and the port adjacent to the water pump. See the attached pics. 1-3.

So, what to do when one seeks to replace this hose? Well, I believe (but cannot prove) that M-B does not sell the hose. Thus, one uses a piece of 1-5/8" hose (see attached pic. 4). When cutting the length needed, seek to replicate the length as best you can - there is not a lot of acceptable latitude to deviate.
Reply With Quote
  #11
Old 08-05-2019, 10:04 PM
Registered User

Join Date: Mar 2019
Location: Oregon
Posts: 32
Do we have a part number of the metal hose that bolts under the battery tray? This metal pipe has hoses on each end of it. One hose hits the mono valve on the end nearest the battery tray, the other hose that attaches to it hits the aux water pump. Thanks in advance to anyone with that part number.
Reply With Quote
  #12
Old 08-08-2019, 01:14 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,159
Quote:
Originally Posted by 5cylinder View Post
This is a very helpful thread, *however*, there is one crucial hose that is missing. People (non-professional technicians) typically discover it *after* they've drained the cooling system and they suddenly realize that they are in trouble since they have no such hose.

I am referring to the short (2"?) hose that is situated between the thermostat housing's bottom (vertical, not diagonal) port and the port adjacent to the water pump. See the attached pics. 1-3.

So, what to do when one seeks to replace this hose? Well, I believe (but cannot prove) that M-B does not sell the hose. Thus, one uses a piece of 1-5/8" hose (see attached pic. 4). When cutting the length needed, seek to replicate the length as best you can - there is not a lot of acceptable latitude to deviate.
I've used a bulk 42mm hose in the past. Perhaps 1 5/8 might fit a bit tighter. I also thought about trying a 41mm hose.
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #13
Old 08-08-2019, 01:21 PM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,159
Quote:
Originally Posted by Mr White View Post
Do we have a part number of the metal hose that bolts under the battery tray? This metal pipe has hoses on each end of it. One hose hits the mono valve on the end nearest the battery tray, the other hose that attaches to it hits the aux water pump. Thanks in advance to anyone with that part number.
You are referring to the metal line between hose #1 and #8 in my above post.

I found two part numbers :123-830-83-15 and 123-830-20-16

I am not clear which is correct for what application. If I had to guess, 123-830-83-15 would be for the standard 617 models and 123-830-20-16 would be for the 1985 California 617 models.

Pelican has them both BTW
