Moog or Lemforder lower ball joints?

Moog has a new design lower ball joint that eliminates the dust boot. I'm thinking of going with these on the 1984 300DT rather than the Lemforder design but I'm concerned they will fit properly.


"Moog Ball Joint housings are forged and/or machined from a single block of fine-grain alloy steel, providing unequaled strength and durability. Powdered-metal gusher bearings, with grease grooves, resist wear better than conventional designs. Moog's innovative approach allows grease TO flow through the bearing TO the stud AND provides a smooth, durable surface that extends service life.

Moog's design also transfers the load to the housing and provides strength and stability. Patented pressed-in cover plates minimize radial and axial deflection, securing a solid-steering feel. Moog uses premium polychloroprene and polyurethane — superior compounds that stand up to temperature extremes, dirt and abrasion — to seal the boots on our ball joints.

On select Moog ball joint applications there is a pre-installed integral dust boot. These ball joints look cosmetically different but maintain the same level of performance you come to expect from Moog Problem Solver. This product feature provides easier installation."
__________________
1991 560SEL, 1984 300DT
Reply With Quote
  #2
Old 09-06-2016, 11:30 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,186
Got any pics? I'd be interested in the MOOG bootless design.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #3
Old 09-07-2016, 12:38 AM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,423
http://www.moog-suspension-parts.com/moog-integral-dust-boots.asp



The boot is closer to the pivot so it doesn't move as much.

Sixto
83 300SD

Last edited by sixto; 09-07-2016 at 01:05 AM.
Reply With Quote
  #4
Old 09-07-2016, 01:30 AM
Registered User

Join Date: Aug 2006
Posts: 379
Call me old fashioned BUT I think that the best design has a zerk fitting and grease with molybdenum disulfide added from time to time.

Yup, old fashioned.
__________________
1999 Mercedes E300TD daily driver sold at 238K miles 106K miles were mine, rust worm got it :-(
2006 Mercedes CDI new daily driver! 56,000 miles May 2016 now 85,625 April 2018.
Reply With Quote
  #5
Old 09-07-2016, 03:00 AM
DeliveryValve's Avatar
Chairman of my Benz

Join Date: Jun 2006
Location: Central California
Posts: 4,105
I have been using Moog products for years. But if they can't easily proof read their ad......

Quote:
DON'T WORRY, IT'S AN ACTUAL DUST BOOT

So don't worry when you open your package and it looks like you were shorted a dust boot. It's their, and it's better than ever. Take a look at how Moog's new dust boot is a much improved design than the traditional set up.
Then I wonder what issues are they overlooking in their product lines?


.
Attached Thumbnails

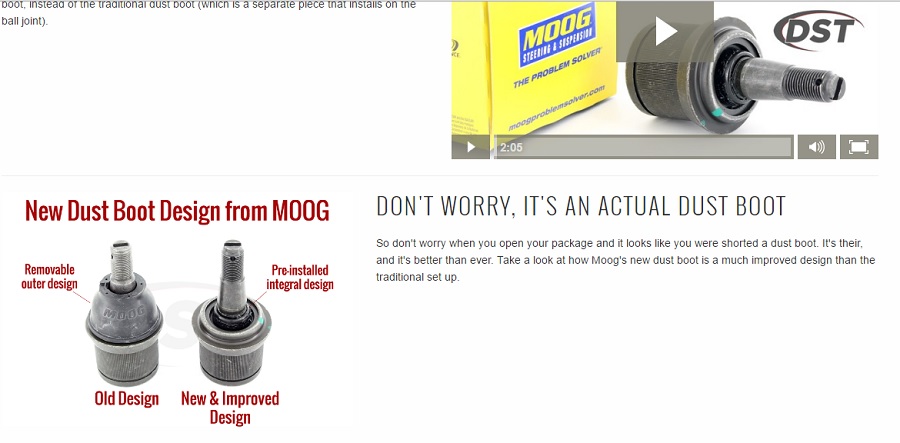

Moog or Lemforder lower ball joints?-moogintegraldustbootad.jpg
__________________
1983 123.133 California
- GreaseCar Veg System


Reply With Quote
  #6
Old 09-07-2016, 08:24 AM
Registered User

Join Date: Aug 2006
Posts: 711
A nice groove there for dirt and moisture to accumulate.
Reply With Quote
  #7
Old 09-07-2016, 09:23 AM
Registered User

Join Date: Jan 2006
Location: Tucson, AZ
Posts: 4,271
The Moog ball joint I recently received for my W115, even though they show it to be the "bootless" type, was just a standard booted part. No grease fitting.

Too bad too because I was interested in trying the new design. It looks promising. Since the lubricant only works on the ball and receiver surfaces it doesn't make sense to have the large pocket filled with grease.
__________________
“Whatever story you're telling, it will be more interesting if, at the end you add, "and then everything burst into flames.”
― Brian P. Cleary, You Oughta Know By Now
Reply With Quote
  #8
Old 09-07-2016, 10:13 AM
Registered User

Join Date: Sep 2012
Location: Wilmington, NC by the Atlantic ocean
Posts: 2,372
I have a set of the new style on our E150 van. So far so good but they're pretty new. I've used Moog for decades with good results so I'll give them the benefit of the doubt - guess we'll see in a few years.

Dan
Reply With Quote
  #9
Old 09-07-2016, 10:15 AM
oldsinner111's Avatar
love all animals

Join Date: Nov 2008
Location: bristol,tn
Posts: 5,143
look up where the part is made.Even germans are making **** in china now
__________________
veteran,mother german,born in stuttgart,ashamed of what america has turned into,religous,and the right are fecal matter
Reply With Quote
  #10
Old 09-07-2016, 01:41 PM
Registered User

Join Date: Sep 2006
Location: Middle TN
Posts: 3,518
How long will Lemforders last? A long time.

Bought - from the OE supplier!!!!

Some things work as designed without a lot of maintenance and there isn't much point in changing.

Now moving on to the next issue.
__________________
85SD 240K & stopped counting. 84SD 180,000. Thinking of painting both.
Reply With Quote
  #11
Old 09-07-2016, 02:39 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 25,120
Either one is likely to last the rest of the life of your car.

If the Lemforders still have the Plastic Boots the boots seem to last forever compared to rubber boots and offer a opporunity to lift the boot and add more grease.
__________________
84 300D, 82 Volvo 244Gl Diesel
Reply With Quote
  #12
Old 09-07-2016, 02:42 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 25,120
Quote:
Originally Posted by sixto View Post
Moog's Integral Dust Boot - Aftermarket Suspension Parts



The boot is closer to the pivot so it doesn't move as much.

Sixto
83 300SD
I think the Boot while still intact offer better protection in the face of wet and road salt.
I think rust is going to start right at the sealing edge just like it does eith lip seals.

If you want something really good get the bootless one and then also add a boot.
__________________
84 300D, 82 Volvo 244Gl Diesel

Last edited by Diesel911; 09-09-2016 at 07:02 PM.
Reply With Quote
  #13
Old 09-09-2016, 09:01 AM
ngarover's Avatar
Registered User

Join Date: Oct 2010
Location: Northern Georgia
Posts: 1,780
Quote:
Originally Posted by Junkman View Post
How long will Lemforders last? A long time.

Bought - from the OE supplier!!!!

Some things work as designed without a lot of maintenance and there isn't much point in changing.

Now moving on to the next issue.
5 years and 100K miles on my Lemforders on my 85 wagon. Everything fit right when we did the work and have hd no issues since. Checked and they are still totally fine, but will go with them again in the distant future.
Reply With Quote
  #14
Old 09-09-2016, 02:52 PM
fahrvergnugen's Avatar
Yeah, THAT guy...

Join Date: Jul 2014
Location: Olathe, CO
Posts: 649
Before I came to Mercedes, I drove a Volvo. Lemforder is an OE supplier for Volvo as well. During that time (starting 5 years ago), we began to see that Lemforder was made in China. IOW, the Lemforder of now is not the Lemforder of old. And yes, the Chinese stuff was crap.

I'd buy Moog over Lemforder, but then again I get a discount.. :-)
__________________
---------------------------------------------------------------

1983 300TD, 215K

Pics here... http://s86.photobucket.com/user/diutley/library/
Reply With Quote
  #15
Old 09-09-2016, 07:06 PM
Diesel911's Avatar
Registered User

Join Date: Sep 2007
Location: Long Beach,CA
Posts: 25,120
One of the things I like about eBay is you can ask the seller what country the item is made in (sometimes that is in the Ad text). You don't have to buy from them but knowing what country they the item is made in means there is a good chance the same item sold by another seller is also made in the same country.
about 2/3rds of the time eBay sellers answer your questions.

For the W123s so far as I have read the Lower Ball Joints are made in Germany and the price is extremely reasonable.

I used Moog Track Arms on my Van steering but I did not order them till I found out they were made in the USA. So If I am taking the time to order them and have them shipped I take a little extra time to see if I can find out where the item is made.

Did the same with a Timken Front Hub which turned out to be made in the USA. Timken is one of the companies that also sells made in china stuff.
__________________
84 300D, 82 Volvo 244Gl Diesel
