Identify 3.5L or 3.0L OM603 in vehicle

I found a 91 350SDL that I am thinking of buying to steal parts from.

I have read that MB replaced a lot of failed 3.5L OM603 engines with 3.0L OM603 engines.

How can I tell if the motor in the car is the 3.5 or the 3.0?

I want the 3.5L IP and the 55 trim T3 turbo from the 3.5 to put on a different motor.

Thanks

Attached Thumbnails

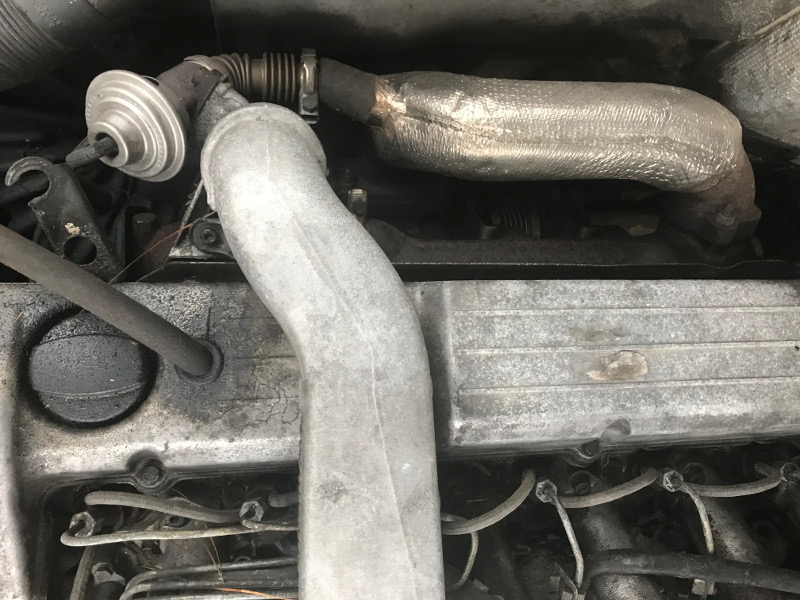

Identify 3.5L or 3.0L OM603 in vehicle-ip.jpg   Identify 3.5L or 3.0L OM603 in vehicle-top.jpg   Identify 3.5L or 3.0L OM603 in vehicle-turbo.jpg
Reply With Quote
  #2
Old 02-13-2018, 08:23 AM
Registered User

Join Date: Sep 2007
Location: Calgary Alberta Canada
Posts: 1,277
It would be the independant mechanics who would replace the block but likely reuse the turbo, head and IP. MB replaced the engine with upgraded rods but same engine.
__________________
92 e300d2.5t
Reply With Quote
  #3
Old 02-13-2018, 09:02 AM
Father Of Giants's Avatar
Registered User

Join Date: Feb 2017
Location: Newport News, Virginia
Posts: 1,535
All 90 - 91 350SDL's and 350SD's have the 3.5L.
The odds of it being swapped to a 3.0L is next to none, the factory only put in another 3.5L as far as I'm aware.

Also the oil filler cap is not original, how in the hell do you loose that? The original crankcase vent tube is plumbed into the top of the airbox when it could clearly just go into the hole coming out of the intake tube right beside the dipstick.

Whoever had this vehicle had NO CLUE what they where doing. I hope you're not going for the motor, it's probably shot.
__________________
1986 Mercedes 300SDL Black - 320,000 miles. Out of retirement

1997 E300 Captain Slow - 218,000 miles my daily

2000 Mercedes E320 Black - 136,000 miles - New daily driver.

Don't forget to grease the screw and threads on the spring compressor.
Reply With Quote
  #4
Old 02-13-2018, 09:57 AM
A guy who likes to Benz

Join Date: May 2010
Location: DC Metro/Maryland
Posts: 5,736
Quote:
Originally Posted by Father Of Giants View Post
All 90 - 91 350SDL's and 350SD's have the 3.5L.
The odds of it being swapped to a 3.0L is next to none, the factory only put in another 3.5L as far as I'm aware.

Also the oil filler cap is not original, how in the hell do you loose that? The original crankcase vent tube is plumbed into the top of the airbox when it could clearly just go into the hole coming out of the intake tube right beside the dipstick.

Whoever had this vehicle had NO CLUE what they where doing. I hope you're not going for the motor, it's probably shot.
The oil filler cap is MB though. That's what the replacements looked like for many years.
__________________
I recondition w123/w126/w124/w140/r107/r129/ steering boxes!


1984 300D "Elsa" odo reset 6/2011 111k
1983 300TD "Mitzi" ~268k OM603 powered
1995 E300 "Adelheid" 262k [Sold]
Reply With Quote
  #5
Old 02-13-2018, 10:30 AM
Father Of Giants's Avatar
Registered User

Join Date: Feb 2017
Location: Newport News, Virginia
Posts: 1,535
Quote:
Originally Posted by martureo View Post
The oil filler cap is MB though. That's what the replacements looked like for many years.
Oh wow, the more you know!
__________________
1986 Mercedes 300SDL Black - 320,000 miles. Out of retirement

1997 E300 Captain Slow - 218,000 miles my daily

2000 Mercedes E320 Black - 136,000 miles - New daily driver.

Don't forget to grease the screw and threads on the spring compressor.
Reply With Quote
  #6
Old 02-13-2018, 11:11 AM
Benzguy300

Join Date: Dec 2006
Location: Fontana Ca
Posts: 1,364
Quote:
Originally Posted by Billybob535 View Post
I found a 91 350SDL that I am thinking of buying to steal parts from.

I have read that MB replaced a lot of failed 3.5L OM603 engines with 3.0L OM603 engines.

How can I tell if the motor in the car is the 3.5 or the 3.0?

I want the 3.5L IP and the 55 trim T3 turbo from the 3.5 to put on a different motor.

Thanks
The pictures here are from a W126 3.0 it’s a 603.960 & .963 the 3.5 it’s a 603.97x this is how you can tell it should be a stamp in the top of the block with the numbers so you can tell
Reply With Quote
  #7
Old 02-13-2018, 05:21 PM
sixto's Avatar
smoke gets in your eyes

Join Date: Jun 2000
Location: SF Bay Area
Posts: 20,793
The engine number is on a horizontal block surface ahead of the IP. You might have to clean off grime to read it. 60396x is 3.0, 60397x is 3.5.

Statistically, a turbo without ARV would be a 55 trim. A turbo with ARV would be a 50 trim. I’ve never seen a KKK turbo on a 3.5.

Rev the cr@p out of it. If it won’t rev past 4800rpm it’s probably a 3.5 IP

x2 fixing the breather hose. It looks like the fitting in the turbo intake hose was left open.

Sixto
98 E320s sedan and wagon
Reply With Quote
  #8
Old 02-13-2018, 05:46 PM
WTB: 94/95 E320 Wagon

Join Date: Oct 2007
Location: Charleston SC
Posts: 2,687
Get the numbers off the side of the IP, there is a metal tag, and research those via Google to see which pump it is.
__________________
Respectfully,
/s/
M. Dillon
'87 124.193 (300TD) "White Whale", ~392k miles, 3.5l IP fitted
'95 124.131 (E300) "Sapphire", 380k miles
'73 Balboa 20 "Sanctification"
Charleston SC
Reply With Quote
  #9
Old 02-13-2018, 05:50 PM
Registered User

Join Date: Feb 2018
Posts: 24
I am not after the motor itself just the injection pump and maybe the turbo in order to swap them onto an OM606 (to get rid of the computer controlled IP and put it in a non MB vehicle).

I will take this bit of info back to the seller and see what I can find - "The engine number is on a horizontal block surface ahead of the IP. You might have to clean off grime to read it. 60396x is 3.0, 60397x is 3.5."

Thanks

Bob
Reply With Quote
  #10
Old 02-14-2018, 08:10 AM
Registered User

Join Date: Feb 2018
Posts: 24
Thanks to everyone for the info. The seller sold the car to someone else. No big deal I will just wait for the next one.
