Interesting leak down test vid

Leak down https://www.youtube.com/watch?v=_3wNGGs5fXM

Compression https://www.youtube.com/watch?v=oVsSN7H_eBk

and here's his channel.

https://www.youtube.com/watch?v=_3wNGGs5fXM

__________________
85SD 240K & stopped counting painted, putting bac together. 84SD 180,000. sold to a neighbor and member here but I forget his handle. The 84 is much improved from when I had it. 85TD beginning to repair to DD status. Lots of stuff to do.
Reply With Quote
  #2
Old 06-22-2018, 10:51 PM
Father Of Giants's Avatar
Registered User

Join Date: Feb 2017
Location: Newport News, Virginia
Posts: 1,597
Would sure love to use a protractor that fits inside an om603 crank pulley. Would make doing a leak down test a lot easier on a diesel.
Reply With Quote
  #3
Old 06-23-2018, 09:05 AM
Registered User

Join Date: Dec 2006
Posts: 3,944
No need for a protractor. Use a cloth tape measure to measure the circumference. Start at TDC, divide by 3 and make your marks.
Reply With Quote
  #4
Old 06-23-2018, 10:02 AM
Registered User

Join Date: Jan 2012
Posts: 7,534
It doesn't need to be that difficult, they are finding exact TDC to check injector pump timing. A chalk mark is enough when doing a leak down.

This leak down test is what I've been pushing when diagnosing a combustion to coolant leak or a cylinder with low compression.
Reply With Quote
  #5
Old 06-23-2018, 10:48 AM
funola's Avatar
Registered User

Join Date: May 2005
Location: NYC
Posts: 8,245

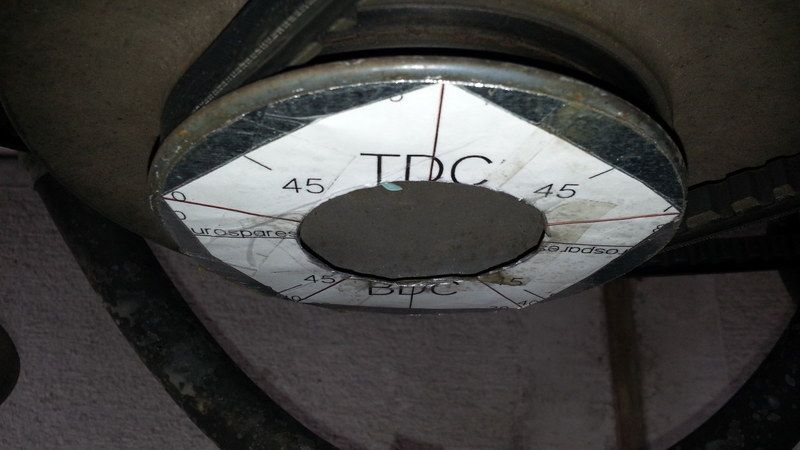

Make a template out of cardboard and protractor and tape it on, with a hole in the middle for the 27 mm socket. I made a permanent one out of a sheet of tin and magnets. Let's see if this photobucket link works.

__________________
85 300D turbo pristine w 157k when purchased 161K now
83 300 D turbo 297K runs great. SOLD!
83 240D 4 spd manual- parted out then junked

Last edited by funola; 06-23-2018 at 12:16 PM.
Reply With Quote
  #6
Old 06-23-2018, 03:35 PM
Registered User

Join Date: Sep 2006
Location: Middle TN
Posts: 4,160
So,

360/5=72* for a 617

every 60* for 6 cylinder

and 90* for 4 cylinder?

Would accessing through injector hole or glow plug be preferable when you have no particular reason to remove the GP or Injector except to perform the test?
Does removing the hard lines (617) automatically cut the fuel leaving the injection pump or would fuel end up all over the engine bay?
__________________
85SD 240K & stopped counting painted, putting bac together. 84SD 180,000. sold to a neighbor and member here but I forget his handle. The 84 is much improved from when I had it. 85TD beginning to repair to DD status. Lots of stuff to do.
Reply With Quote
  #7
Old 06-23-2018, 09:35 PM
Father Of Giants's Avatar
Registered User

Join Date: Feb 2017
Location: Newport News, Virginia
Posts: 1,597
How common is it to have cylinder leakage coming from the crankcase in an OM603? If the bottom end is leaking then things can get expensive and i'll be better off hunting for a used short block.

I'm hoping the leakage is from the air intake and exhaust valves from the head, then I can get the head rebuilt and be fine.

__________________
1998 Ford Escort ZX2 5 speed - 279,000 miles My Daily

1992 Mercedes 300D 2.5 202,000 - Pure junk
2000 Mercedes E320 Black - 136,000 miles - Needs repair

Don't forget to grease the screw and threads on the spring compressor.
