blower cover removal help

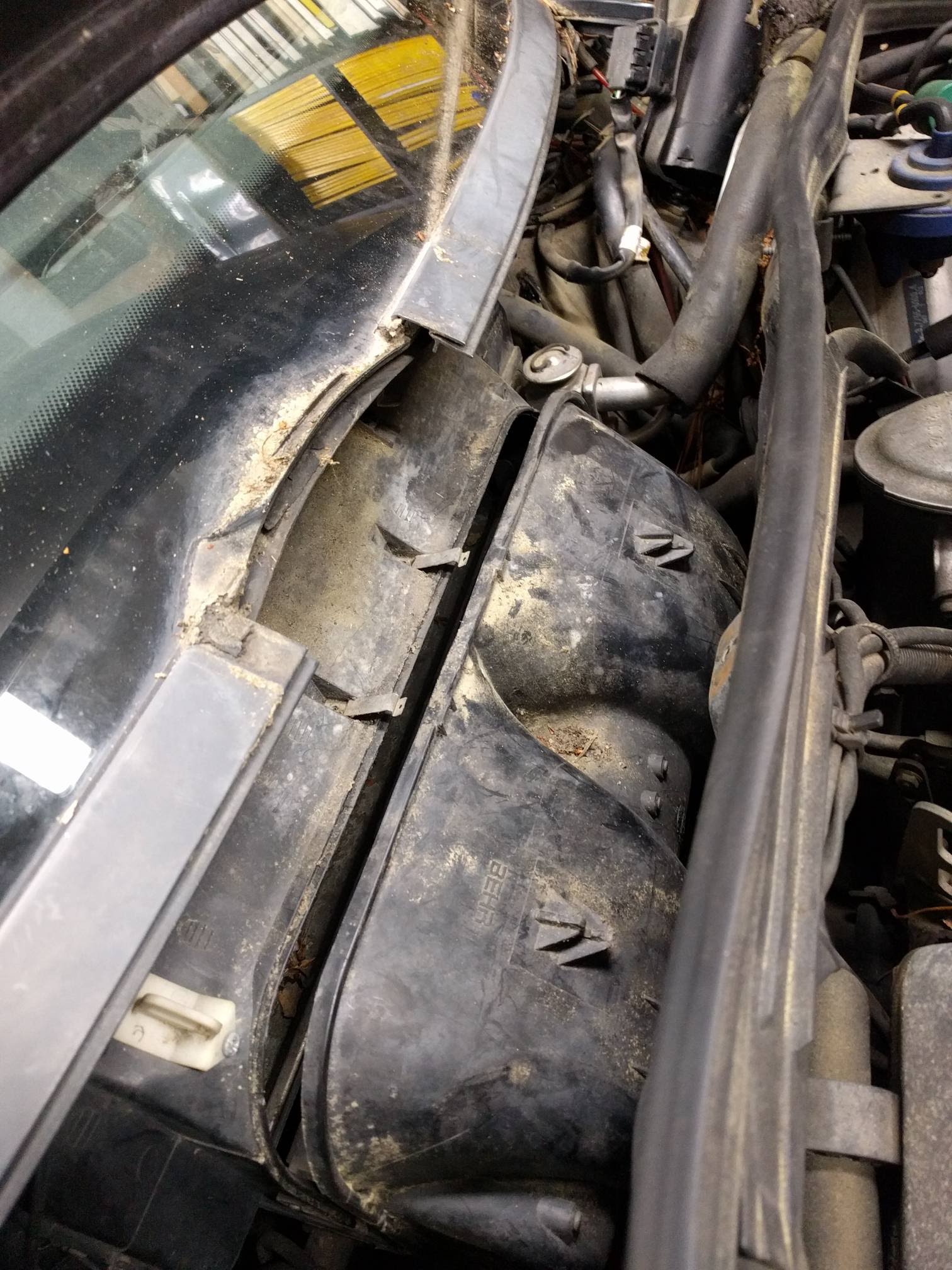

how does this come off my 190d? john said the aluminum firewall has to move but i don't see how.

please help! thanks. see pic
Attached Thumbnails
blower cover removal help-e99c213685d660dcd26498e083d700f561f09ee7-1.jpeg
__________________
Ben
1987 190d 2.5Turbo
Reply With Quote
  #2
Old 06-17-2019, 06:58 AM
Registered User

Join Date: Sep 2006
Location: Middle TN
Posts: 3,612
Don't know about the 190 but on a 126, there are bolts with 8 mm heads that hold the fiirewall in. Look carefully on the front of the panel and also near the bottom. Pull the rubber strip that is currently on the top of the panel off 1st.
__________________
85SD 240K & stopped counting. 84SD 180,000. Thinking of painting both.
Reply With Quote
  #3
Old 06-17-2019, 05:00 PM
Registered User

Join Date: Jun 2004
Location: West of Ft. Worth. TX
Posts: 4,150
Not familiar personally with the 190.
However, here is the information from the FSM:
https://www.startekinfo.com/StarTek/outside/11832/?requestedDocId=11832
https://www.startekinfo.com/StarTek/outside/11832/Resources/201Create/PDF/20003.pdf
__________________
Sam

84 300SD 350K+ miles ( Blue Belle )
Reply With Quote
  #4
Old 06-17-2019, 06:16 PM
Registered User

Join Date: Dec 2006
Posts: 3,459
Yup. Look along the sides. There are bolts that hold that piece to the firewall or inner fender. Itís tough to reach them all, but if you get a few loose you can push it forward out of the way.
Reply With Quote
  #5
Old 06-18-2019, 12:35 PM
Registered User

Join Date: Nov 2012
Location: Mystic, CT
Posts: 5
I have a few 190’s and I can usually get the blower cover off without touching firewall cover.
There are two more of those same type of clips that you see at the top way down low along the sides. They must be popped out as well. It can be a real bear because they are so low.
I usually use some type of home made tool with a 90 degree bend to reach down along the side and pop out. You then just pivot the top forward towards the engine.
