#16
|
||||
|
||||
When I was looking for these years ago, they were nowhere to be found. Literally, nowhere and the proverbial "unobtanium". Now, I found all sorts of W123 heated switches with the correct pigtails. Finding the rear seat B-pillar pods is a different story, but I think I have a solution. The wiring harness looks simple enough. But, I found the correct type of plugs, so I can mount the plugs to the pad's wire leads, and do the wiring down the road when I do the Feintuft Velour carpeting.
|
#17
|
||||
|
||||

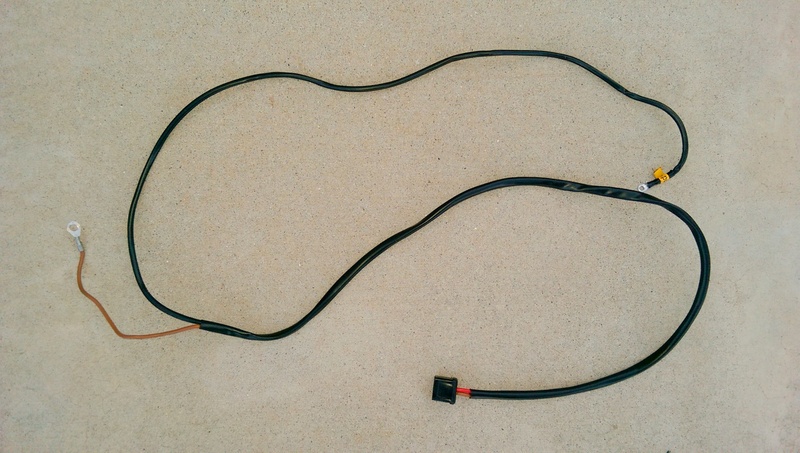

This is what the wire harness that the wire harness for the rear seat heaters attaches to looks like. The little ground wire on each harness attaches to a ground screw behind the instrument panel.

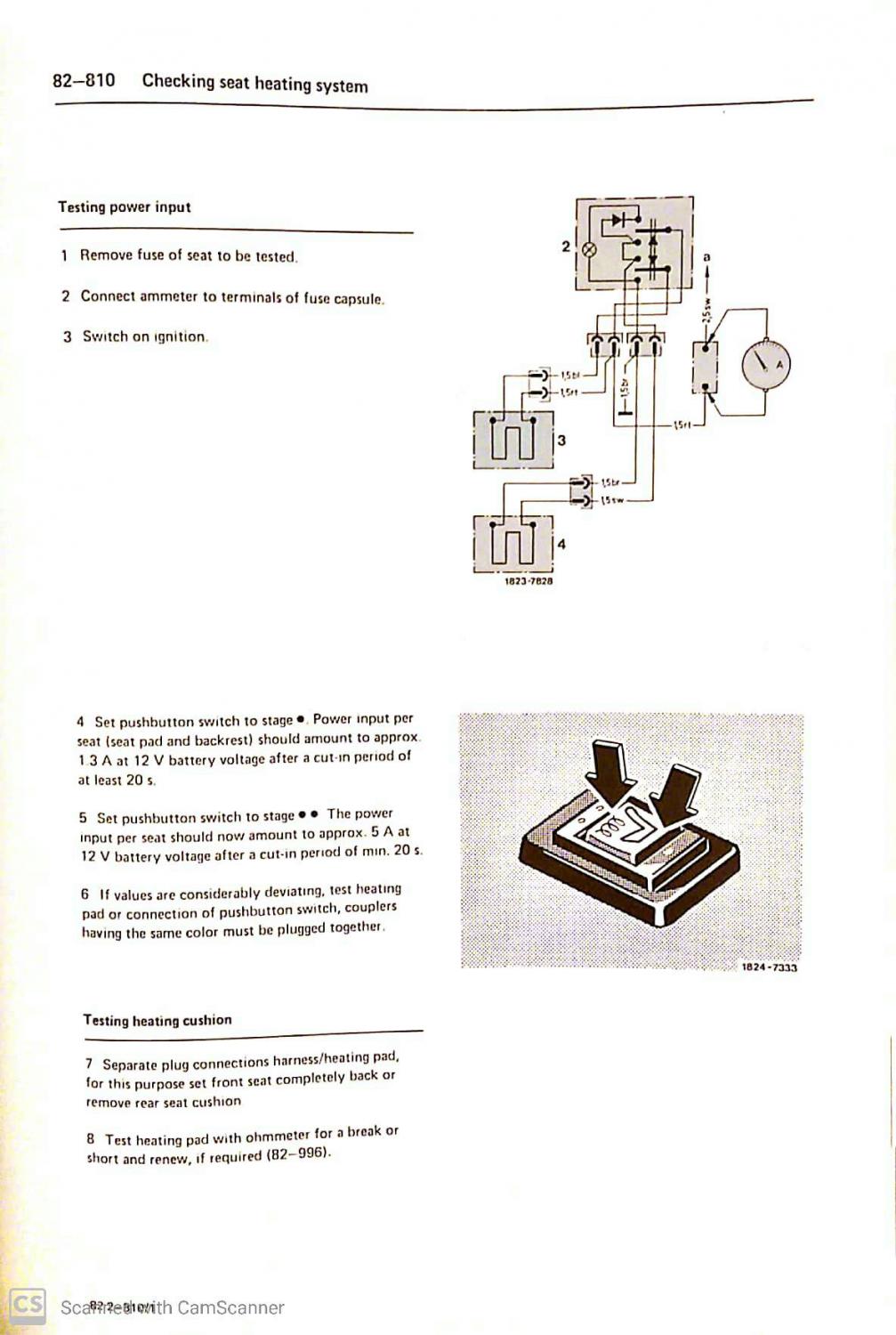

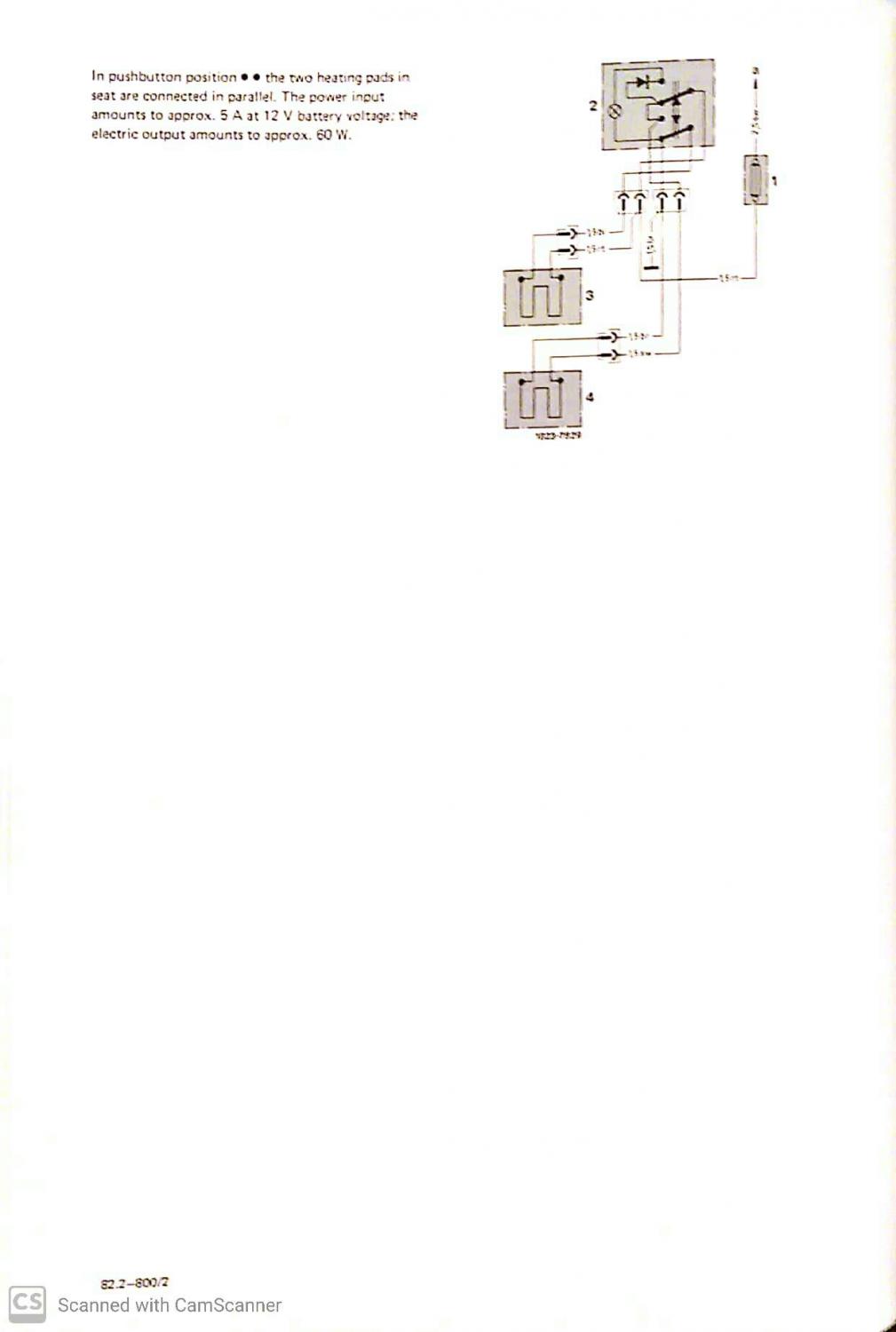

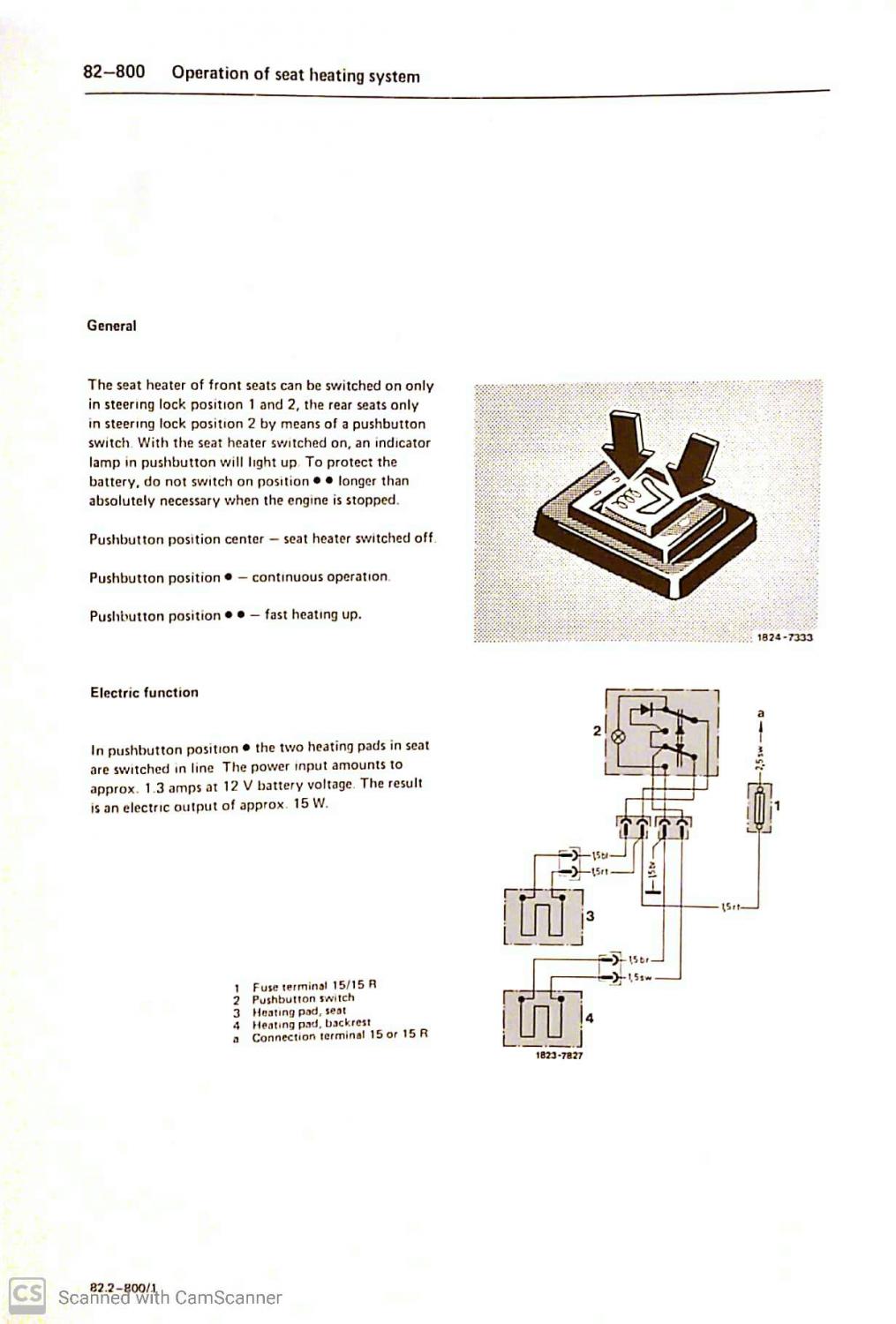

Here are pages from the W116 factory service manual. Maybe they will help with making a wire harness, since the wires tend to criss-cross as there is both a high and low heat setting. There are also lightbulbs inside, which can be removed by carefully prying off the switch top and using a piece of hose. I had a Milan Brown 1979 W116 300SD and then bought a Cypress Green 1979 W116 300SD parts car. The parts car had front and rear seat heaters from the factory. I removed them and intended to install them in my brown 300SD, but ended up selling it to try to raise money to get a decent fintail. I listed the seat heater parts for sale and didn't get any interest except for a local person who wanted them for a W123 300CD. He bought them along with the orthopedic seat parts. I ended up getting my current black (was originally Walnut Brown) 1980 W116 300SD, and the person who bought the seat heater parts gave the rear harness and B-pillars back to me. I ended up finding a front wire harness on this forum from a W116 6.9 that someone was parting out. Someone on W116.org was pulling parts from a 6.9 a year or two ago, and I encouraged them to remove the complete seat heater wire harness, but it didn't happen. I feel bad, because right when I was getting into Mercedes, I parted out a Euro-spec 1977 W116 450SE which had a front seat heater, but I didn't pull the wire harness and gave away the shell. Then I installed the wire harnesseses from the green parts car in my 300SD--but instead of using the auxiliary use box, I just wired them into the #15 and #16 fuses for the power windows, since I deleted them.
__________________
Stop paying for animal enslavement, cruelty, and slaughter. Save your health and the planet. Go vegan! I did 18 years ago. https://challenge22.com/ DON'T MESS WITH MY MERCEDES! 1967 W110 Universal Wagon, Euro, Turbo Diesel, Tail Fins, 4 Speed Manual Column Shift, A/C 1980 W116 300SD Turbo Diesel, DB479 Walnut Brown, Sunroof, Highly Optioned, 350,000+ Miles |
#18
|
||||
|
||||
Those are not the switches I have typically seen in a W123 (at least the later ones). They might be for the earlier style center console or for a W116.
Sent from my iPhone using Tapatalk
__________________
1985 Euro 300TD Turbo |
#19
|
||||
|
||||
The small orange-reddish squares are the only ones I have ever seen in a W123 sedan and the ones which the German W123 Club reproduced. The black switches with a seat icon would not be the correct ones for a sedan or coupe
|
#20
|
||||
|
||||
I’m not sure as I only really ever worked On the 83-85 cars. Here are some pics from an 83 brochure.
Sent from my iPhone using Tapatalk
__________________
1985 Euro 300TD Turbo |
#21
|
||||
|
||||
I've seen both switch styles in W123's. The later production W123's had the long black switches. It would likely have coincided with the other switches changing shape.
