Need help to find the shift chart


Guys - I know it is here someplace but just cannot find it. Can someone locate the shift chart for me - the one which shows the K1, K2, etc and what is involved in each shift.

Drives me crazy that it is not a Sticky.

I don't know what transmission you have, but I've used the following manuals:
MB 722 ATSG Tranny Manual
MB 722 Complete Tranny Manual
MB 722 Tranny Adjustments and Valve Body
Mercedes 722.4 Adjustment Guide


I don't know where I got them but they're probably readily available.

722.3 Transmission Manuals and Documentation - Dieselbenz.info Wiki


The info you are looking for is in the FSM for sure, and is duplicated in several 3rd party repair manuals at that archive.org link.

https://encrypted-tbn0.gstatic.com/images?q=tbn:ANd9GcQzePiECUx1wK4WgqRYTy-GVWKALaMe8zFvig&usqp=CAU

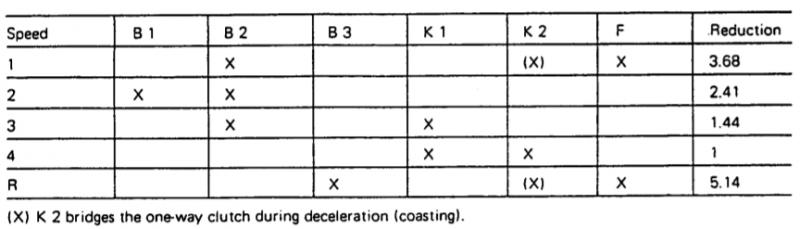

https://www.peachparts.com/shopforum/attachments/diesel-discussion/148269d1530084176-722-3-elements-relation-722.3-elements-relation-gearing.jpg

Frank - thank you. The second one is what I wanted. I am going to start a new thread and just call it Shift Table so folks can find it.

Knew it was there somewhere.

Wouldn't you know it - I finally found my thread recommending the mods make the shift table a sticky. Right after Frank Reiner responded to my request.

The response from Peachparts was that they got rid of stickies.

http://www.peachparts.com/shopforum/diesel-discussion/385881-moderator-maybe-make-sticky.html
