Injector balancing: Shady Tree Mech. style

Started this thread so not to hi-jack another one.

Seems you need a pop tester and lots of different thickness washers and other parts.

below is a few post coppied over to this one for reference.

__________________
"If anyone knows other lessons I need to learn, please tell me. I'm tired of learning them the hard way".
by JerryBro


The Glow Plug Wait: This waiting period is a moment of silence to pay honor to Rudolph Diesel. The longer you own your diesel the more honor you will give him". by SD Blue

My normal daily life; either SNAFUed- Situation Normal... All Fouled Up, or FUBARed- Fouled Up Beyond All Repair

62 UNIMOG Camper w/617 Turbo, 85 300SD daily driver- both powered by blended UCO fuels
Reply With Quote
  #2
Old 06-11-2004, 12:18 PM
coachgeo's Avatar
Registered User

Join Date: Jan 2003
Location: TX between Dallas and OK
Posts: 1,793
Quote:
Originally posted by coachgeo
How do you adjust them and what is being adjusted" Is pop pressure being equalized between each injector? I assume so. Does one adjust them by the size of the washer that sits on the spring inside the injector ?
Quote:
Originally posted by TomJ
Yes, pop pressure is being equalized in the set, good way to put it.

Yes, adjusted by washer thickness that sits on the spring.

For those who have bought one of these ebay pop testers, you can also switch and swap housings and springs to come up with the bar you are shooting for if you don't have a wide selection of shim washer thicknesses.
__________________
"If anyone knows other lessons I need to learn, please tell me. I'm tired of learning them the hard way".
by JerryBro


The Glow Plug Wait: This waiting period is a moment of silence to pay honor to Rudolph Diesel. The longer you own your diesel the more honor you will give him". by SD Blue

My normal daily life; either SNAFUed- Situation Normal... All Fouled Up, or FUBARed- Fouled Up Beyond All Repair

62 UNIMOG Camper w/617 Turbo, 85 300SD daily driver- both powered by blended UCO fuels
Reply With Quote
  #3
Old 06-11-2004, 12:27 PM
coachgeo's Avatar
Registered User

Join Date: Jan 2003
Location: TX between Dallas and OK
Posts: 1,793

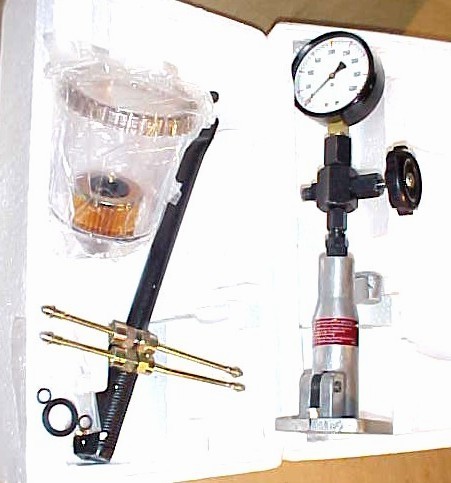

HERE is a picture of a pop testor. Sorry I cant just put the pic here. Apparently you cant use an [img] link to a file that already exist on this forum. Sounds like a dumb way to write the coding but that's how it is.
