Intercooler

Just a quick note on what I have done today. I picked up a 63 ford falcon radiator, made a mount for it. Made a mount for the stock oil cooler and for my sierra cosworth intercooler. Moved my parking heater back so i have room for a real airbox/filter and tomorrow it all goes in.

I have to move one of the AC hoses so I'll have to make something up for that as well. I'll post some photos tomorrow once its all done.

__________________
1998 Mercedes E300TD

1983 Mercedes 240D Turbo, 131bar injectors, Cosworth intercooler and 63' Ford Falcon radiator, Ardic Parking heater, Headlight wipers, Best 38.6mpg.

1973 Saab 96 Rally Car, 1.8l V4 with all the race bits
Reply With Quote
  #2
Old 04-12-2009, 08:59 PM
Registered User

Join Date: Nov 2006
Location: New Hampshire
Posts: 282
Well I said I would up date with pictures today. So here they are,

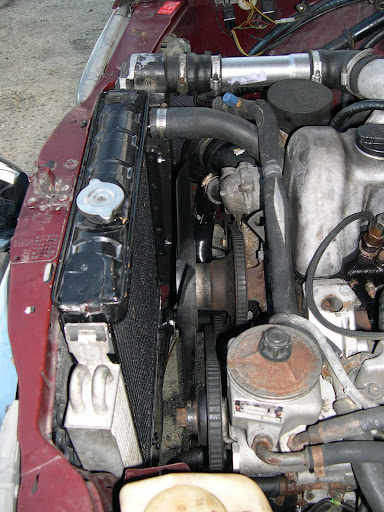

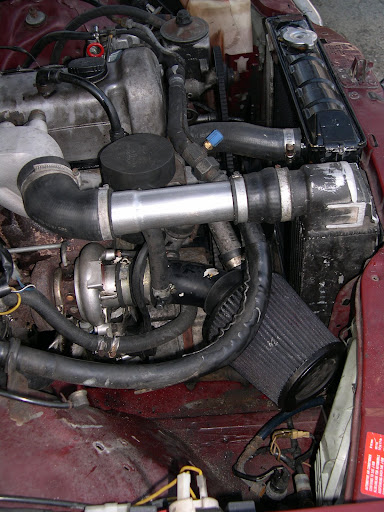

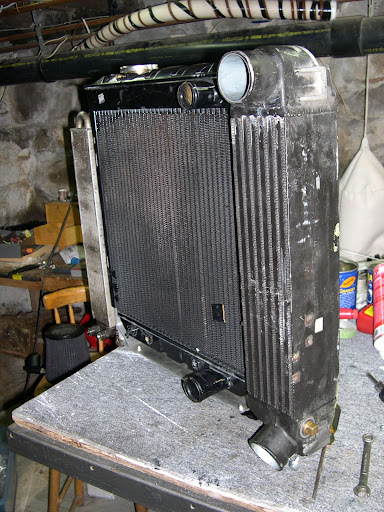

I needed a new radiator as my original one was not cutting it in the summer with the AC on. So I started looking around for radiators that would fit and also give me another 1.5in. width wise so I could fit my intercooler. I was not really sure the intercooler would fit and I had to cut off all the excess material but it fits with about 1/2in to spare.

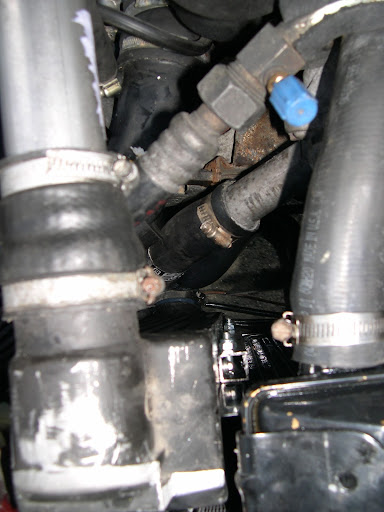

I had to make a mount for the radiator, as I wanted to use the stock mounting hose in the rad. support. I try had to make all the mods I do easily reversible so if I need I can go back with little effort. The rad. mount I made also allowed me to make an easy mount for the oil cooler. I was lucky to find the perfect lower rad. hose to go from the much larger rad. outlet to the MB therm housing.

I'm not going for ultimate power, but economy. I have been getting close to 36mpg on my commute and want to make that a little better. I have been making ~5-6psi at cruise and want to lower the inlet temp, so time for an intercooler.

The engine is very load because the intake just goes to an open filter, so I plan on finding a nice OEM filter box that will fit behind the pass. headlight. I'm hoping a volvo 940 turbo box will fit, it has a huge filter.

Enjoy the photos.





















__________________
1998 Mercedes E300TD

1983 Mercedes 240D Turbo, 131bar injectors, Cosworth intercooler and 63' Ford Falcon radiator, Ardic Parking heater, Headlight wipers, Best 38.6mpg.

1973 Saab 96 Rally Car, 1.8l V4 with all the race bits

Last edited by Graminal95; 04-12-2009 at 09:18 PM.
Reply With Quote
  #3
Old 04-12-2009, 09:53 PM
ForcedInduction
Guest

Posts: n/a
Very nice! It almost looks factory.

I doubt a Volvo box will fit, that fender has a lot less room to fit than it looks. You might consider a 1985 California filter system, its been working great for me and it fits perfect. $45/1-2years for a filter is a small price to pay for good filtration and flow.

For efficiency, you might want to swap the fixed fan for the clutched 300D 9-blade plastic fan.
Reply With Quote
  #4
Old 04-13-2009, 12:15 AM
compress ignite's Avatar
Drone aspiring to Serfdom

Join Date: Feb 2004
Location: 32(degrees) North by 81(degrees) West
Posts: 5,554

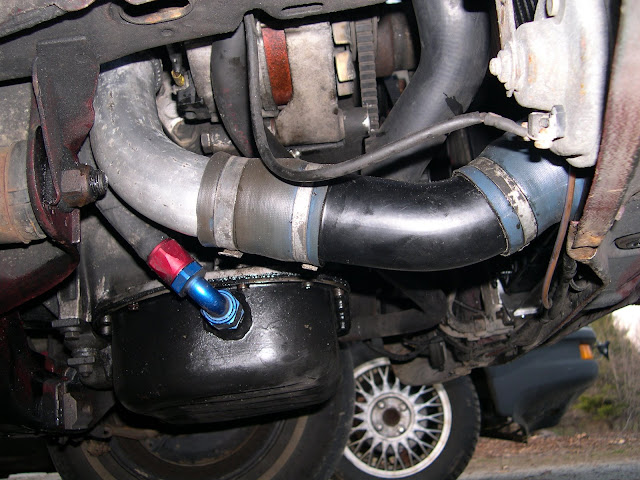

Oil Return (AirCraft fitting) Passenger Side of Sump
